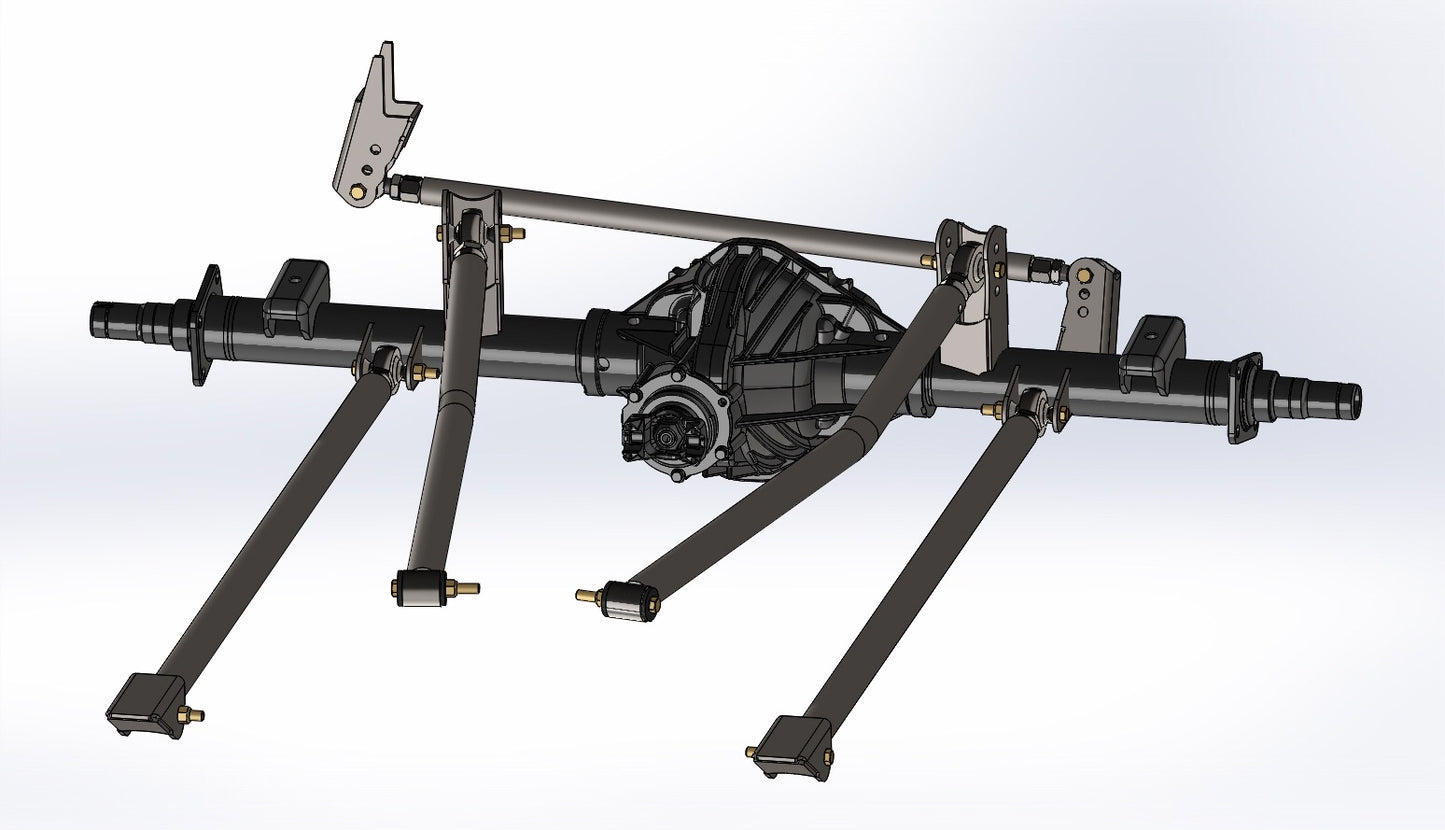

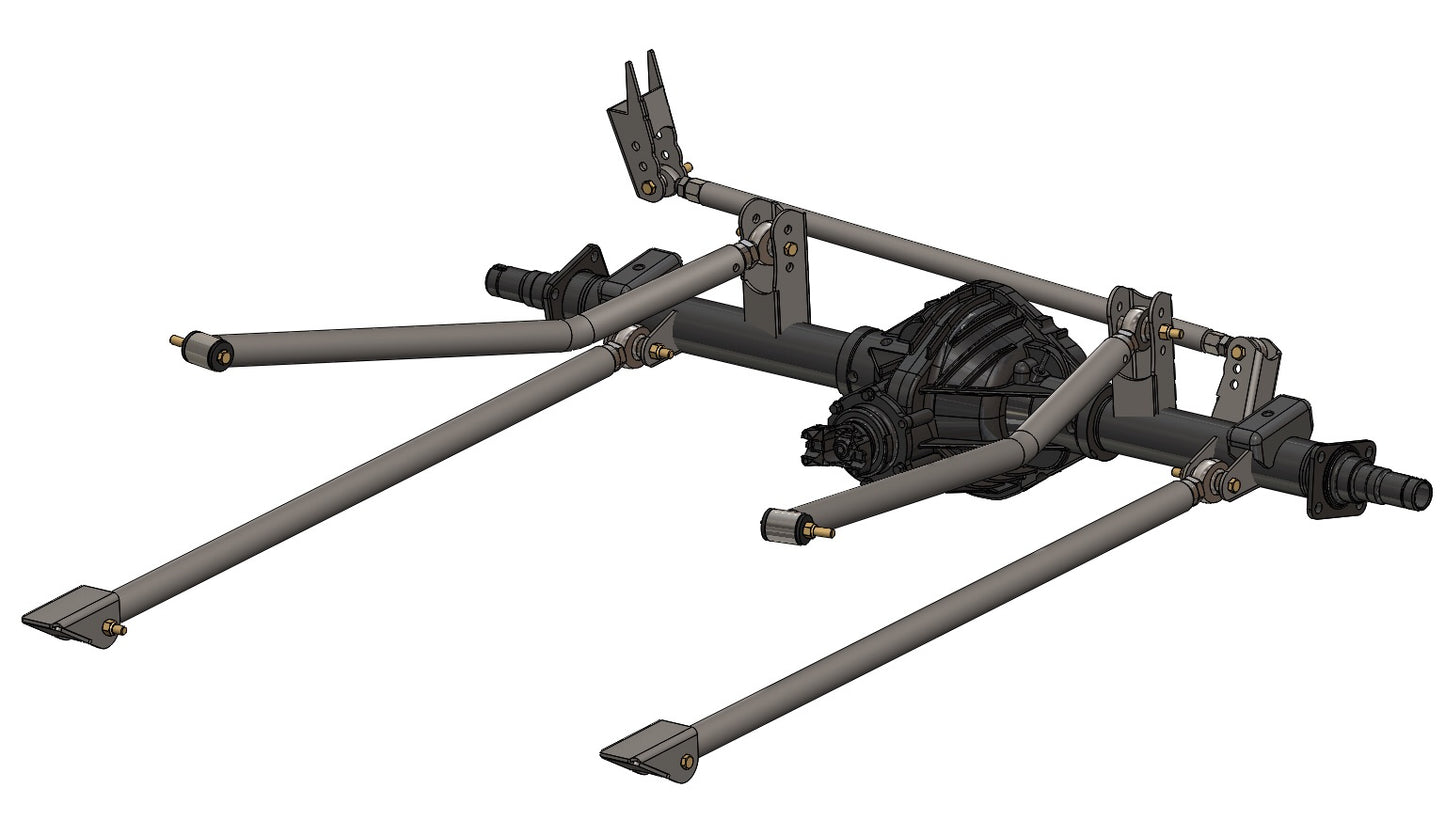

Rear 4 Link Builder Kit for full size trucks.
This kit is especially good for trucks that have a fuel tank in front of the axle and inside the frame. Great for any Dodge Ram, Ford F series truck and many more similar configurations. Totally customizable fitment. We set it up to use your original front leaf spring brackets as the upper link mounting point. Can be made to drop very low or be comfortable over a large tire like a 38-40. Whether you are wanting to build an air suspension or a Coil or coil over rear, this is a very good candidate to start from. These kits require welding and fabrication. Includes everything to locate your axle.
Kit includes from front to rear:

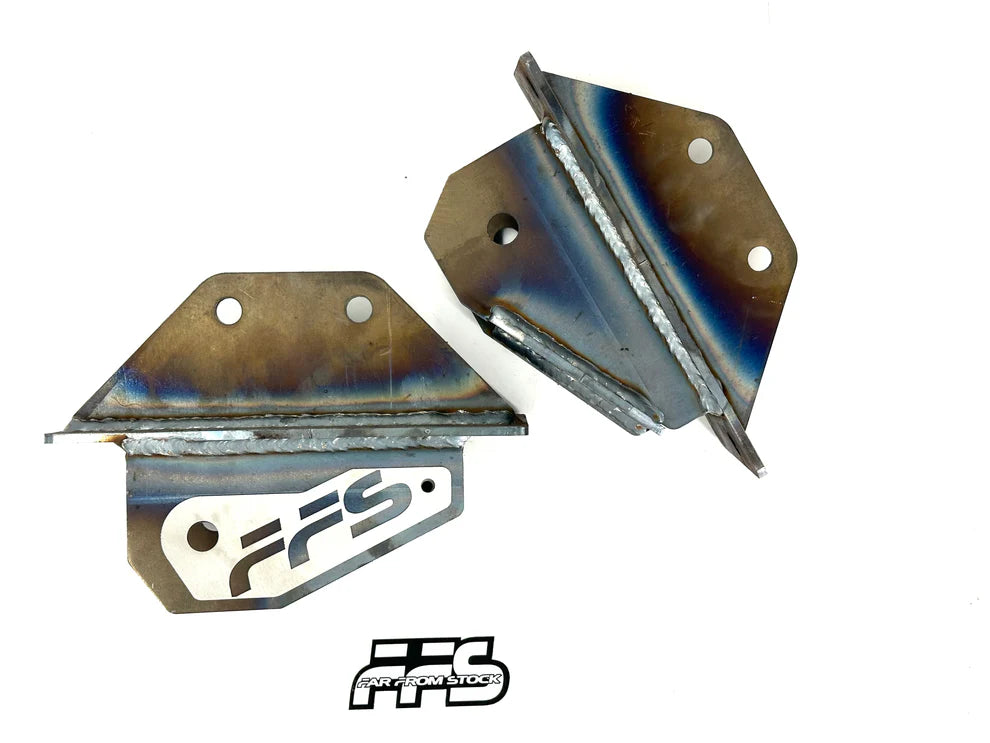

• Qty 2 - FFS Frame Mount Chassis Link Brackets
• Qty 2 - 4.0 axle mount 0-degree lower link mount
• Qty 2 - 10-degree adjustable upper axle mount link tower
• Qty 1 - Axle offset track bracket
• Qty 1 - Frame inside track bracket (optional frame outside)
• Qty 2 - 60-inch 2-inch .211 wall tube
• Qty 2 - 2inch by .211 wall pre-bent 18 degree 44 inches long
• Qty 1 - 54" 1.5-inch .250 wall track bar tube
• Qty 4 - 1.25 tube adapters
• Qty 4 - 1.25 rod ends
• Qty 4 - 1.25 jam nuts
• Qty 8 - 1"x 9/16 standard misalignments
• Qty 2 - 7/8 tube adapters (right/left pair)
• Qty 2 - 7/8 rod ends (right/left pair)
• Qty 2 - 7/8 jam nuts (right/left pair)
• Qty 4 - 7/8 x 9/16 standard misalignments (2" wide)
• Qty 4 - 9/16 fix it weld washers
• Qty 4 - 2-5/8 Standard Bushed DOM ends (4 outer 4 inner 8 rubber bushings)
• Qty 4- 2" diameter 1/4" spacers (10236)
Note: All products are made to order. Custom-fit items may take longer to ship. For questions about shipping times, please contact us—we’re happy to help.
