Track Bar Kit (DIY)

Track Bar Kit (DIY)

$207.11
$207.11 $0.00

Expected delivery date:
27 Dec - Custom Parts can take a bit longer, reach out to us if you need it faster. We will do our best to accommodate your build.

Track bar kit for your custom suspension. Front or rear, but if you do rear and want the frame end on the driver side you will need to modify the offset axle bracket a little to use it “backwards”. Lots of options.

Frame outside bracket, perfect for C frame rails and getting that long length needed to mimic the drag link.
Forward offset axle bracket to free up space for you bags or Coil overs.
We can switch those if needed to other brackets, but this is pretty commonly the right setup.  You often won’t know till you get pretty far into your suspension.

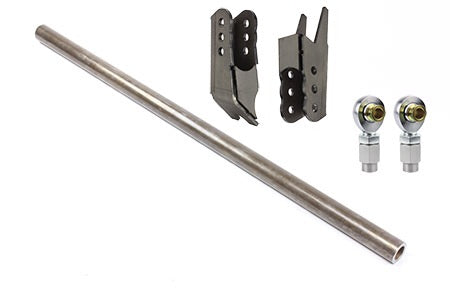

You will receive:
  • 54"of DOM tubing 1.5" O.D. X .25" wall
  • Brackets for the frame outside and offset axle
  • 1 pair of 7/8" Heat Treated Heims
  • High Misalignments (Standards) with a 9/16" Bore
  • Hex Head Weld Bungs for faster adjustment
  • 2 - 9/16” 3.5” Grade 8 Bolts and Lock Nuts
Note: All products are made to order. Custom-fit items may take longer to ship. For questions about shipping times, please contact us—we’re happy to help.
