Reamer Tool for Pitman and Knuckles

Reamer Tool for Pitman and Knuckles

entries
$107.00
$107.00 $102.00
Expected delivery date:
21 May - Custom Parts can take a bit longer, reach out to us if you need it faster. We will do our best to accommodate your build.

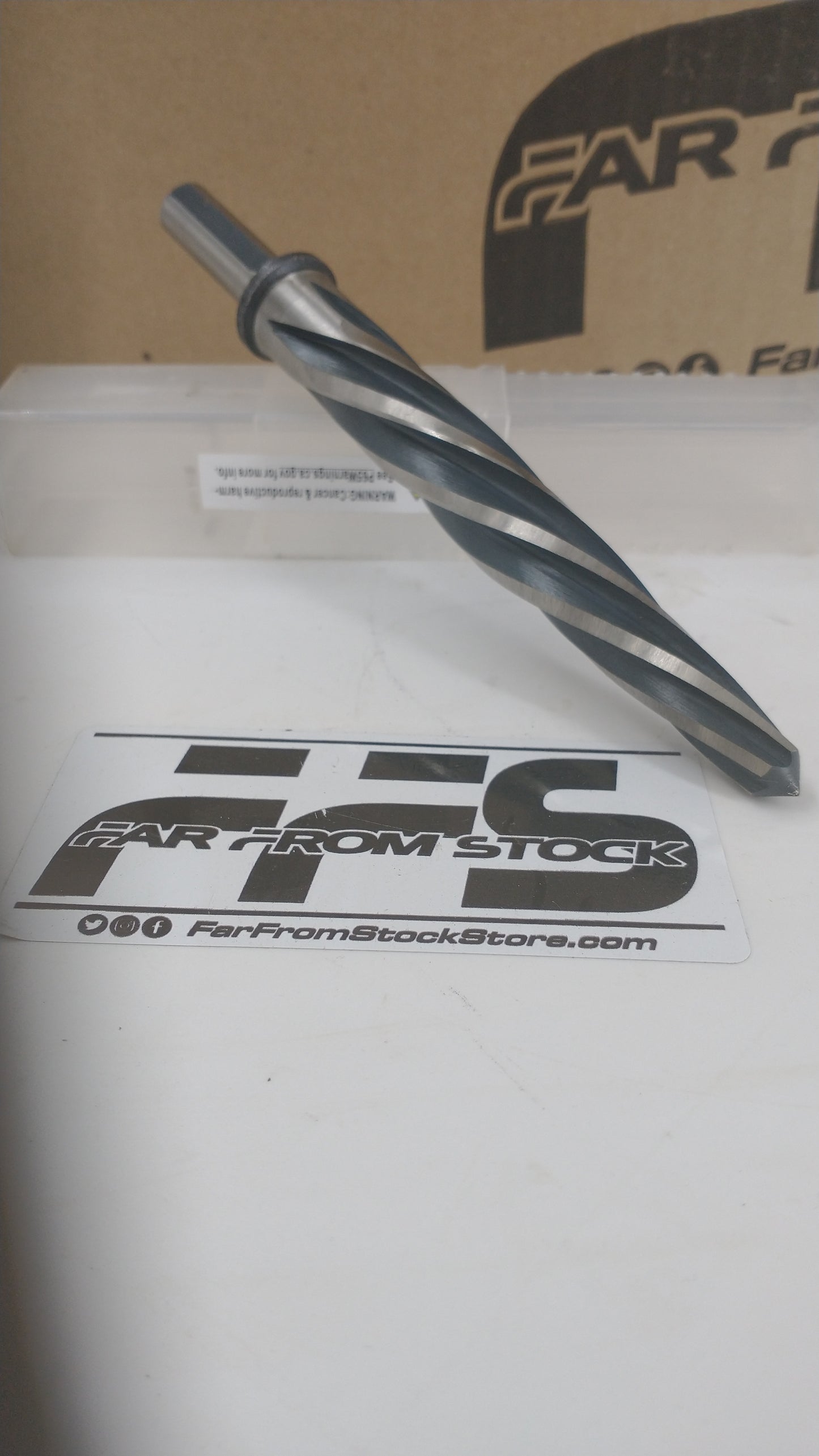

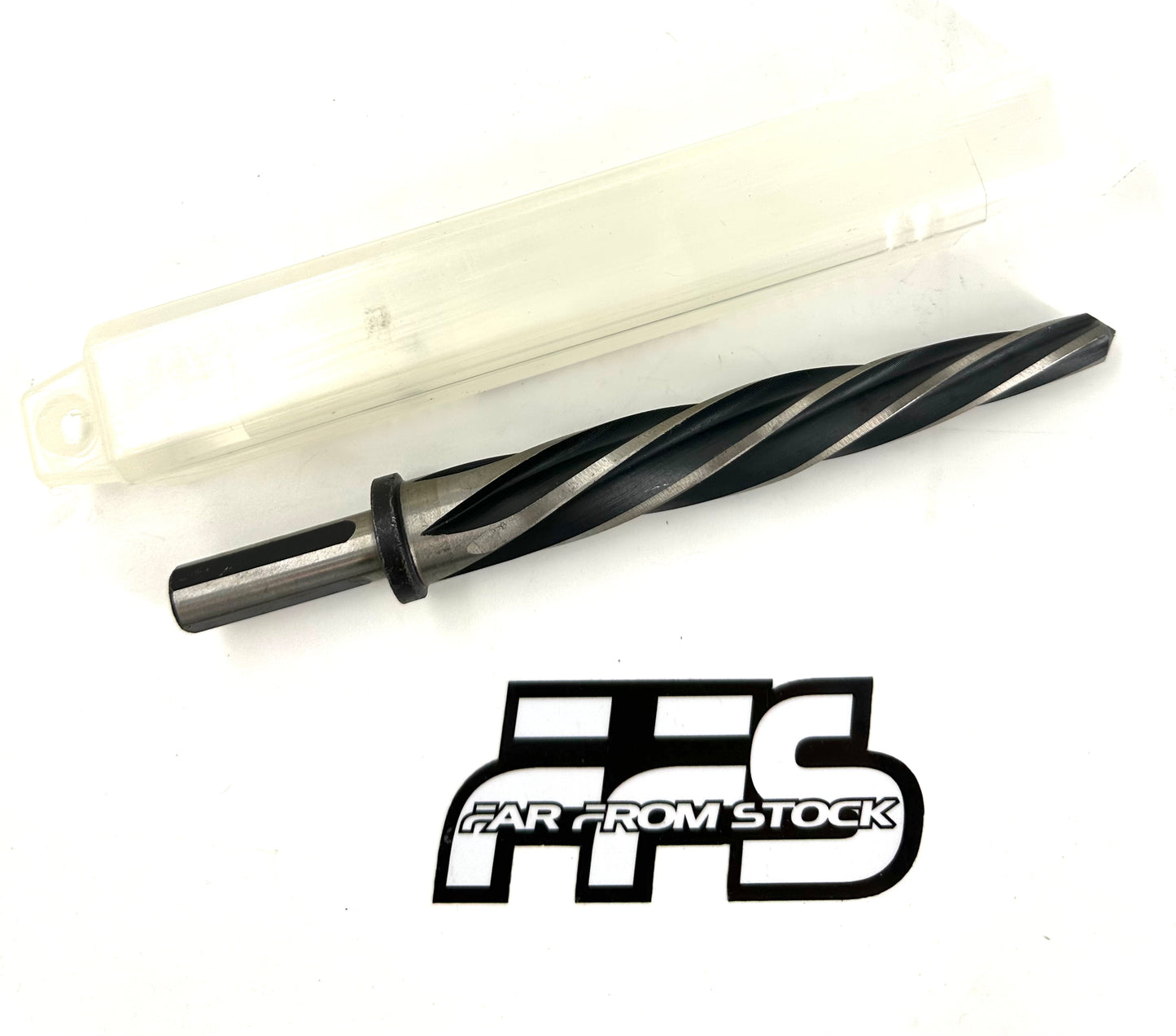

Reamer Tool used to take tapered holes to 3/4" Straight holes for all FFS steering kits. Much easier to drill through the knuckles, but especially the hardened pitman over a standard style drill bit.

REAMER INSTRUCTIONS:



   Using a reamer, rather than a standard drill bit, to drill out your knuckles or your Pitman arm, from a tapered hole to a straight hole is very easy with this bit. It keeps the bit from grabbing and jerking the drill as much. You still need a firm grip and keep the drill straight, but with your average 1/2 cordless drill or better this should be an easy job.

   We recommend starting with the knuckles, and finishing with the pitman, because the knuckles are almost always a much softer material then a hardened pitman arm.
   We find it easier to start with the smaller end of the hole on your part to be drilled rather than fitting the bit in the existing taper, but either way can work.
   Use the bit at a medium to low speed. High speed can work, but it’s easy to tear the bed up with too much heat.
   Keep the bit square and perpendicular to the surface you are drilling so it’s straight and true.
   If you mess it up a little and it’s crooked, just do what it takes to straighten it because it is not absolutely necessary to have a super true fit to the bolt through the knuckle. Bolt tension will hold it in place.

Having issues drilling?
Yes, in many of our videos or directions, I do explain that the knuckles are soft and easy to drill and that Pitman arm is much harder material. It is common for someone to want to take it off the truck and put it in a drill press to accomplish this however, I almost never do. With a little slower RPM It’s not a problem.
I have never had to use more than one bit on a truck so I would assume you are hurting your reamer with speed and temperature.
Note: All products are made to order. Custom-fit items may take longer to ship. For questions about shipping times, please contact us—we’re happy to help.
