19-25 Ram 5th Gen Steering System - Tie Rod / Drag Link / Track BAR

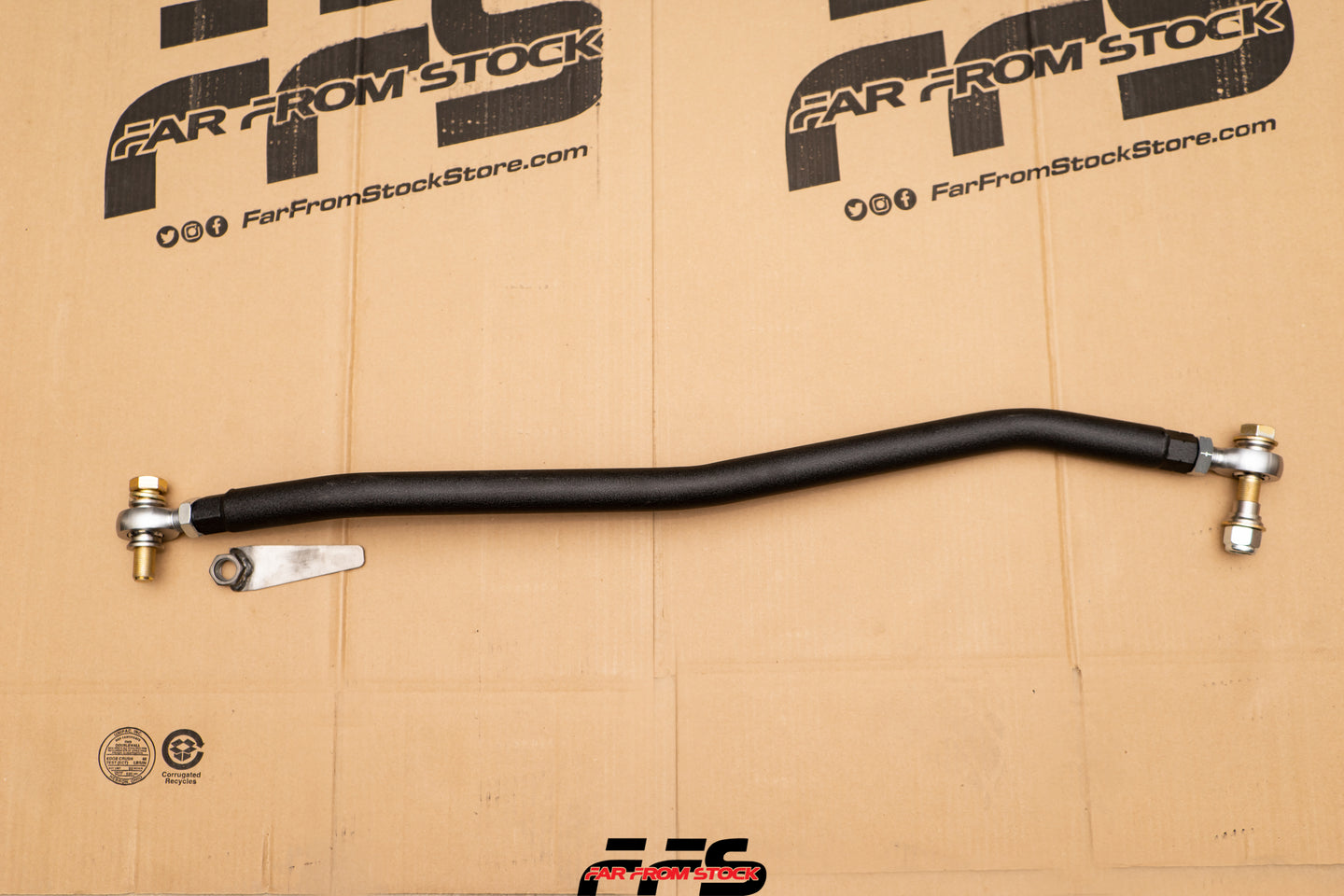

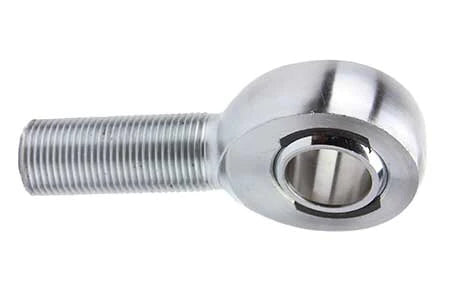

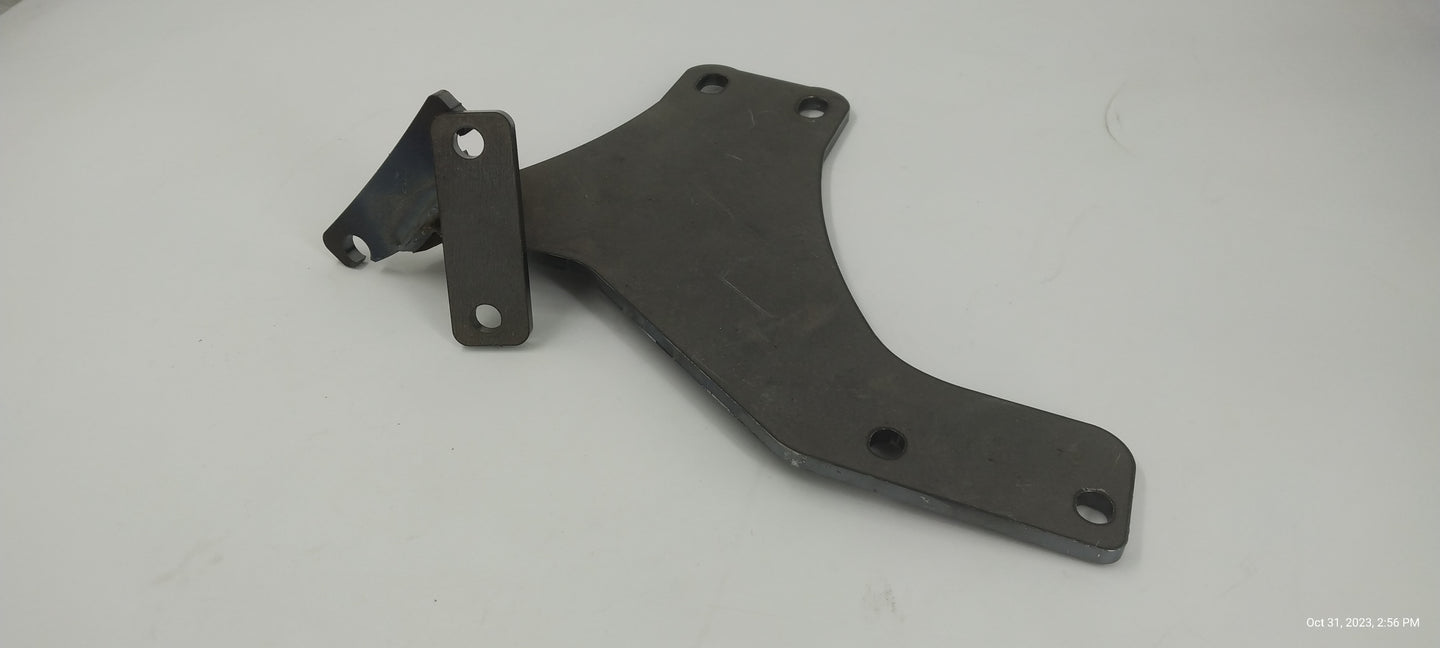

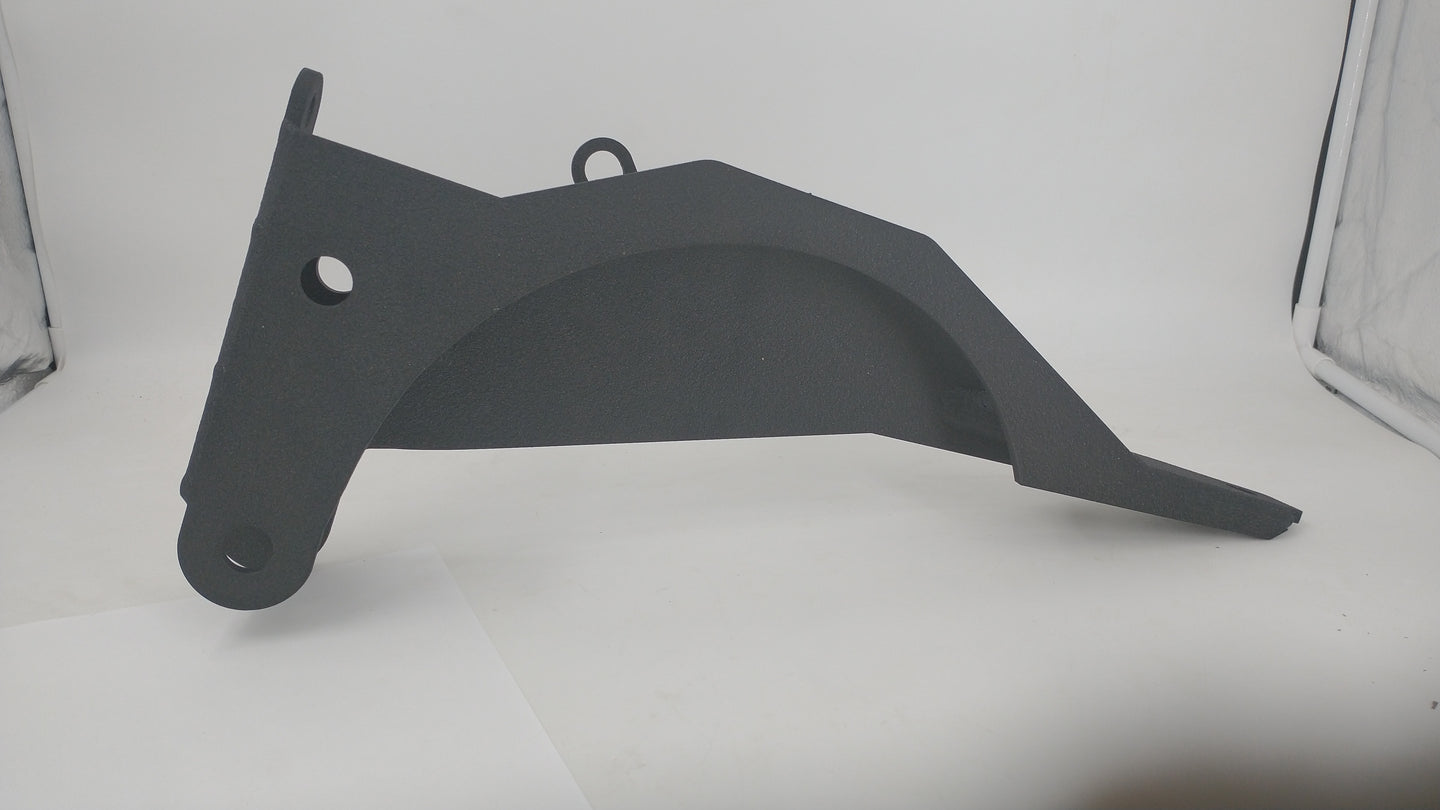

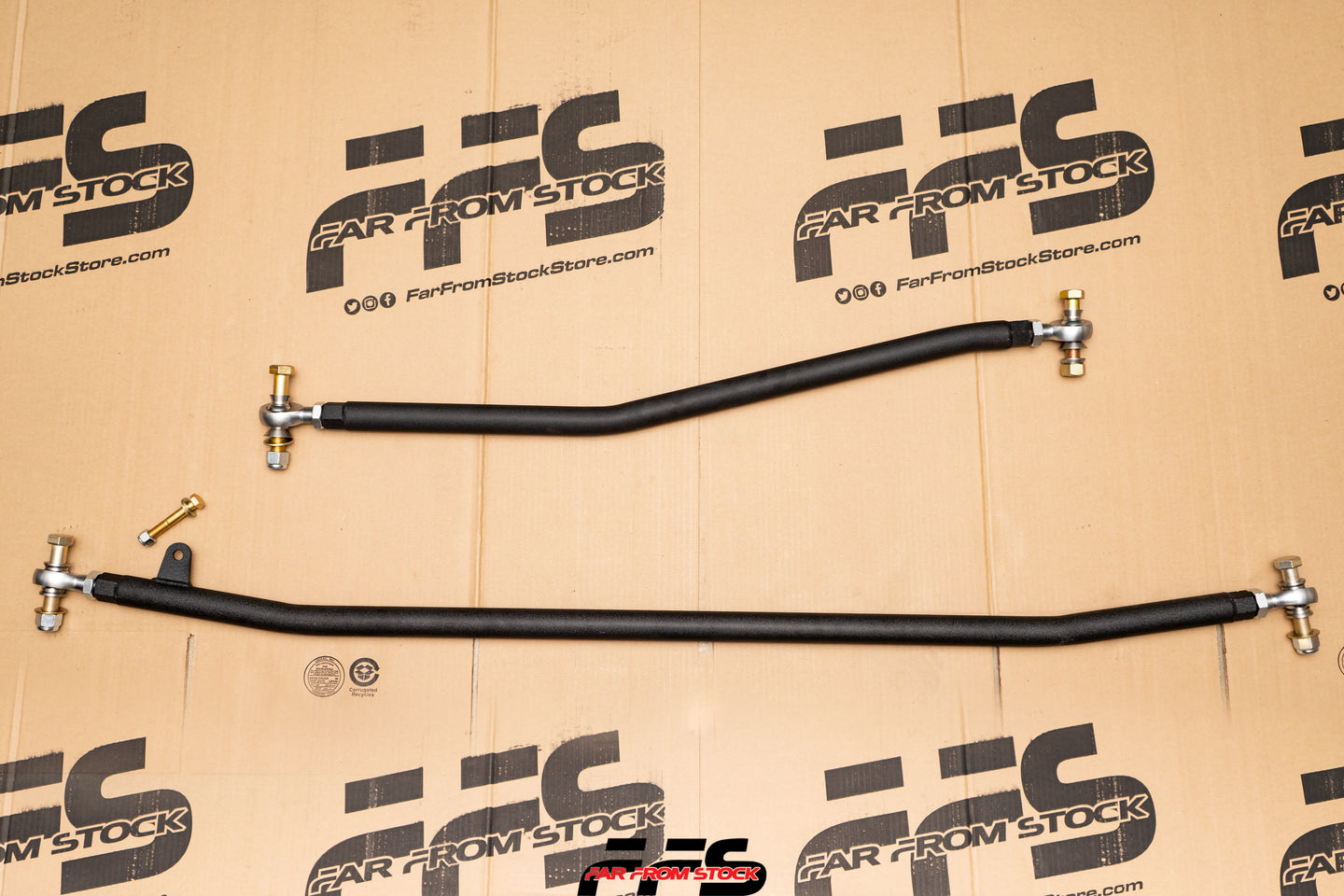

Monster strong 1.5” .250 wall DOM tube tie rod and drag link and adjustable track bar combo for your ram truck 2500 and 3500 from 19 and newer with 7/8 heim joint style rod ends to replace the wear prone original tie rod ends. Requires drilling knuckles (recommended reamer tool) and pitman to a straight 3/4” hole. Optional rubber boots available separately for areas with salt and brine on roads. Options for stabilizer mount and customer powder coating but includes mount for stock stabilizer in stock location and black wrinkle powder. This kit is designed to improve your stock height, or up to 4” lifted or leveled truck, or, add our track bar drop bracket to work with a truck with 5"- 10” of lift or more, or an adjustable suspension like our long travel air kit, allowing this system with drop bracket to travel without bump steer anywhere in a drive able height from below stock height to max droop. Our drop bracket is engineered to use wider than stock mounting width for the rod end for a higher level of possible misalignment. This makes diff clearance more possible and also keeps the frame end rod end from binding and potentially wearing out prematurely.
Our 4g 5g steering kits require using a stock pitman.
