1972-1993 Diesel Radiator install kit
This is the install kit parts and instructions to fit a 91.5-93 mishimoto (or oem replacement) cummins diesel radiator in an earlier core support and/or gas core support.
Click here for the radiator itself.

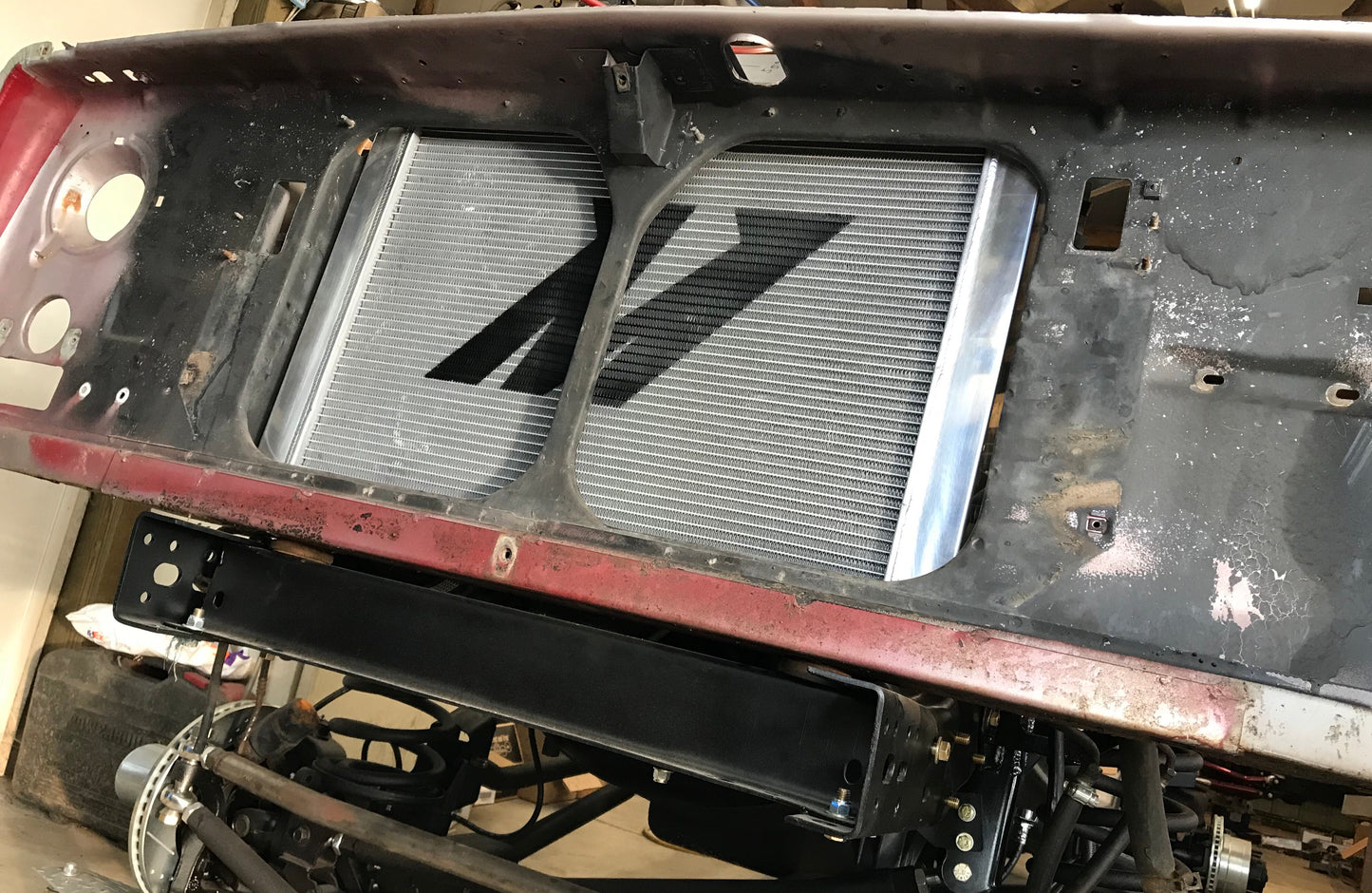

Specifically designed to upgrade the radiator in the 89 and up non Intercooled Cummins trucks or add a diesel radiator to gas core supports back to 72 if doing a diesel or other modern powertrain swap. The 89-91 diesel can reuse the original fan shroud with minor mods, or it can utilize a 91.5-93 shroud.

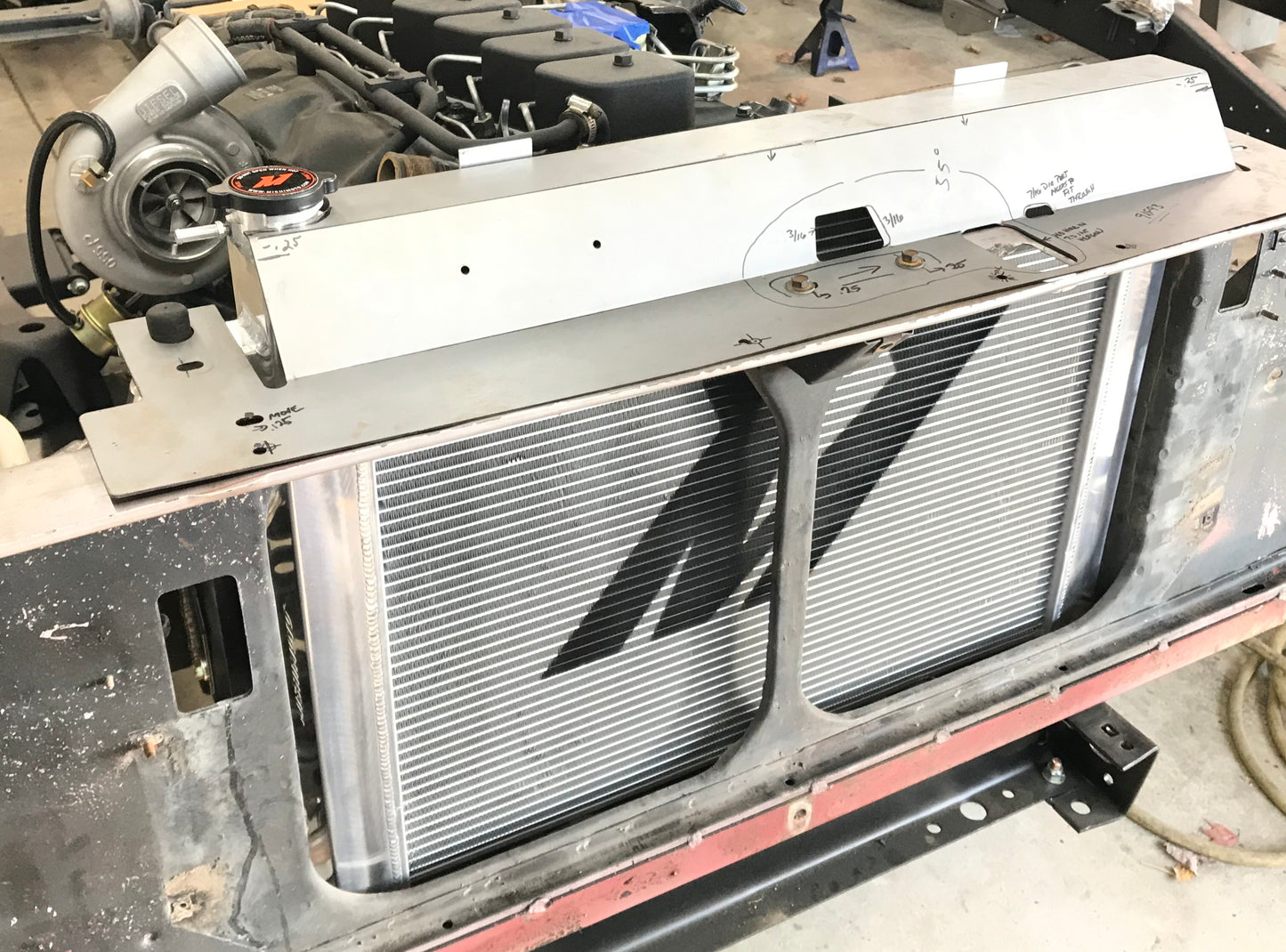

One piece radiator cover top plate is the mount for the upper radiator. (available in drop down below with or without hood safety latch hole for those of you using our big intercooler kit, as the big intercooler eliminates the ability to use the stock hood safety catch).
It will mount over the grill (shimming under grille can help if you want to fine tune hood to grille alignment)

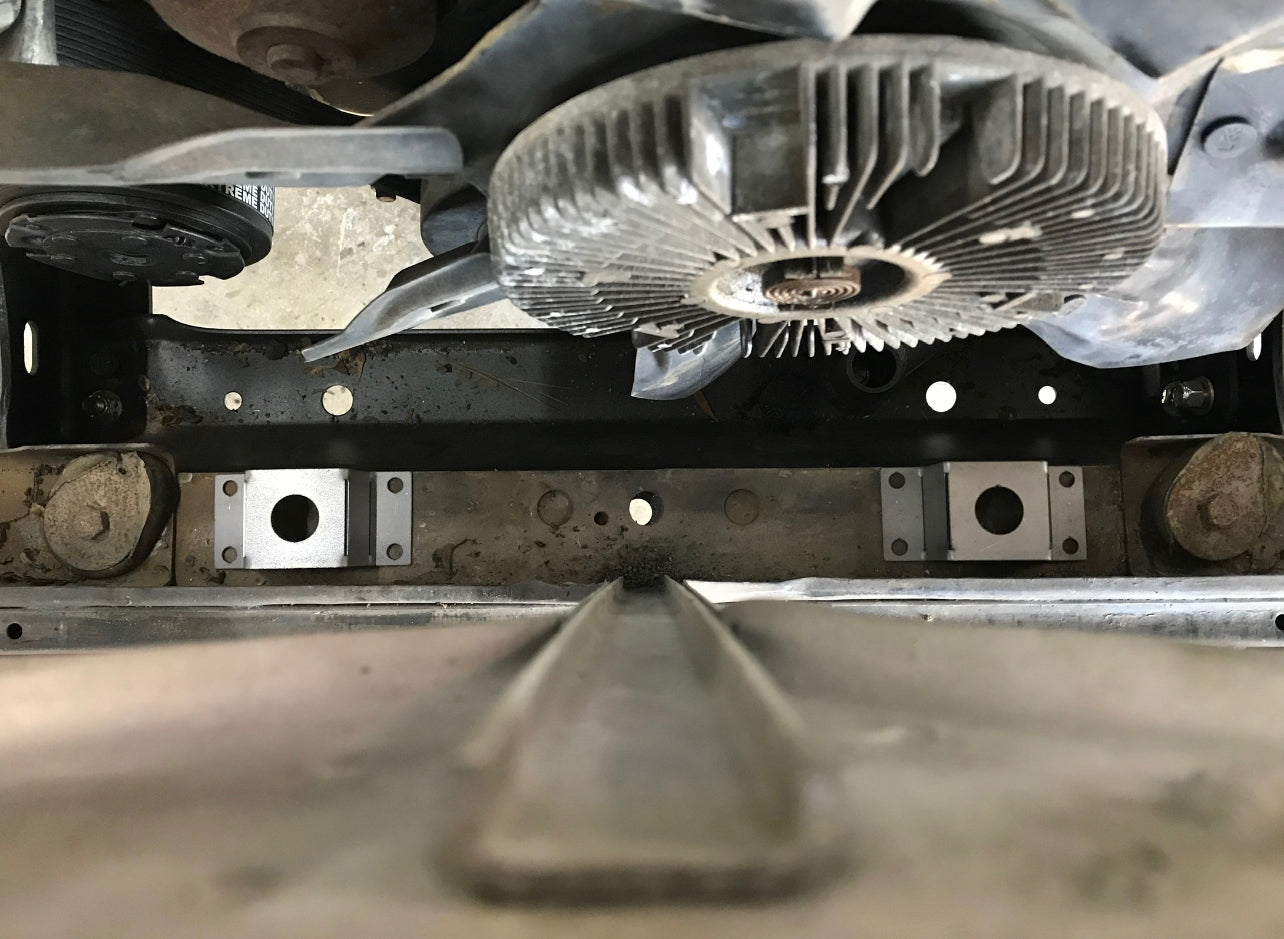

Lower mounts have pre-cut holes to spot weld but can also be temporarily (or permanently if you wish) held in place with self tapping screws (pre drilled due to the thickness of the material). Center in support when installing. Many supports need a very small trim at the top rear bracing to allow radiator gusset to clear.

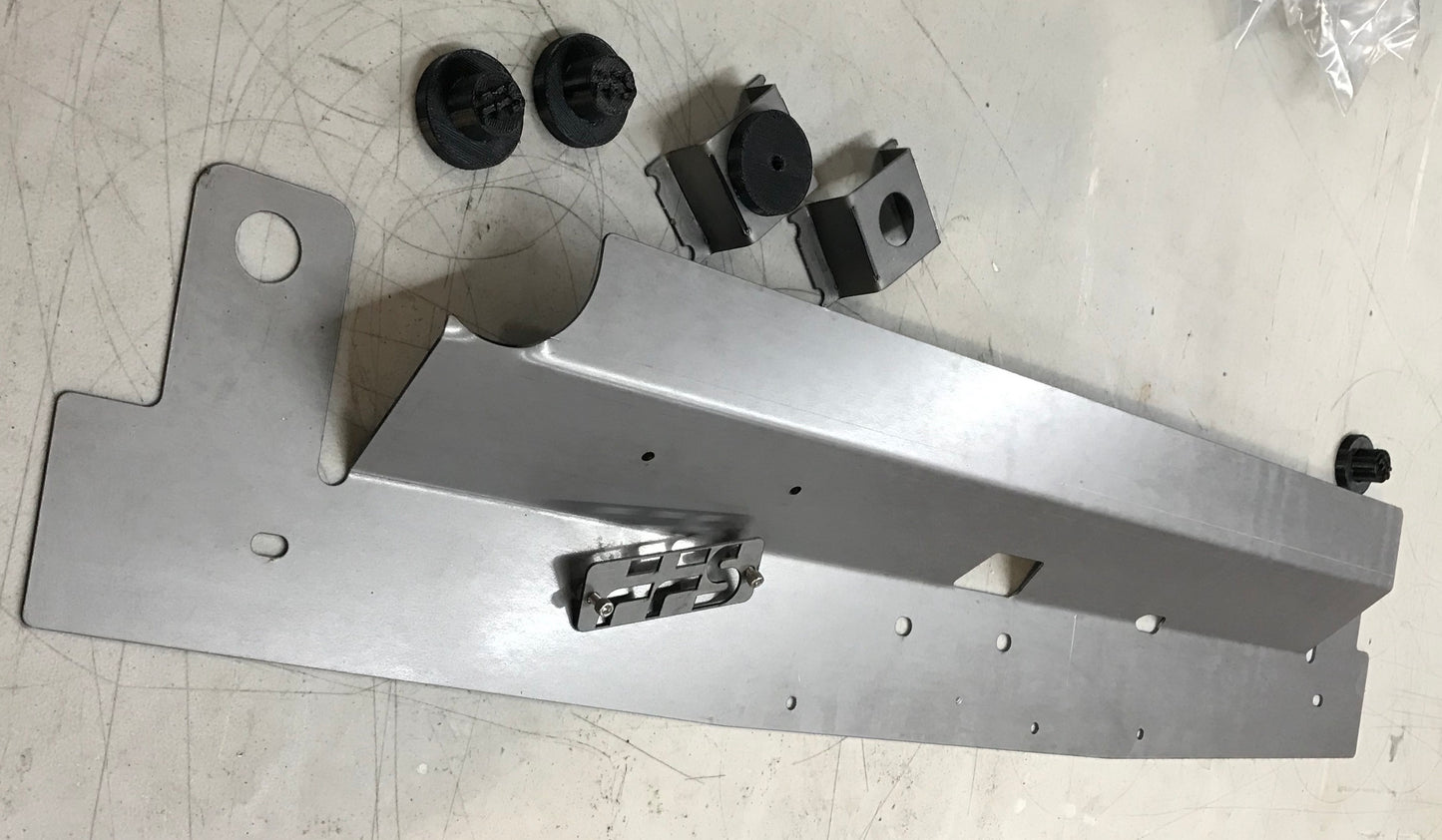

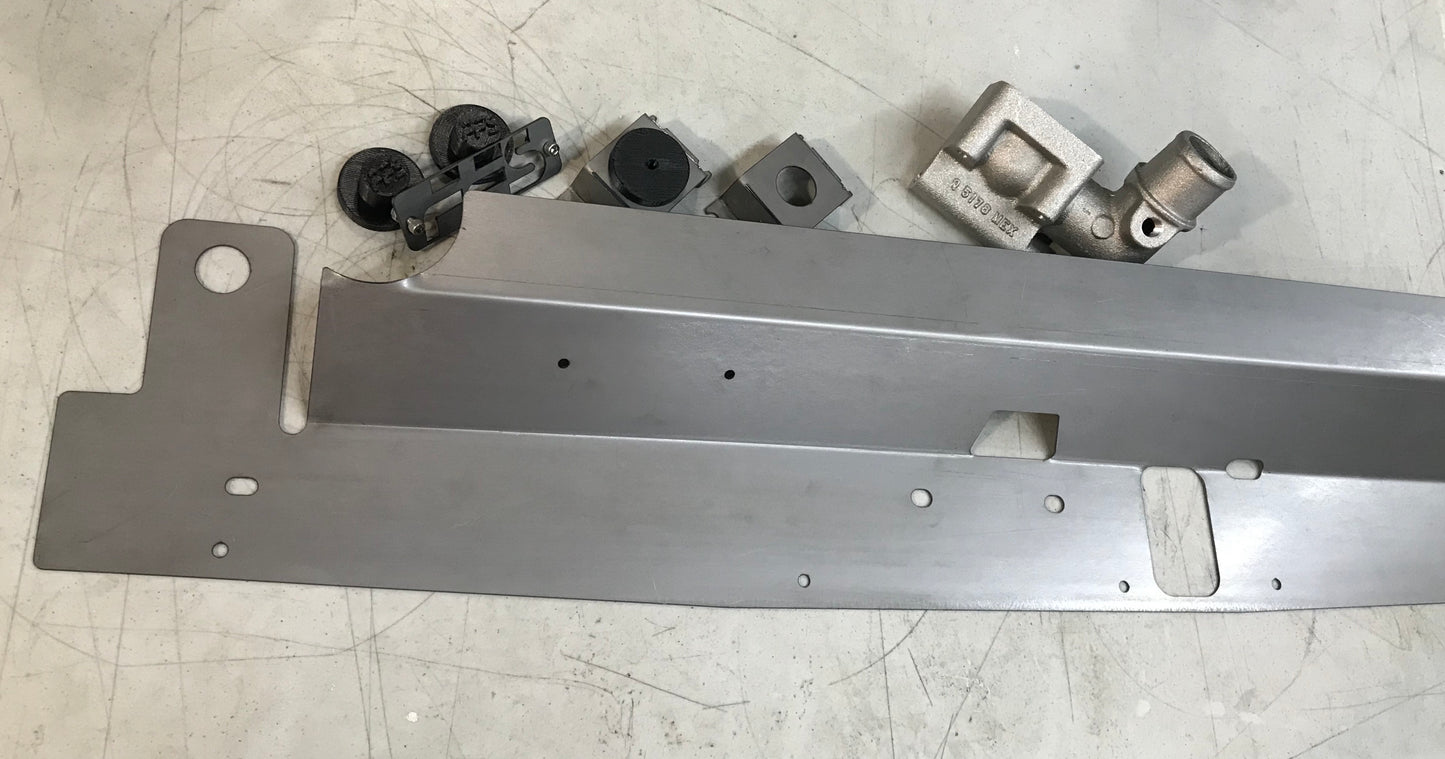

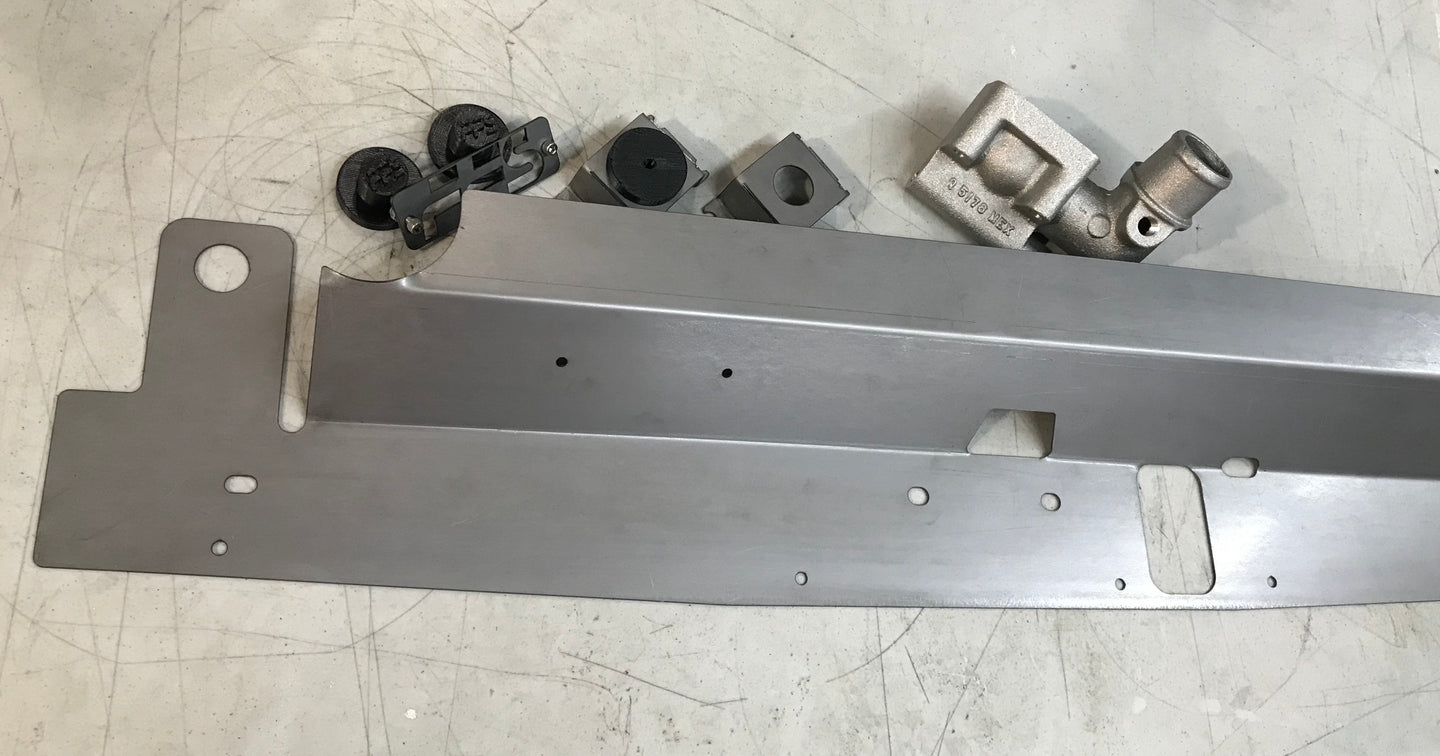

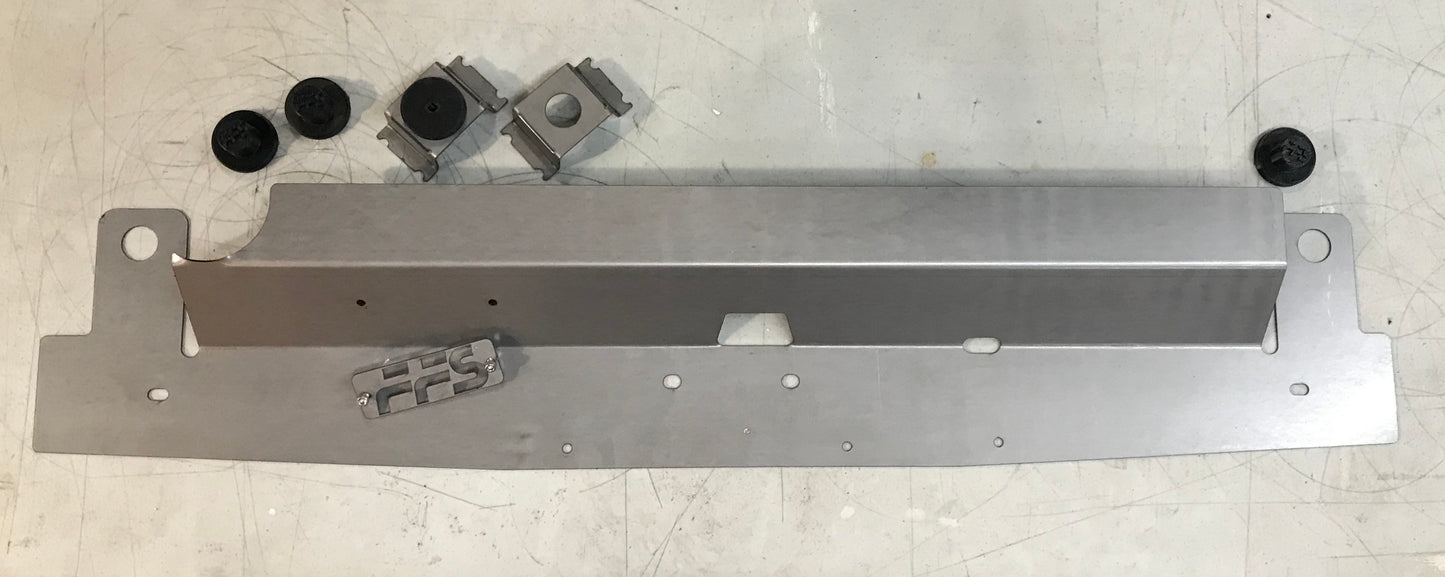

This kit includes;

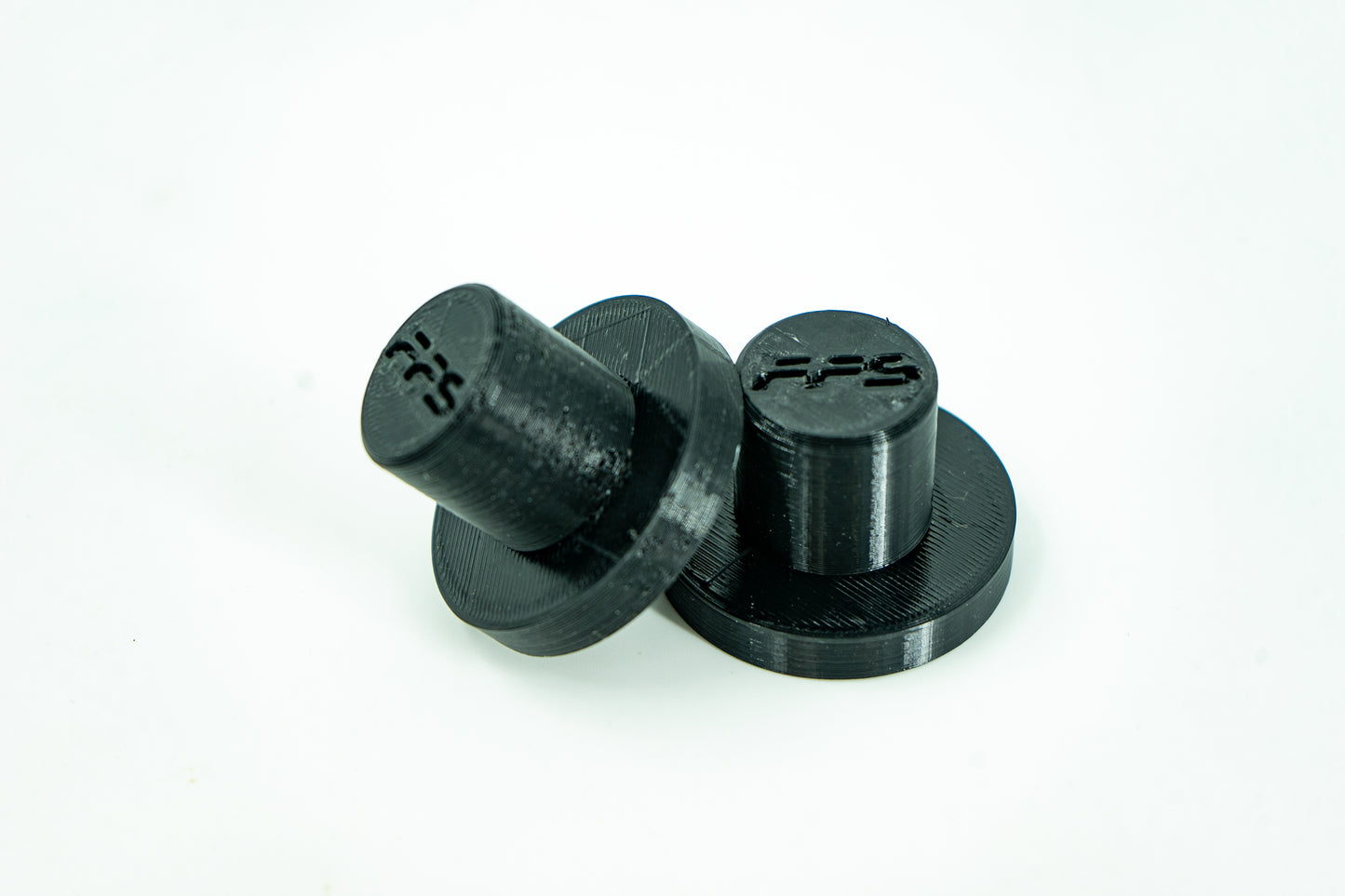

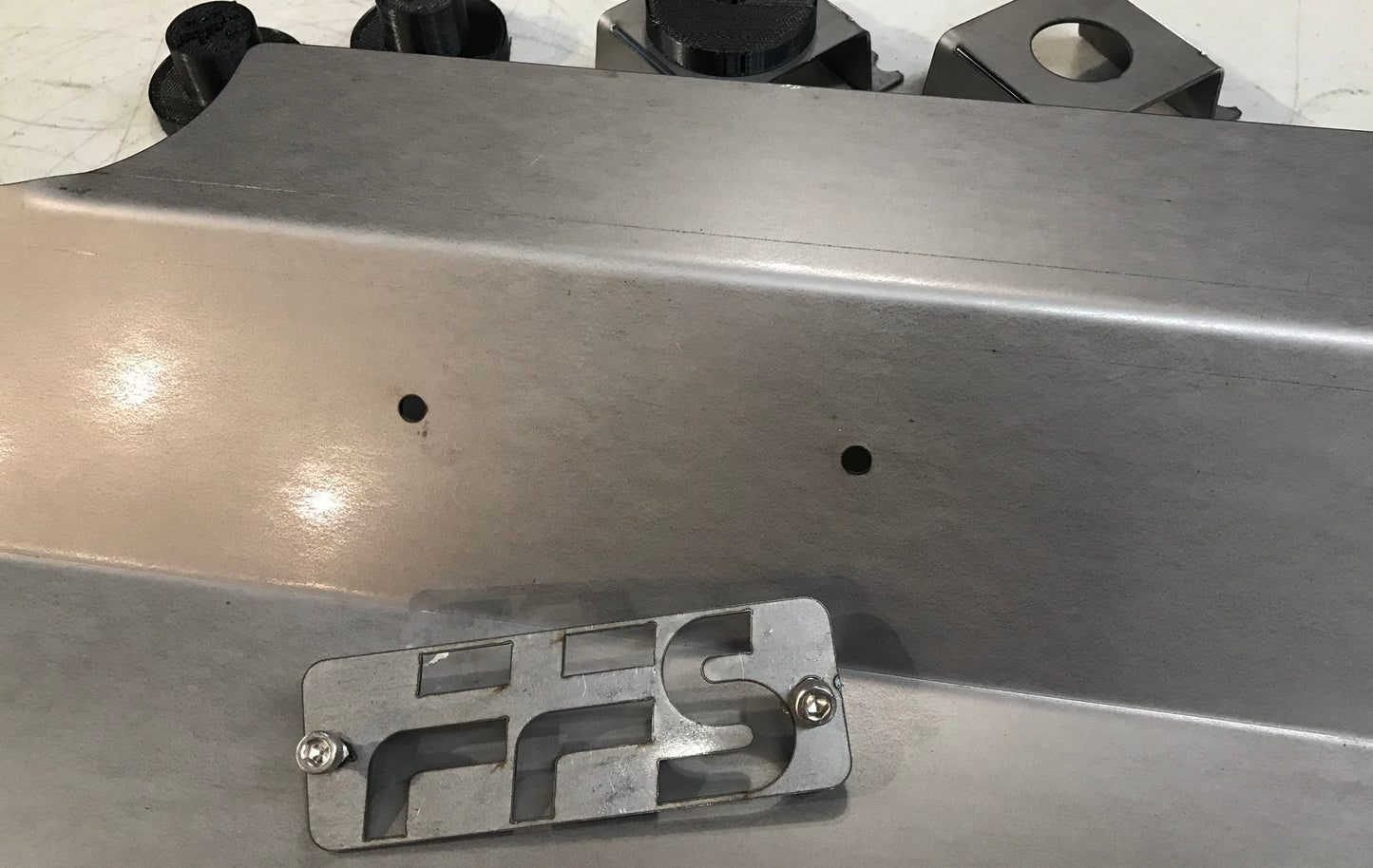

lower steel mounts, upper mount/rad cover, 4 rubber grommets for radiator isolation, badge and badge hardware.
