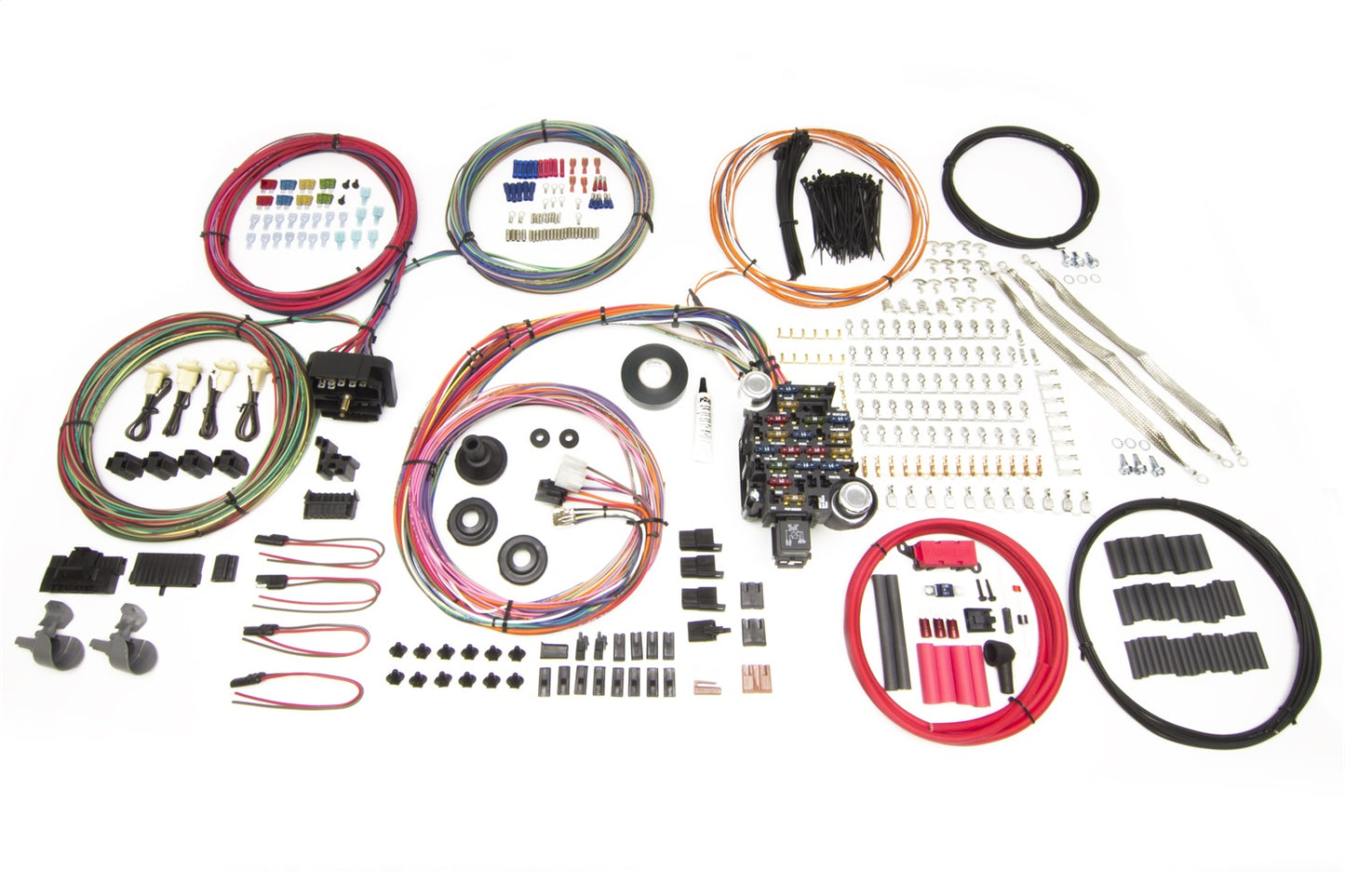

72-93 Dodge Truck Firewall Kit Option Painless Performance 27-Circuit Classic Plus Truck Wire Harness
This is the wiring harness we use to upgrade or replace the original wiring harness in your 72-93 Dodge truck based on our 1 piece firewall mod plate.
It is a universal Painless Performance Products 25-circuit Wiring Harness.
It is a GM based harness that includes a new bulkhead and fusebox that fits our bolt on firewall plate. The new fuse box will be located in the cab on the firewall in a new location able to be serviced.
It can allow you to delete the original useless computer on 91.5-93 diesel trucks. (Probably just as handy with gas magnum trucks too if going with aftermarket fuel injection).
It will be labeled for some items on a GM vehicle that do not exist in all applications but is extremely universal in nature. The stock column can be utilized by saving the stock column harness and adapting it, or an aftermarket GM column can be bolted in. Stock or aftermarket heat/cool capable, stock or aftermarket power window/ lock capable.
We do use an aftermarket gauge cluster set that works with your factory dash bezel.
A reasonable grasp of electrical wiring as described by painless performance will be necessary to figure out all wiring details and options.
-
Truck Chassis Harnesses
This 27 circuit Painless wiring harness was designed to fit the trucks. It features a factory style bulkhead connector, allowing for easy mounting of the fuse block in the factory location, and has many of the factory connectors already installed on the harness out of the box. Including connectors for: the headlight switch, dimmer switch, wiper motor, ignition switch, blower motor & switch, blower resistor, and instrument cluster. Each wire is custom printed with the circuit identification as well as using GM color codes for easy installation. Wire your truck once and wire it right with Painless! This harness does not support factory installed TBI fuel injection or computer controlled carburetors. * Doesn't support rear power glass, rear defrost, or rear A/C/Heat - many of these items are separate from the OE chassis harnessSpecifications:
Part TypeProduct LinePackage Depth6.70Package Height15.50Package Width10.60Part CategoryPerformance PartsPart FitmentSemi UniversalShipping Weight14.45Vendor Part Number
