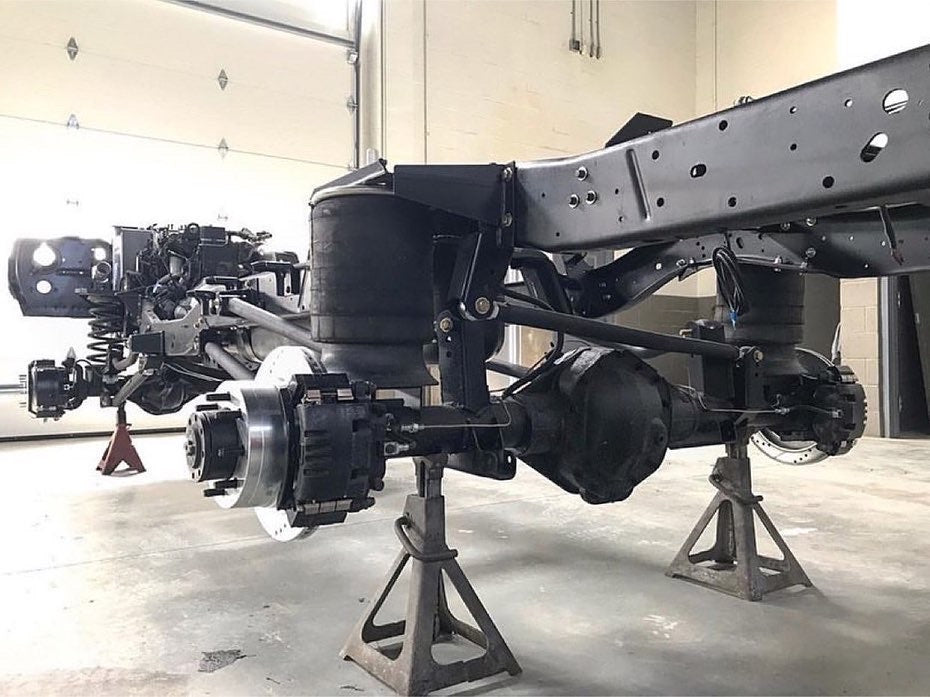

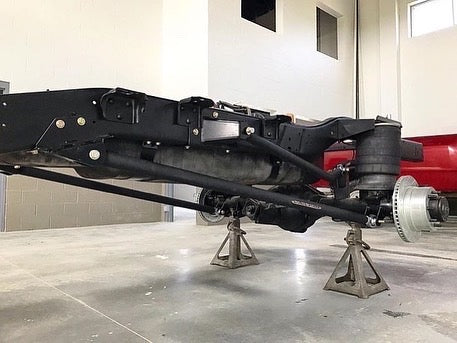

72-93 Rear Axle Swap Air kit ( 03-13 3rd gen axle) Standard Travel



 This is a ever so slightly tuned down version of the rear half of our first gen long travel air suspension. It’s designed to be a perfect compliment for our front 3rd gen axle swap coil conversion. This system uses our biggest diameter bags for easy load handling at very low air pressure. Great for a hard working truck. You will break the axle or bend the frame before you tax these bags. Incomparable ride quality and towing capacity to a leaf arrangement. It will ride great empty or loaded and stay at the same ride height regardless of load when setup with a leveling valve or electronic management system.

Welded upper and lower links with big 1.25” chromoly heat treated heim joints for the axle end and bushings for the frame end

Welded track bar with 7/8” premium heim joints and high misalignment spacers.

Bolt on (some drilling) frame big bag mounts with integrated track bar bracket,

Bolt on (drill) upper and lower link frame brackets,

axle (weld on) link mount bracket set,

axle (weld on) track bar bracket and lower bag brackets,

Air bags,


34 7/16

8 4.6 9/16

2 3.5 9/16

6 3/8

Also needed;

Shocks . We offer Bilstein and Fox


Power coating (add 100)


Shipping calculated  and billed separately after sale.
