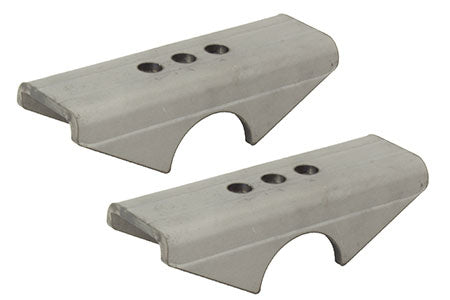

Dana 30 / Dana 35 Spring Perches, 2.5" Wide

Dana 30 / Dana 35 Spring Perches, 2.5" Wide

$47.00
$47.00
entries
Expected delivery date:
29 Mar - Custom Parts can take a bit longer, reach out to us if you need it faster. We will do our best to accommodate your build.
    INCLUDES:
  • 2-Perches for one axle
    DIMENSIONS:
  • Axle diameter: 2.5"
  • Width: 2.5"
This is one of our fairly basic items, but it isn't quit e that basic. Here's what you want to know: these are .25" (1/4) HR P&O Steel Plate, CNC Laser Cut and then Folded on a 290 ton CNC Brake to final size. Length is 8.0" to help control axle wrap and 2.5" wide to provide a stable platform. They have 3 spring pin mounting options so you can adjust your wheel base if you wish and are cut to fit a 2.5" axle tube (D30 / D35), they are easily adjustable .25 up or down in tube size in minutes with your grinder. Sold in pairs.
Depending on your D30 one side of the perch will need opened up to 3 3/8 to get around the casting
These are for spring over applications
Note: All products are made to order. Custom-fit items may take longer to ship. For questions about shipping times, please contact us—we’re happy to help.
