94-02 Ram FFS Brand Heavy Duty Traction Bar Kit


   These parts are to build a hardcore, heavy duty, no rattle and good looking traction bar set for your 2nd gen leaf spring Ram truck. 1500/2500/3500 2 or 4wd. (Built to match our 2g radius long arm kit). Includes bolt on frame bracket.
   We’ve seen all kinds of weak and undersized parts and ugly brackets, this is not that kit. Tubing available in 4’, 5’ or 6’ for cut to length perfect fit.  5 feet covers most installs. Pre made link (custom length request ok) options available below.

If you have had problems with the rear axle wandering and wheel hopping under the heavy torque, be it in the sand, dirt, or putting down a thick smokey burnout on pavement, this kit is a solution for you. It features a pair of arms that firmly locate your axle, and help you keep your tires firmly planted. This will let you put all the traction you have to the ground without giving up any suspension travel or ground clearance.
  Even without traction problems, these with firmly locate you rear axle and prevent rear wander due to road imperfections, not something you likely thought about but would notice if you later remove your bars. Remarkable difference.

   These work great in conjunction with a rear lift block, increasing the traction bars leverage against axle wrap, making a strong triangle between them, your lift block and the leaf spring acting as an upper arm.

KIT INCLUDES: (click for separate availability)

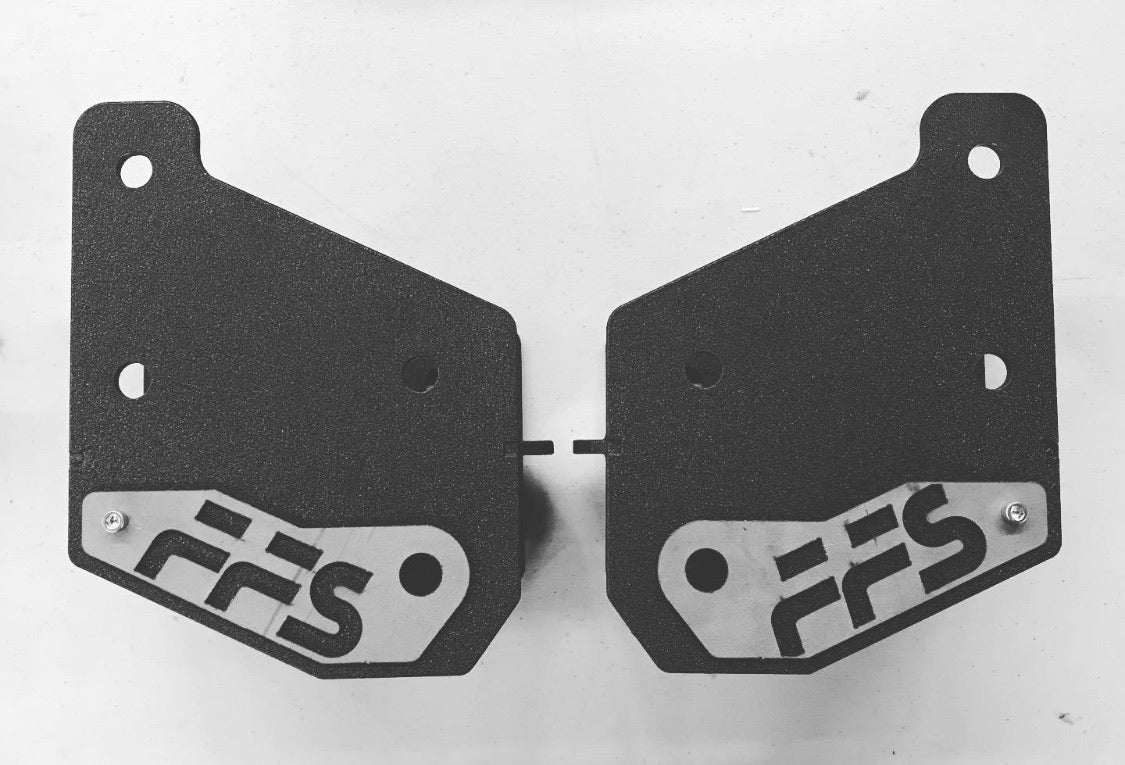

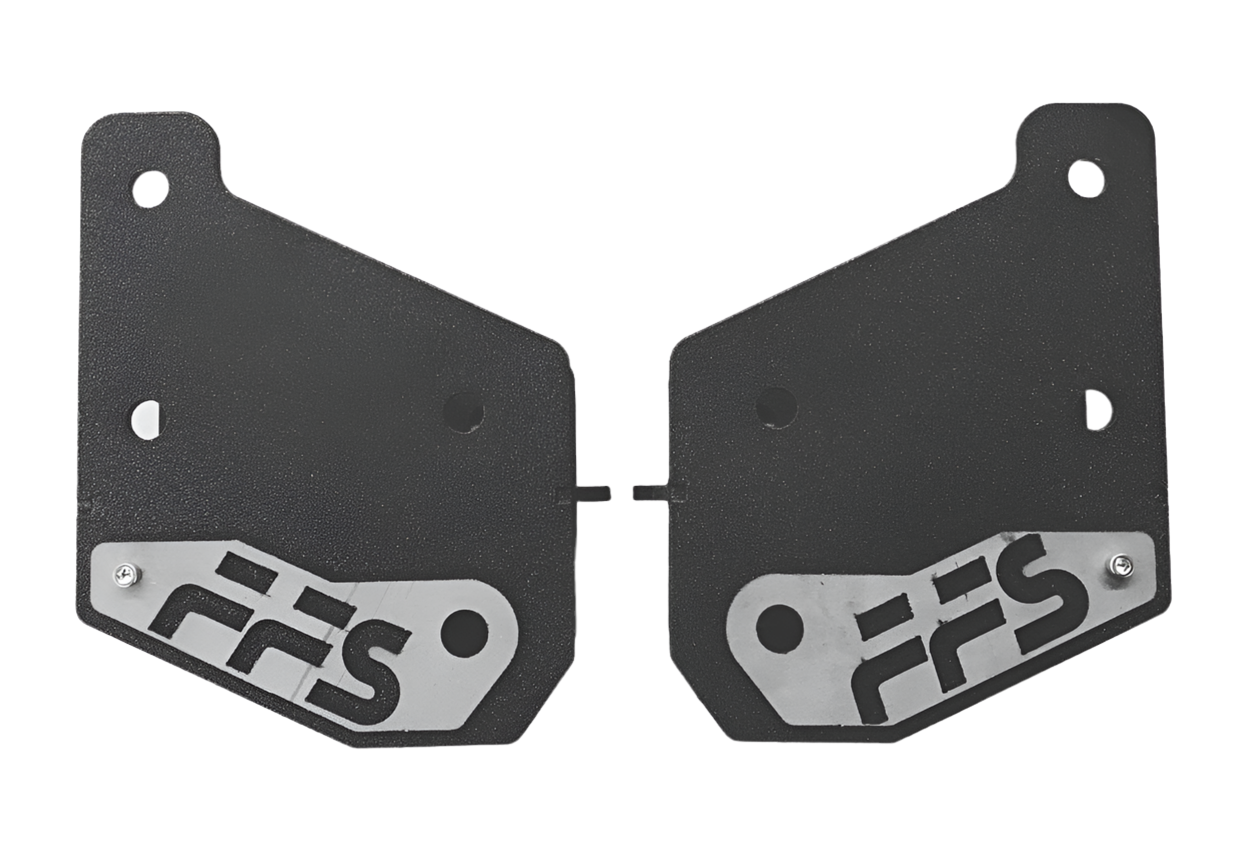

(1) Pair of our bolt on 2g FFS overlay badge frame brackets

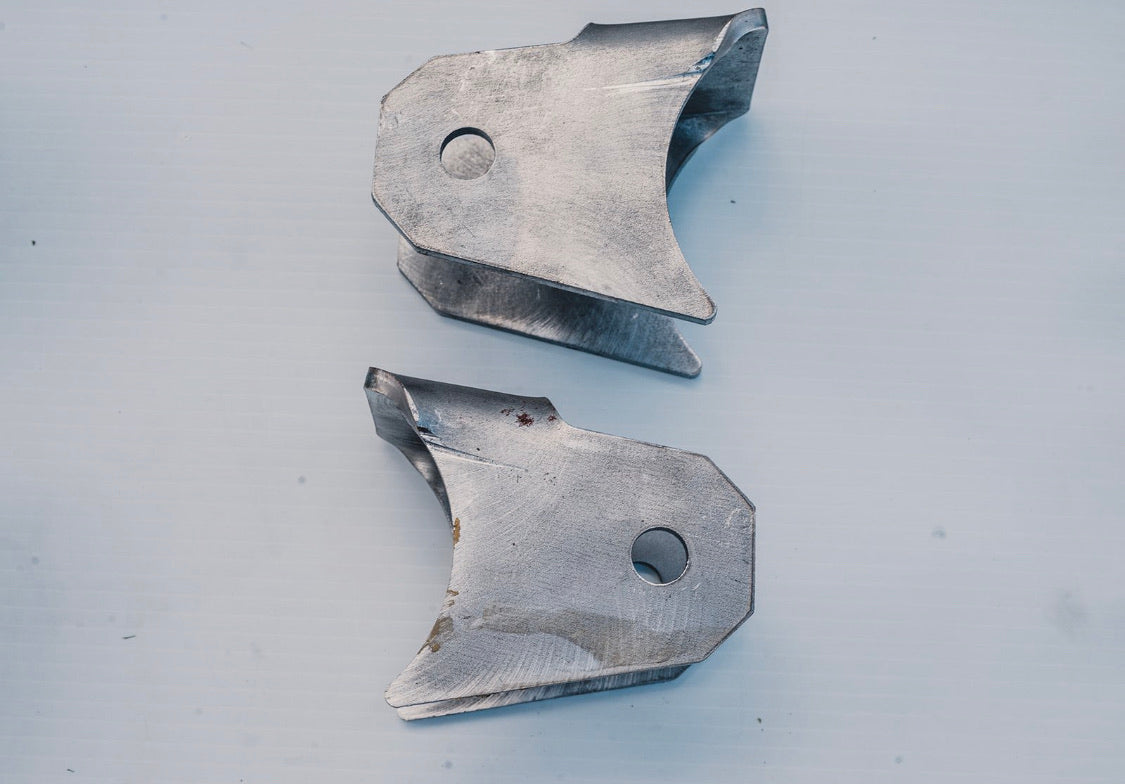

(1) Pair of our FFS 4” diameter weld on axle mount brackets

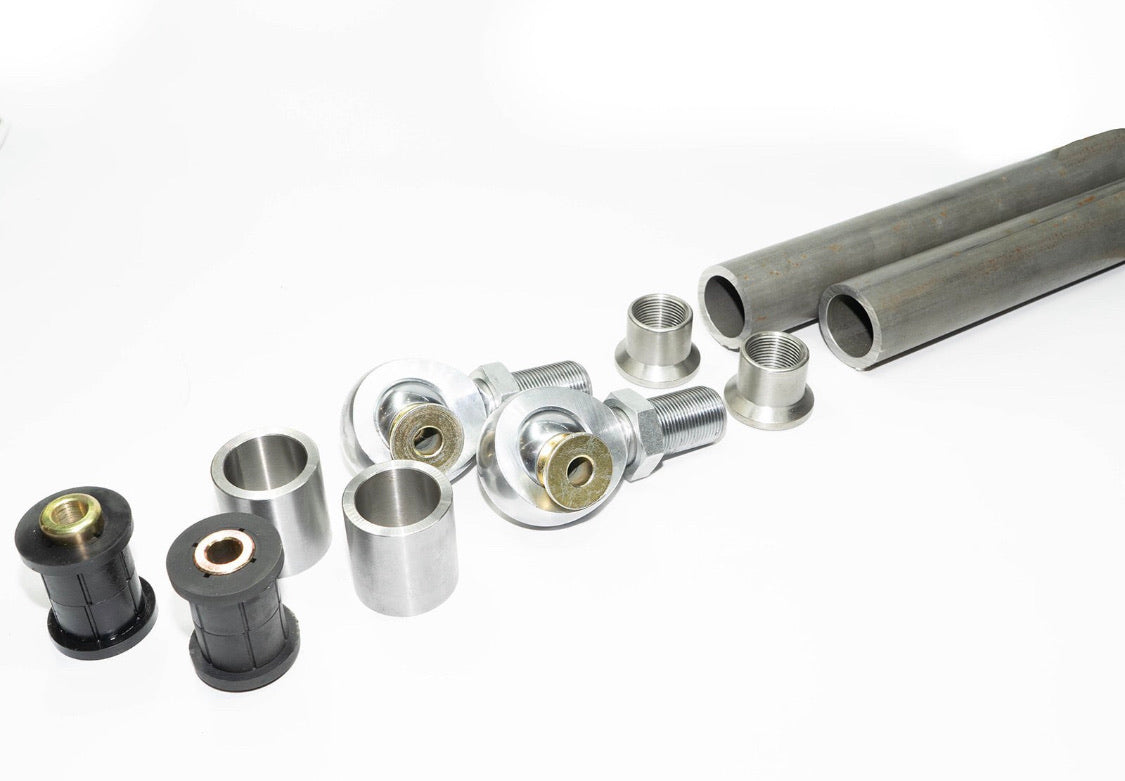

(2) Bushed DOM sleeves 2-5/8" wide for 9/16" bolt
(2) 1.25" Heat/Cryo treated Heim joints with misalignment spacers for 9/16" bolts
(4) 9/16" x 4.5" Grade 8 fine thread bolt sets
(2) sticks of 2” .250 wall dom tube in chosen length.(note sizes are generic lengths and need cut to size for each particular project.)

These are also available in pre welded finished links. The axle brackets will still need to be welded to the rear axle.

We can provide a standard black wrinkle powder or custom color upon request.

If you are local or not we can complete the install here at the shop. Call for Shop Labor Quote 740.939.0073

If you need further instructions on installation check out our Youtube INSTRUCTIONAL VIDEO
