72-93 Dodge Ram Heavy Duty Tie Rod - Dana 44

72-93 Dodge Ram Heavy Duty Tie Rod - Dana 44

$350.00
$350.00

CLICK: SINGLE COAT VS DUAL COAT

When Selecting a Powder Coat Custom Color , Pay attention to the description, it will tell you if you need more than one coat of powder. Dual Stage colors have a silver underbase and are often named Illusion. If you are unsure give us a call and we will help you decide.


Expected delivery date:
12 Dec - Custom Parts can take a bit longer, reach out to us if you need it faster. We will do our best to accommodate your build.

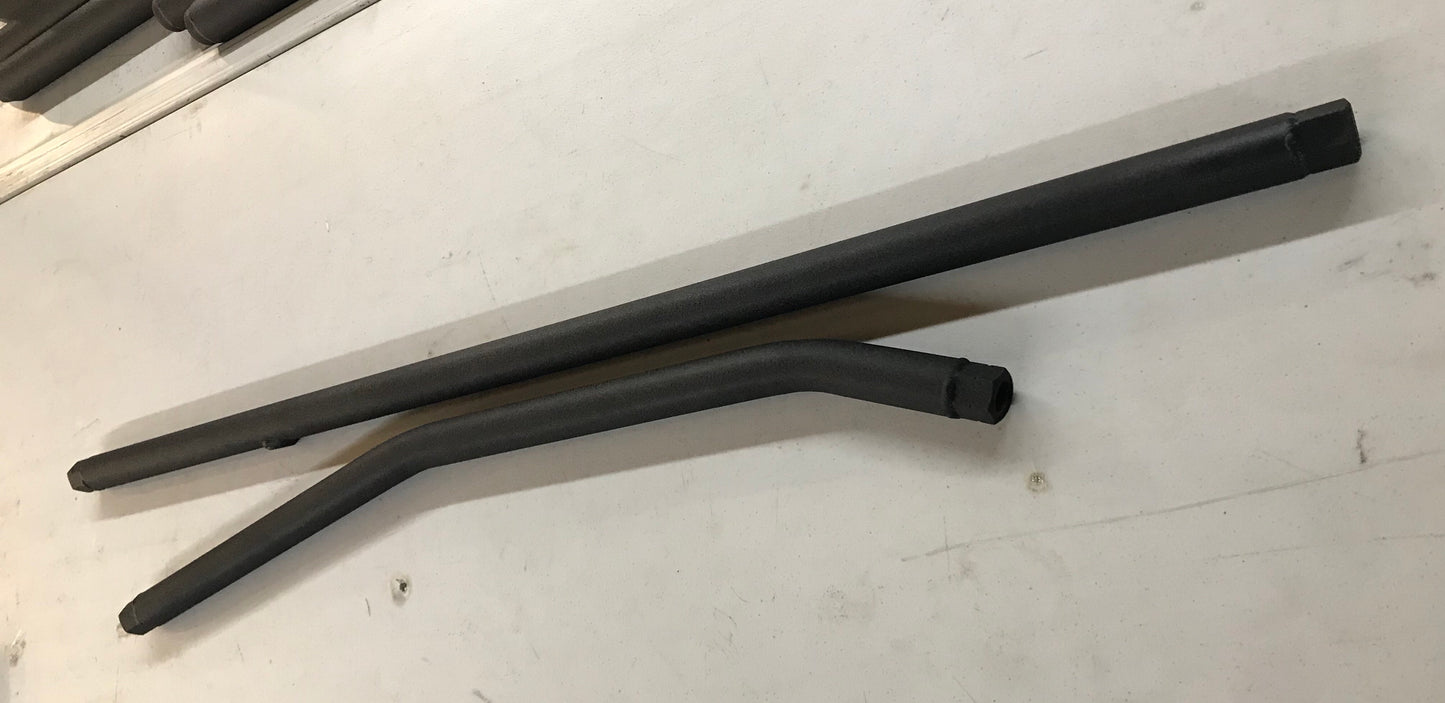

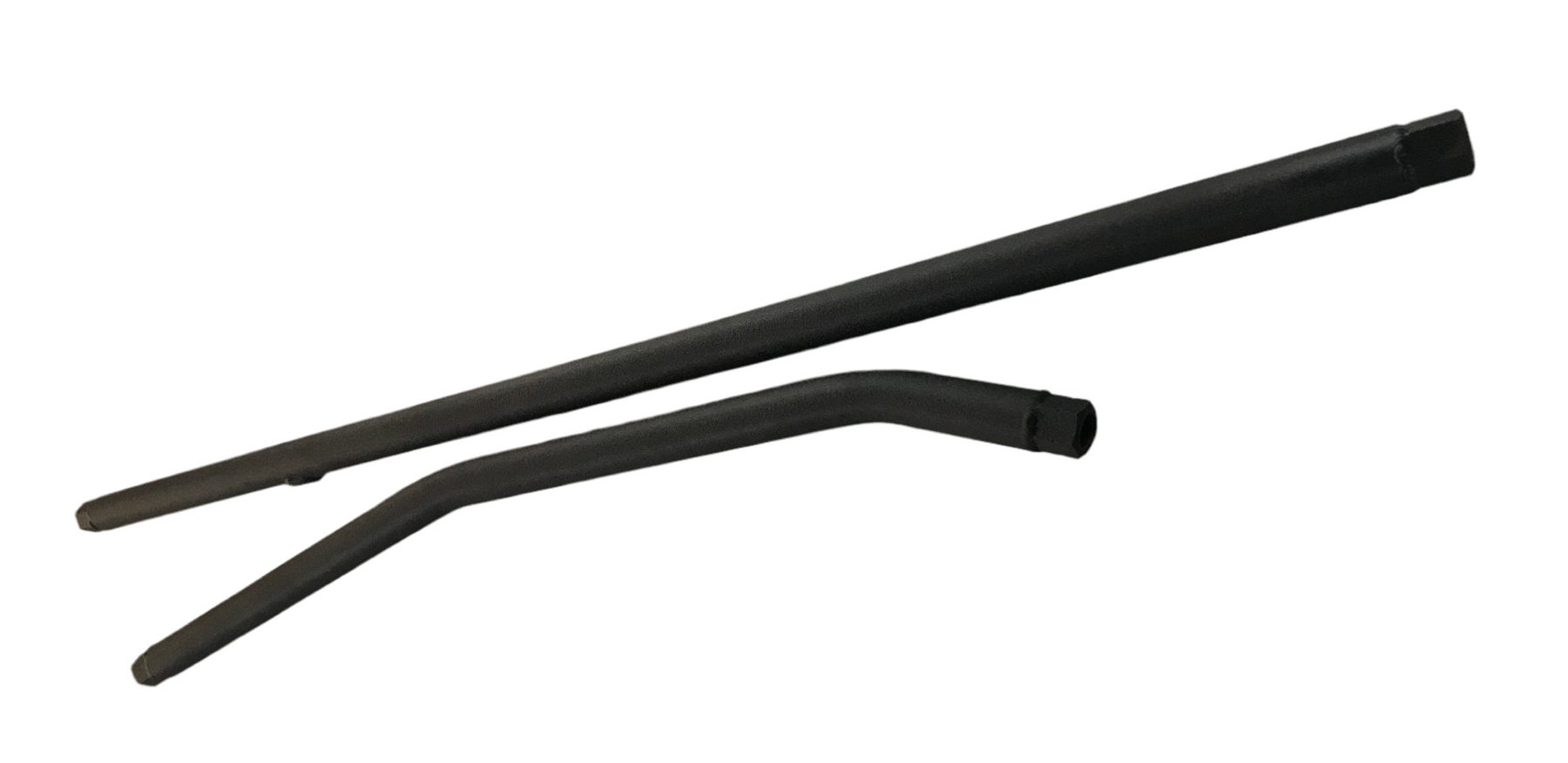

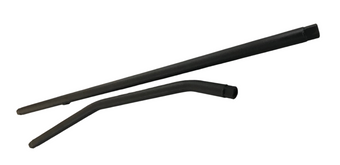

Heavy-duty 1.5" × .250 wall DOM heim tie rod for ’72–’93 Dodge trucks & Ramcharger with Dana 44. Hex ends for easy on-vehicle adjustment. Requires drilling knuckles to 3/4". Default finish: Wrinkle Black.

Vehicle Fitment (YMM)

Years Make Model Notes
1972–1993 Dodge Pickup / Ramcharger Dana 44 front axle; drill knuckles to 3/4" straight for heim conversion
Key Specs
  • Bar: 1.5" × .250 wall DOM with hex ends
  • Joint Style: Heim-type rod ends (race-style)
  • Prep Required: Drill factory knuckles to 3/4" straight
  • Finish: Wrinkle Black (standard)
  • Why it matters: Stronger than stock; hex flats prevent tooling damage and make adjustment easy
What’s Included
  • (1) Heim Tie Rod

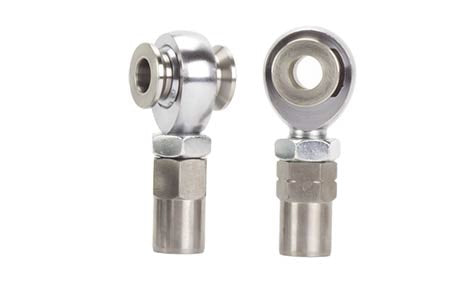

  • (1) 7/8ths Left hand Heim Joint
  • (1) 7/8ths Right hand Heim Joint
  • (4) 7/8ths x 3.4" Narrow Misalignment

Exact contents may vary slightly with selected options. Review choices on the product page before adding to cart.

Installation
  • Difficulty: Intermediate (drilling + toe/center setup)
  • General Steps: Support front axle; remove stock tie rod; drill knuckles to 3/4" straight; mock bar & joints; set toe & steering-wheel center; torque jam nuts & hardware; road test; re-torque after 50–100 miles.
  • Tips: Deburr drilled holes; use anti-seize on heim threads; verify full-lock clearance.

Heim care: In salty/brine climates, coat with heavy grease or use rubber boots in winter; light penetrant periodically keeps joints quiet. If you have any questions please call in.

Shop Notes
  • Heim joints are race-type components; some areas may classify as off-road only—check local regulations.
  • Ask us about FFS in-house install
Note: All products are made to order. Custom-fit items may take longer to ship. For questions about shipping times, please contact us—we’re happy to help.
