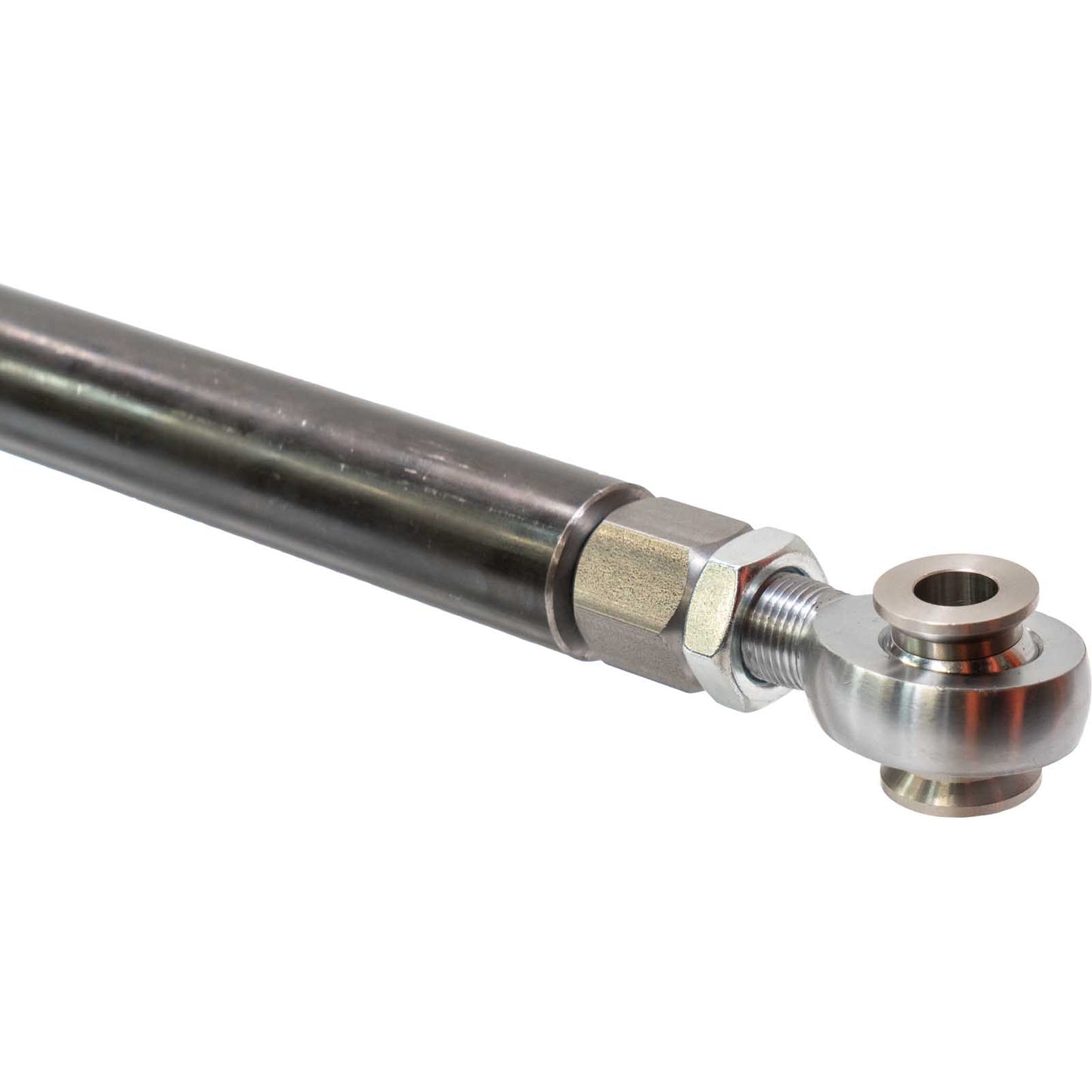

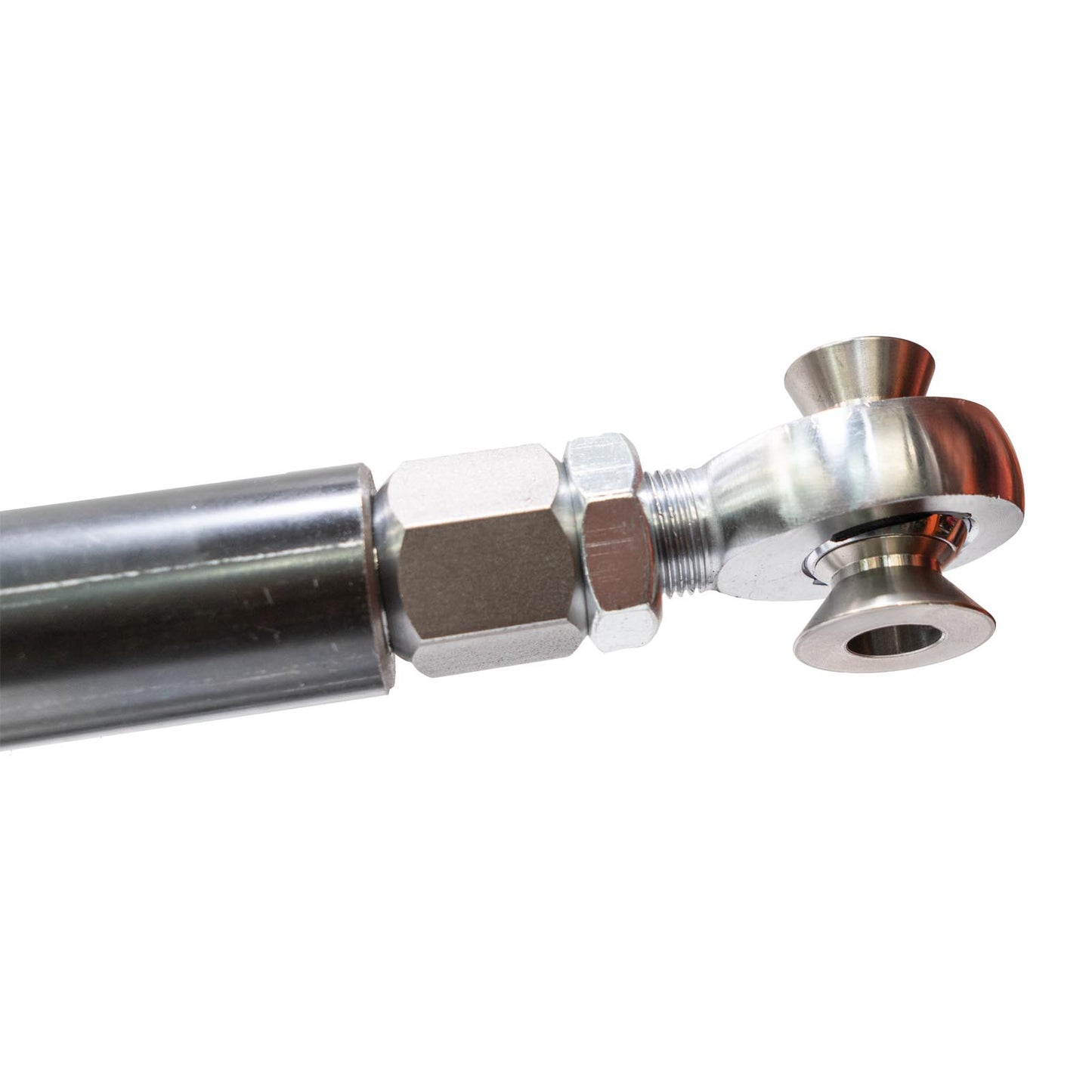

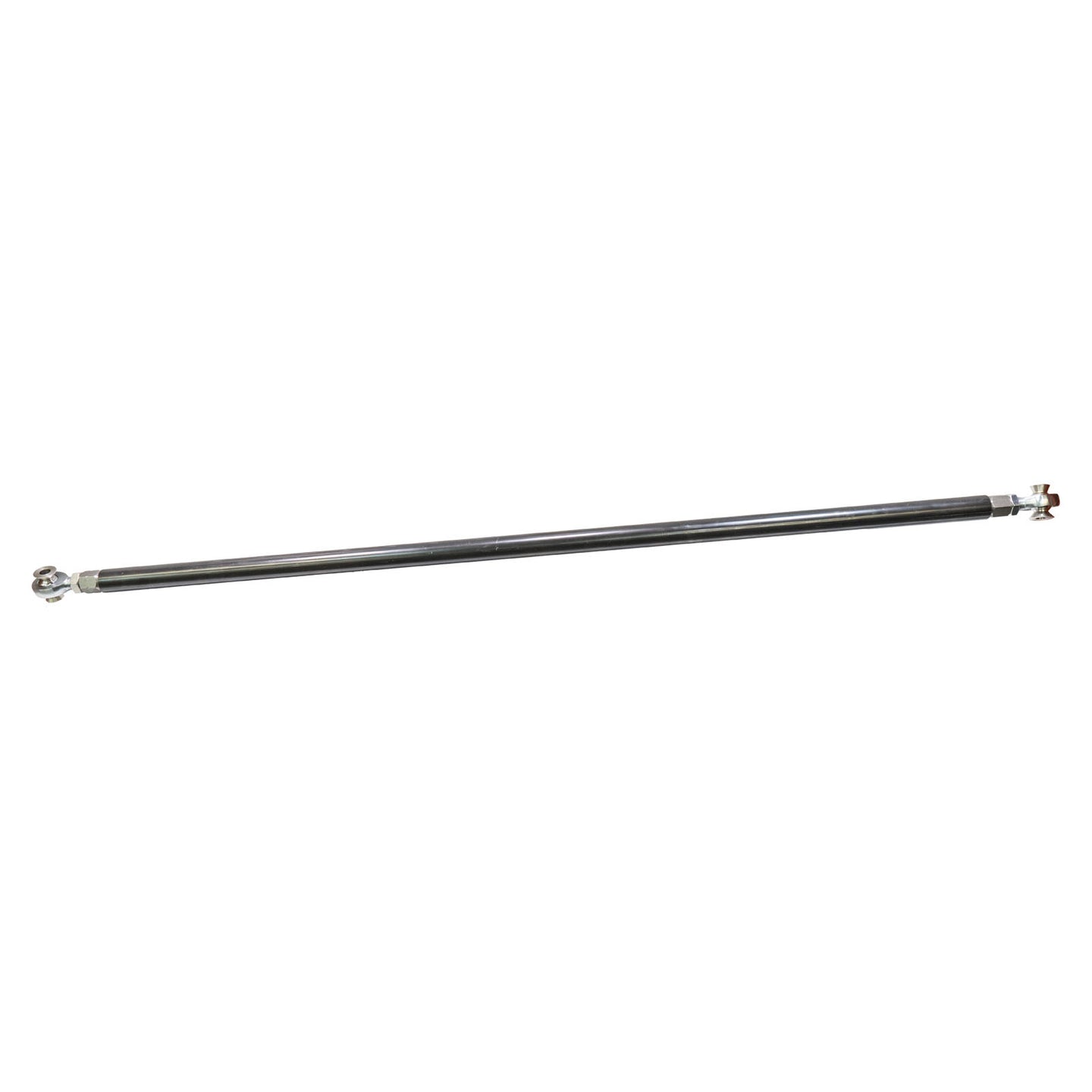

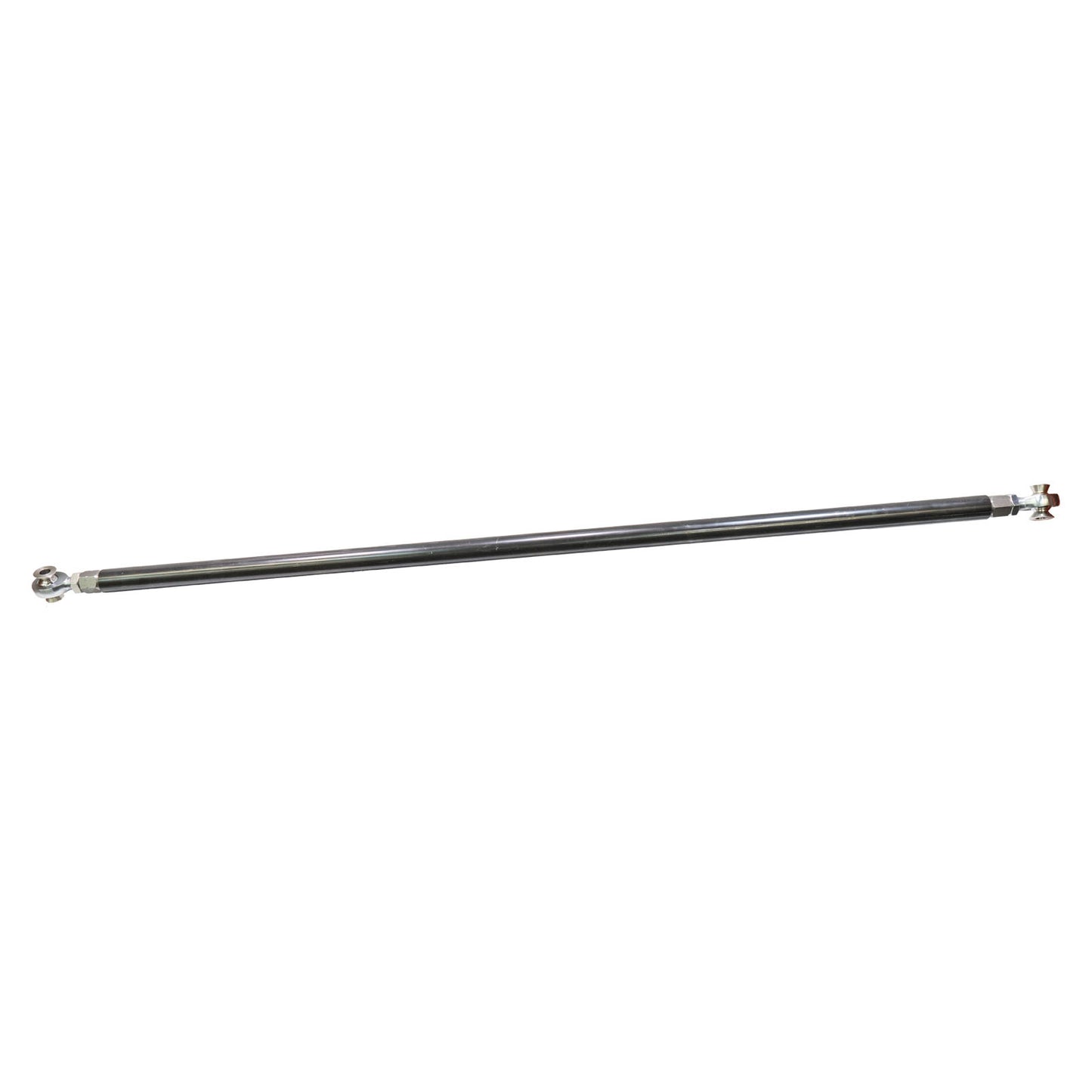

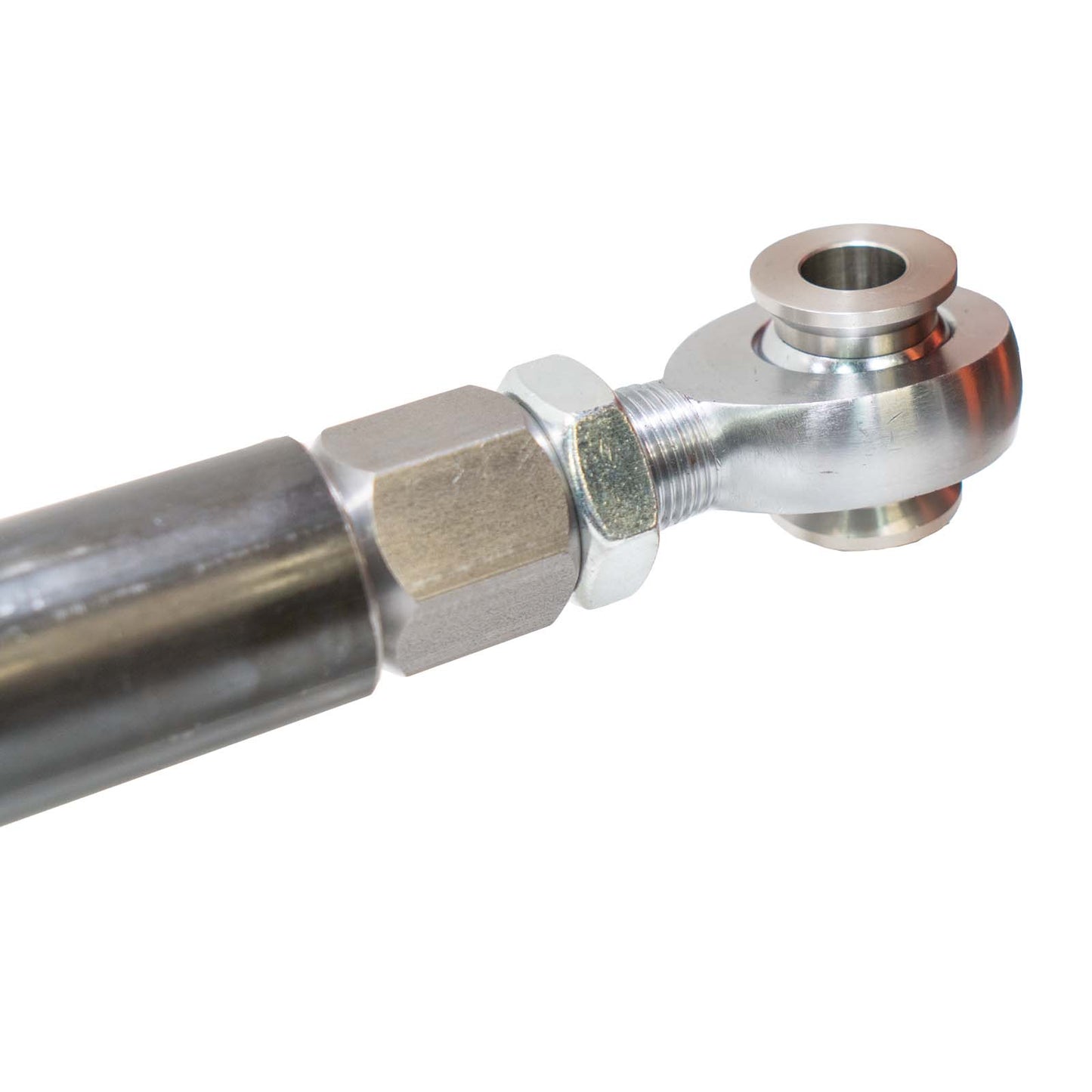

DIY 7/8" Heim Tie Rod / Drag Link Kit

DIY 7/8" Heim Tie Rod / Drag Link Kit

$173.24
$173.24 $204.56

In stock

Expected delivery date:
19 Dec - Custom Parts can take a bit longer, reach out to us if you need it faster. We will do our best to accommodate your build.
      • DIY 7/8" Heim Tie Rod / Drag Link
        • KIT INCLUDES:



    • 1--55" of 1.5" X .25" wall DOM tubing
    • 2--7/8" Heat Treated Chromoly Heims
    • 2--7/8" Hex Tube Adapters (1" Tube ID)
    • 2--7/8" Jam Nuts
    • 4--Heim Misalignments 7/8-3/4 for a 1 5/8"(narrows) mounting width



    This is just what the doctor ordered when you just jammed a rock with the stock 1/16" thick tie rod or a solid tie rod. These are 1.5" in diameter and .25" thick and can take a hit over and over again so do it right the first time with something serious from FarFromStock.

    You will need to drill your arms to a 3/4" hole to use this kit.

    This is a do it yourself style kit that requires welding by a competent person with the right equipment, don't skimp, do it right! You will need to check clearances with the steering at lock to see if you need to add any bends before you cut it down to clear diff covers, sway bar mounts, etc
    Note: All products are made to order. Custom-fit items may take longer to ship. For questions about shipping times, please contact us—we’re happy to help.
