94-02 2500-3500 4WD 2G Steering Kit and Component Parts

94-02 2500-3500 4WD 2G Steering Kit and Component Parts

$1,245.00
$1,245.00 $1,185.95

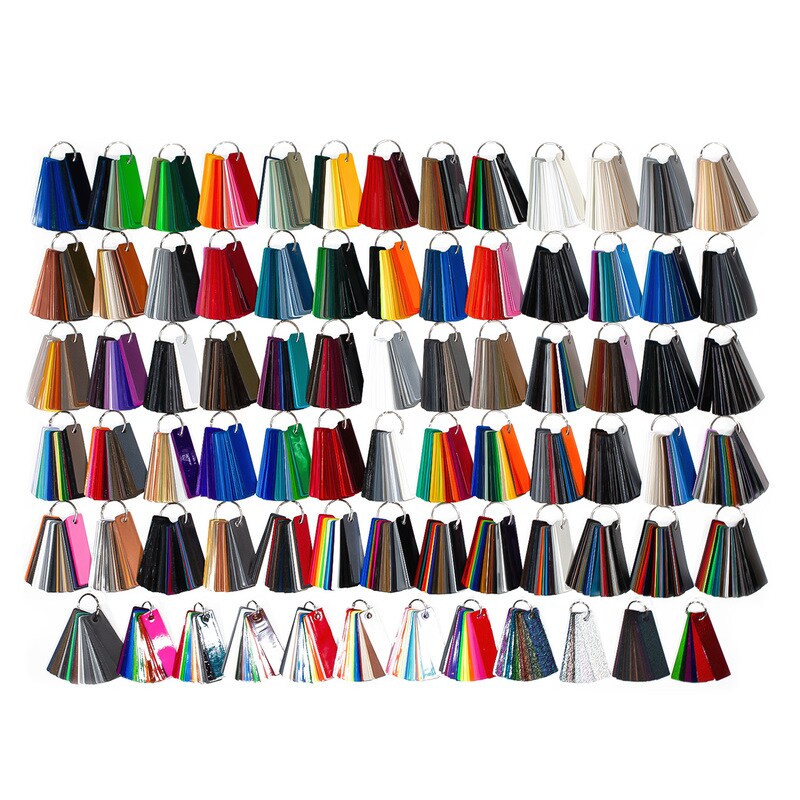

CLICK: SINGLE COAT VS DUAL COAT

When Selecting a Powder Coat Custom Color , Pay attention to the description, it will tell you if you need more than one coat of powder. Dual Stage colors have a silver underbase and are often named Illusion. If you are unsure give us a call and we will help you decide.


Expected delivery date:
30 Oct - Custom Parts can take a bit longer, reach out to us if you need it faster. We will do our best to accommodate your build.

If you want components of these kits., Call or eMail.

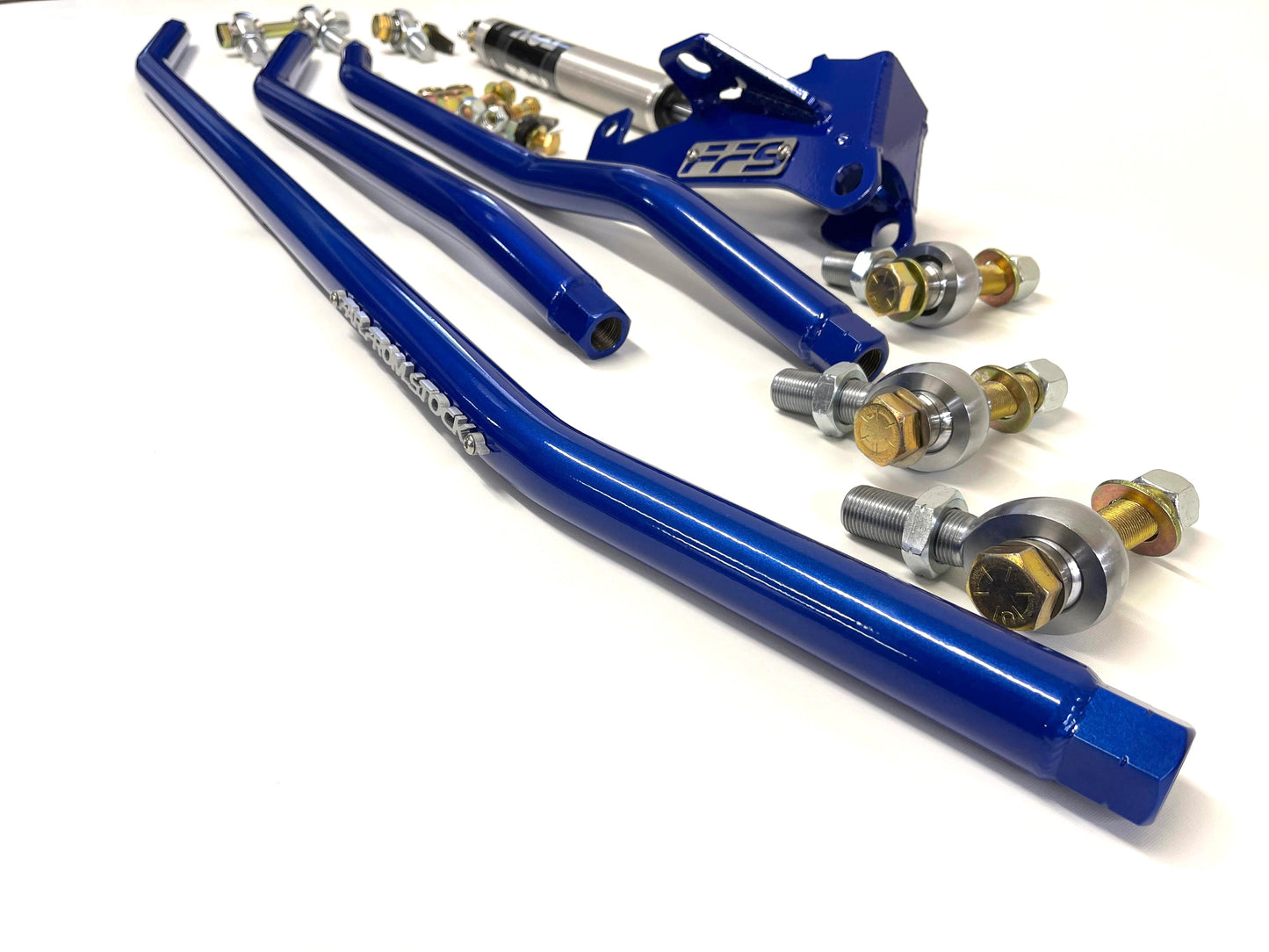

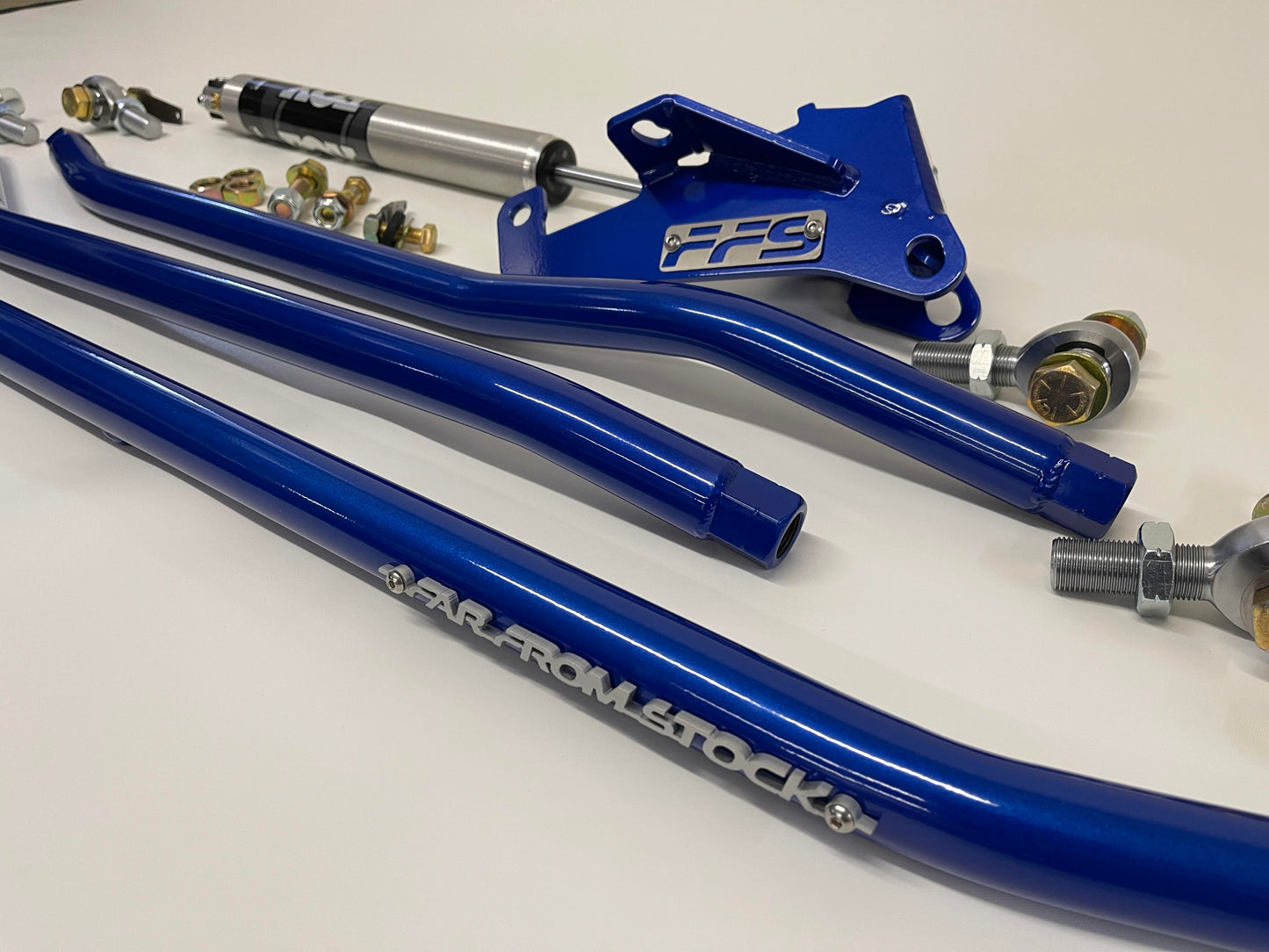

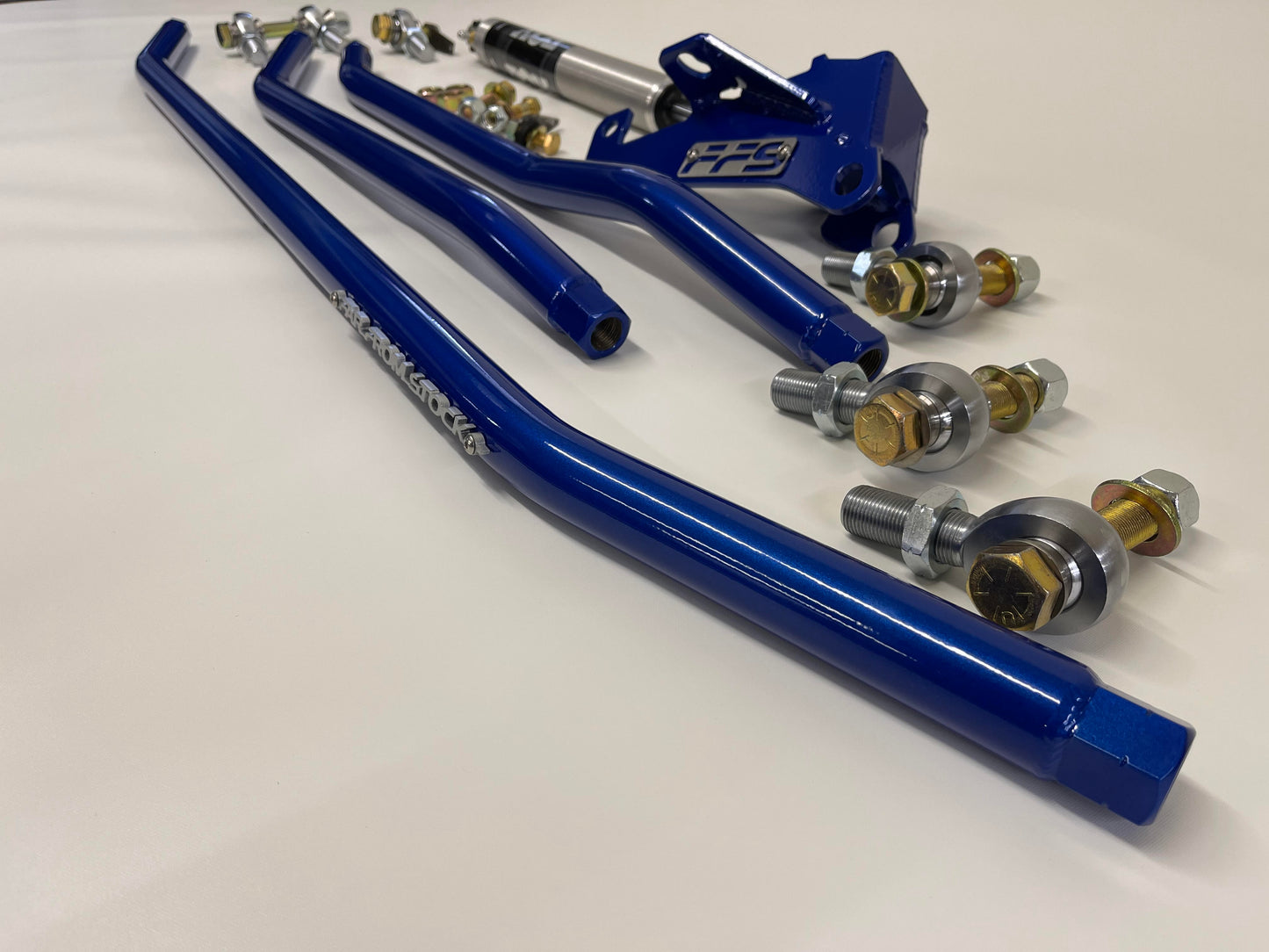

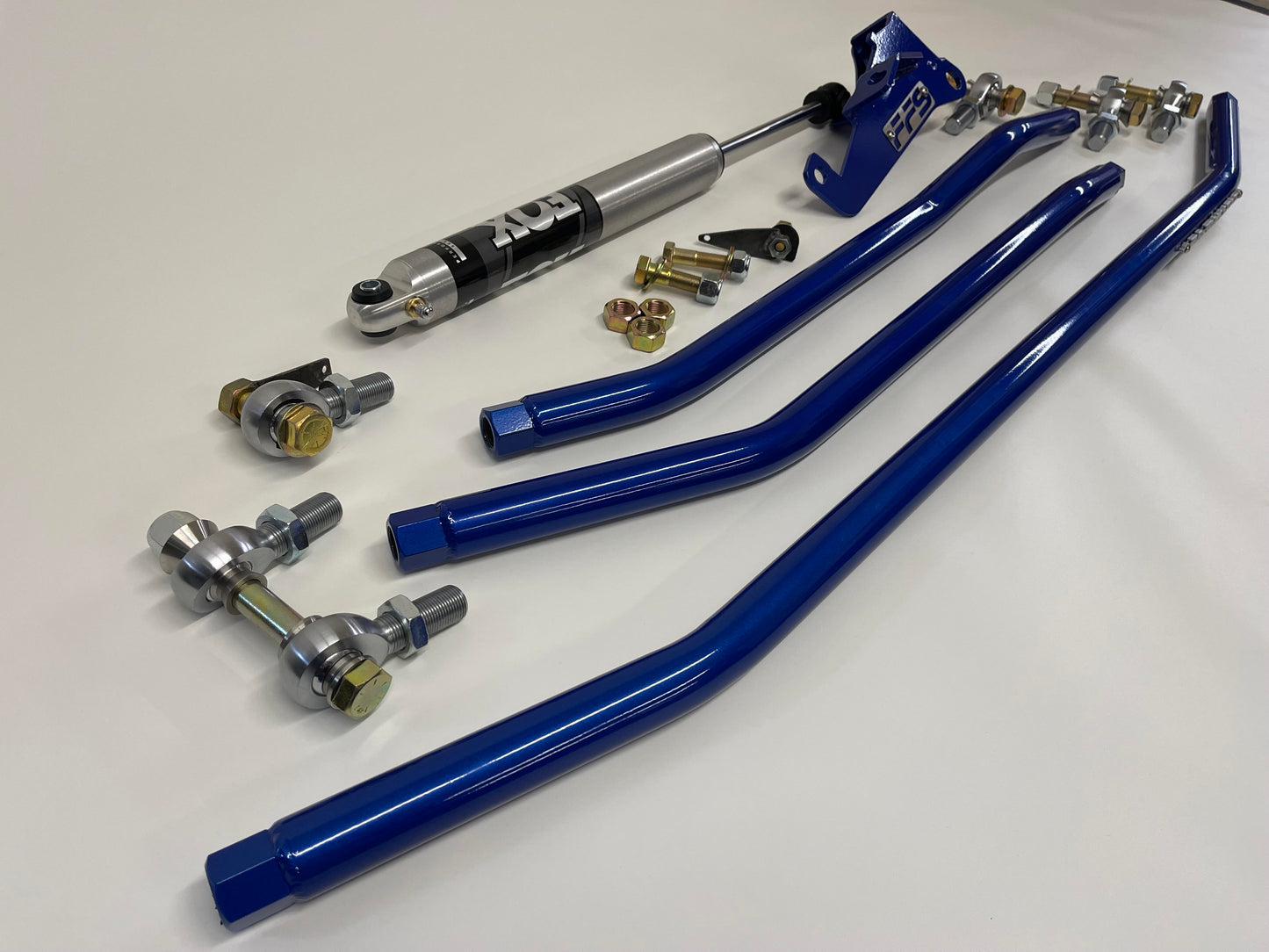

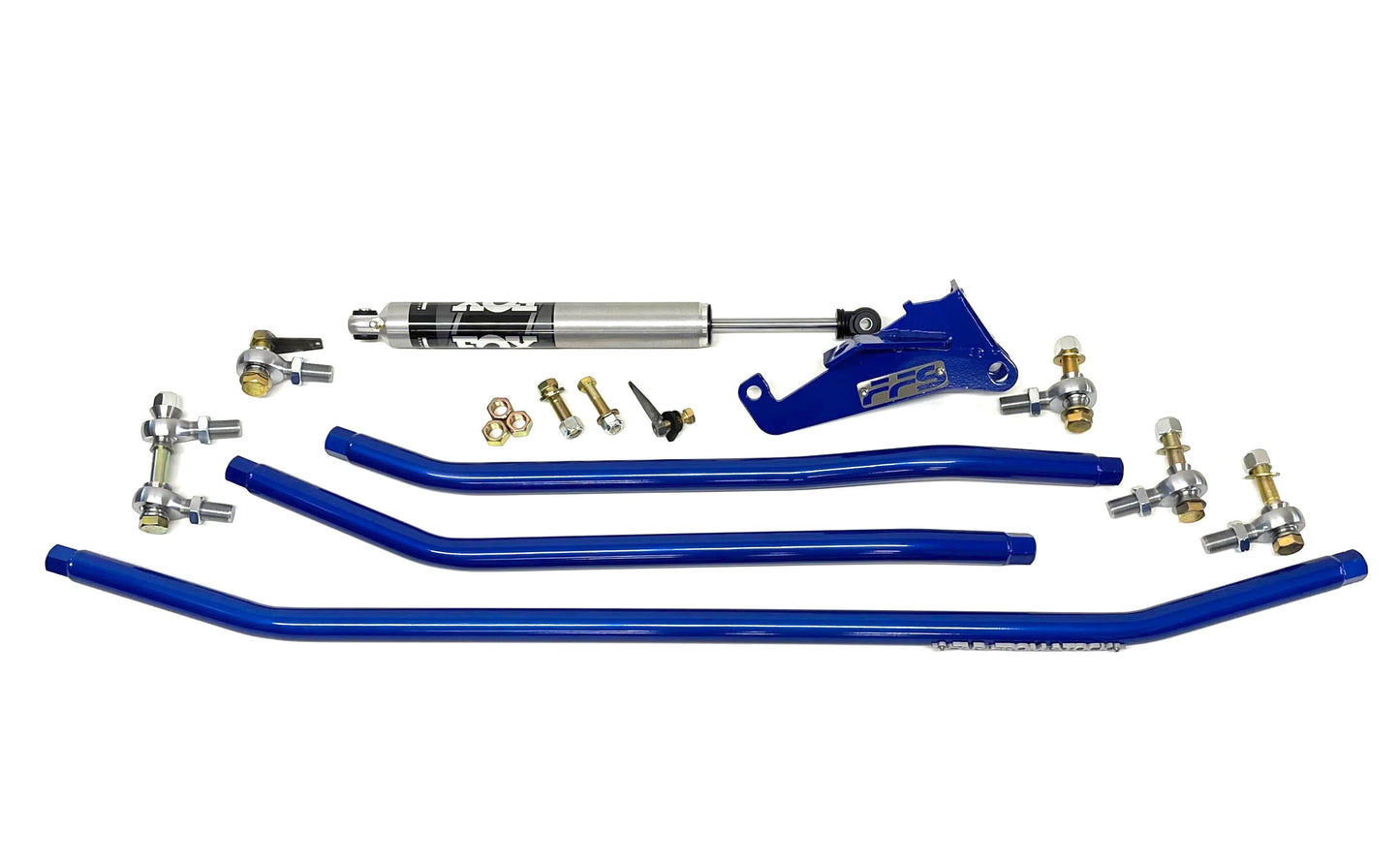

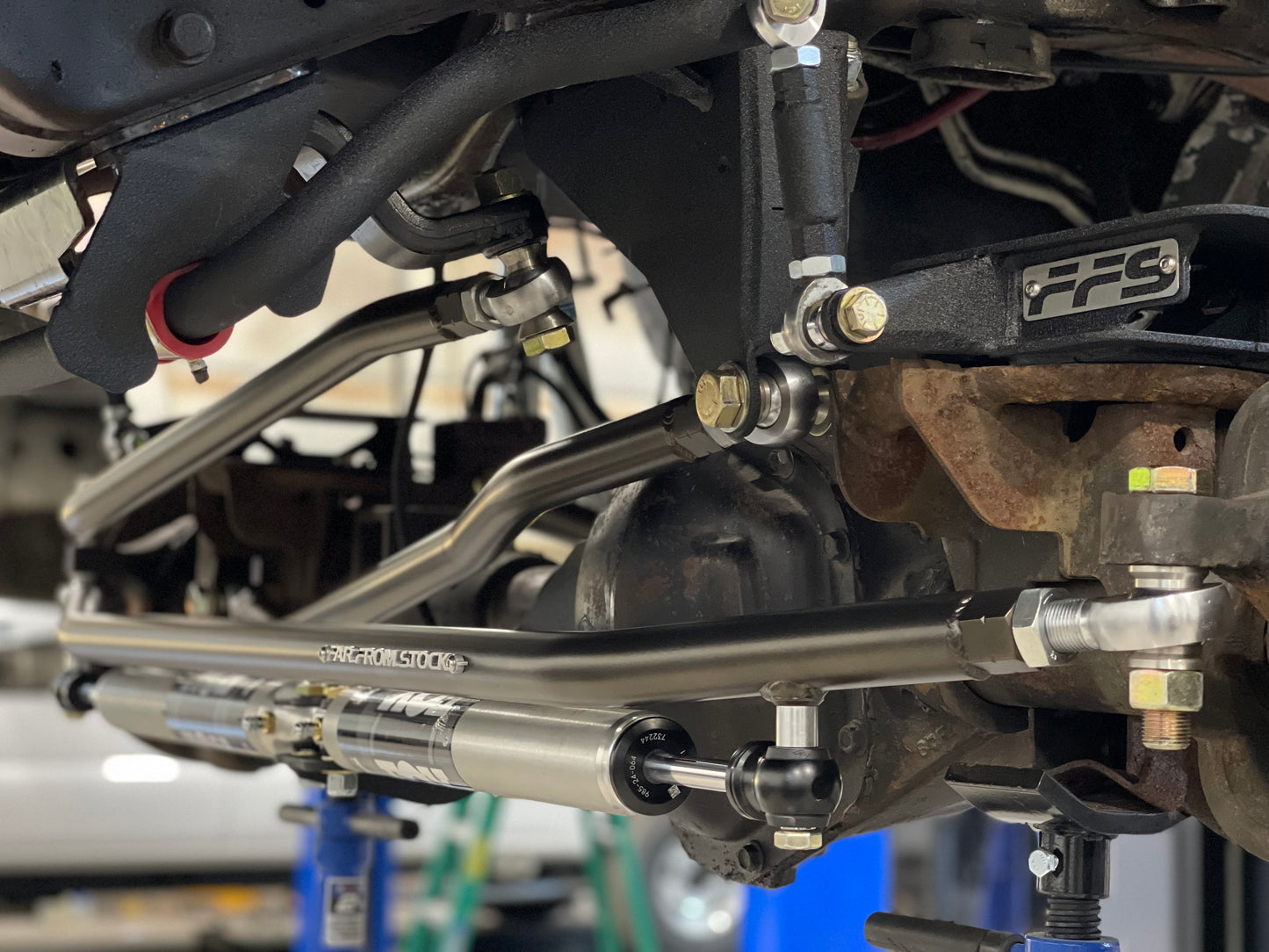

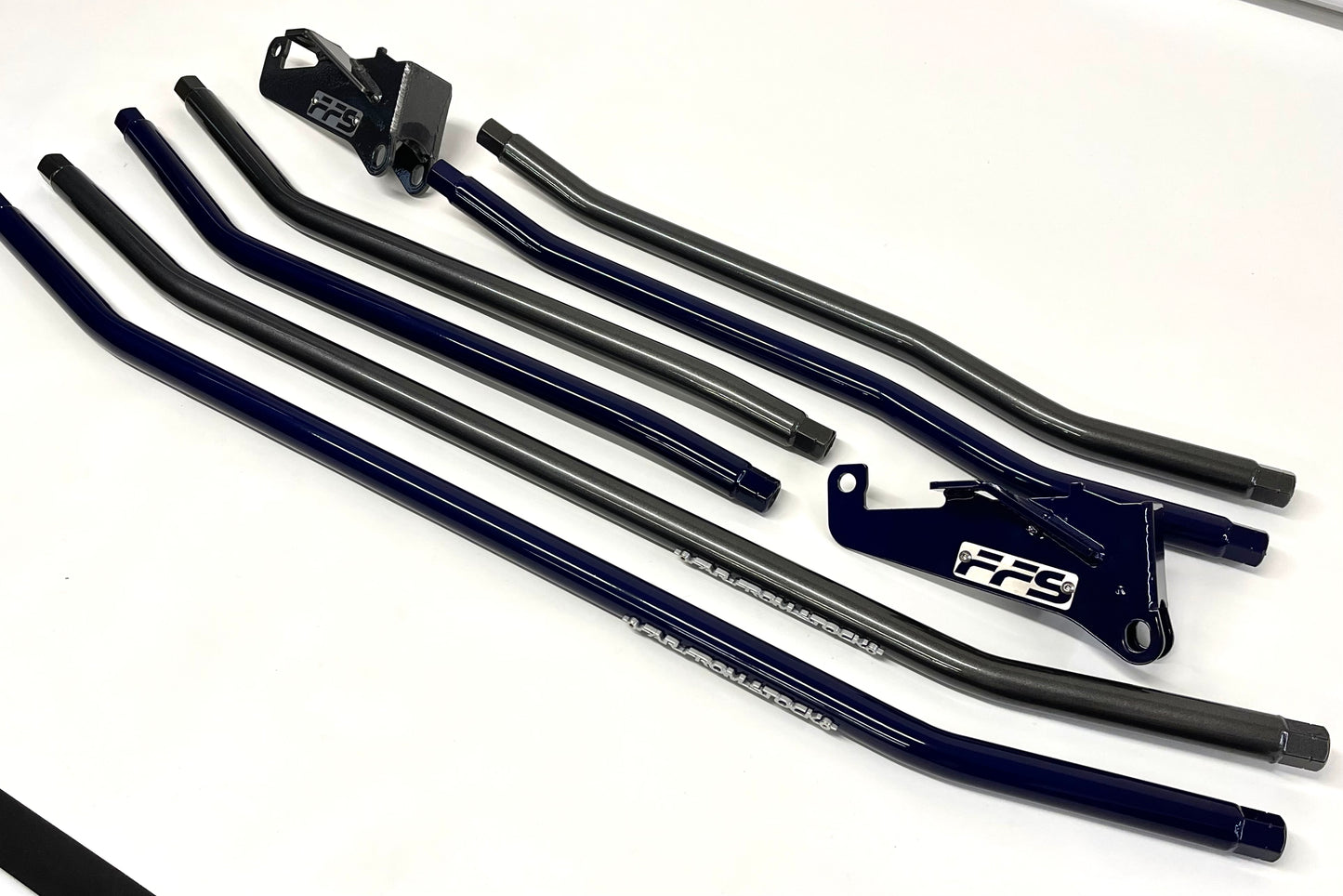

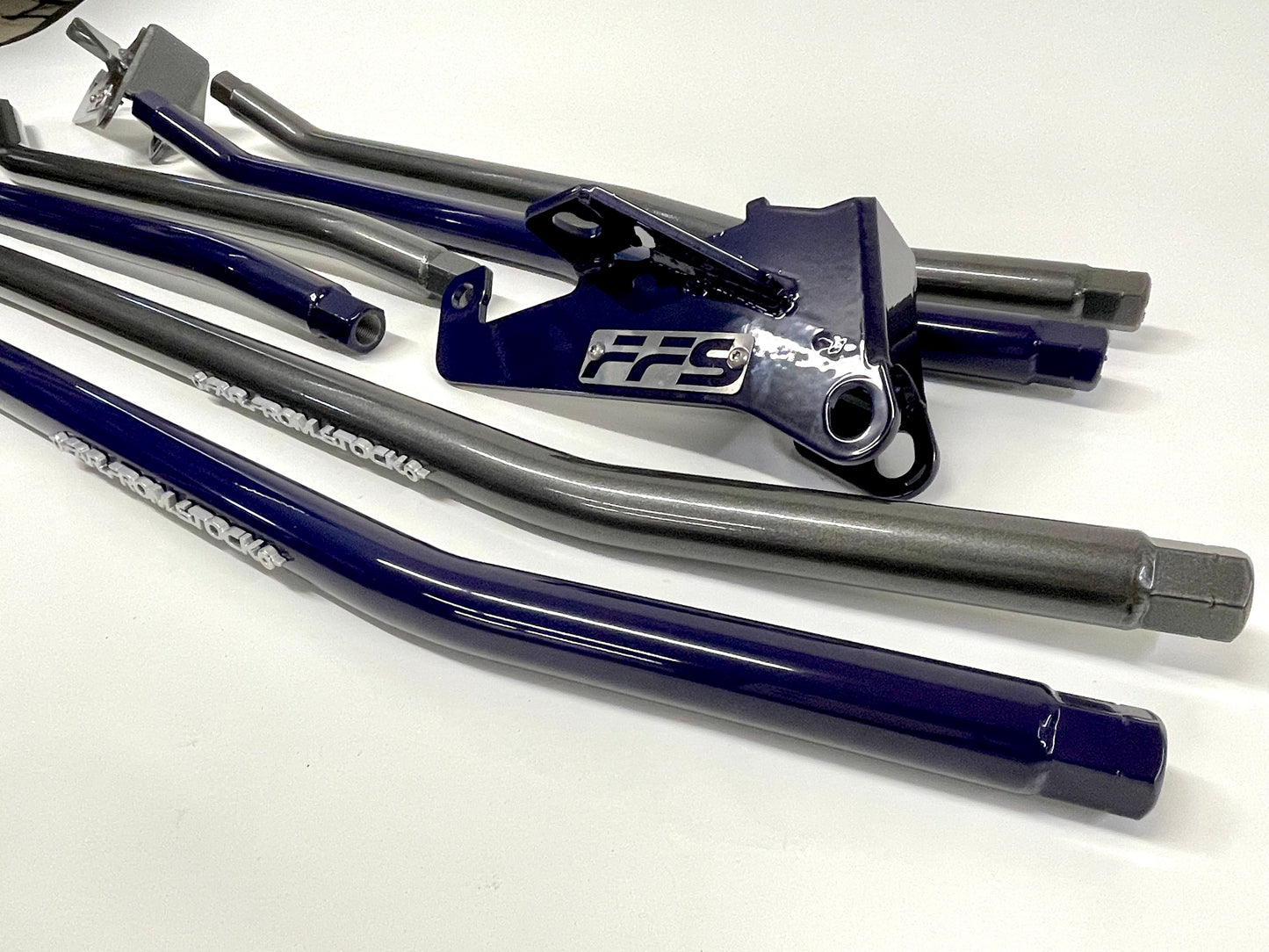

2nd Gen Steering Kit: Tie Rod / Drag Link / Track Bar / Drop Bracket

Fits: 1994–2002 Ram 2500 & 3500 (Dana 60 or 3rd Gen AAM Swap)

Lift Height:   –

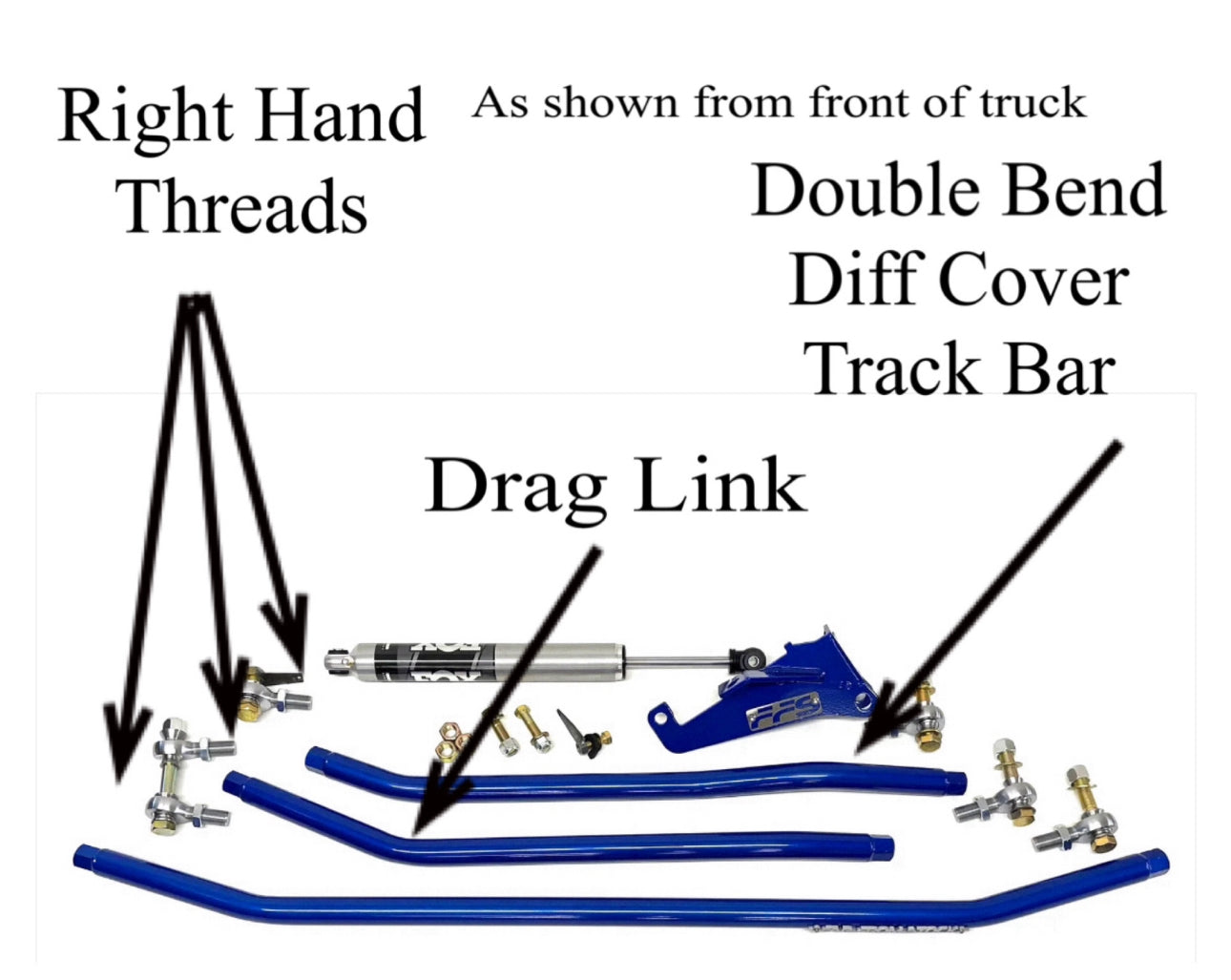

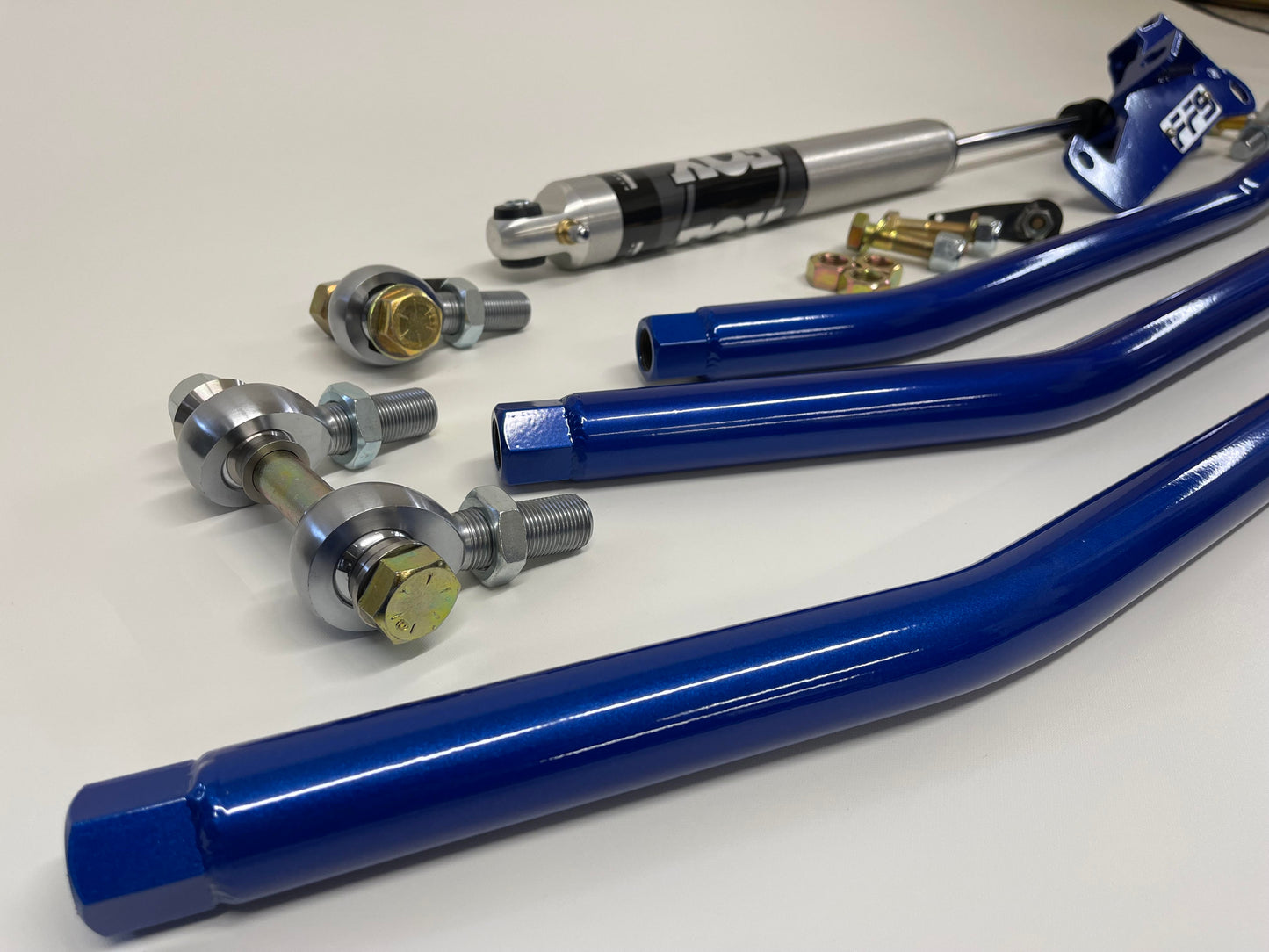

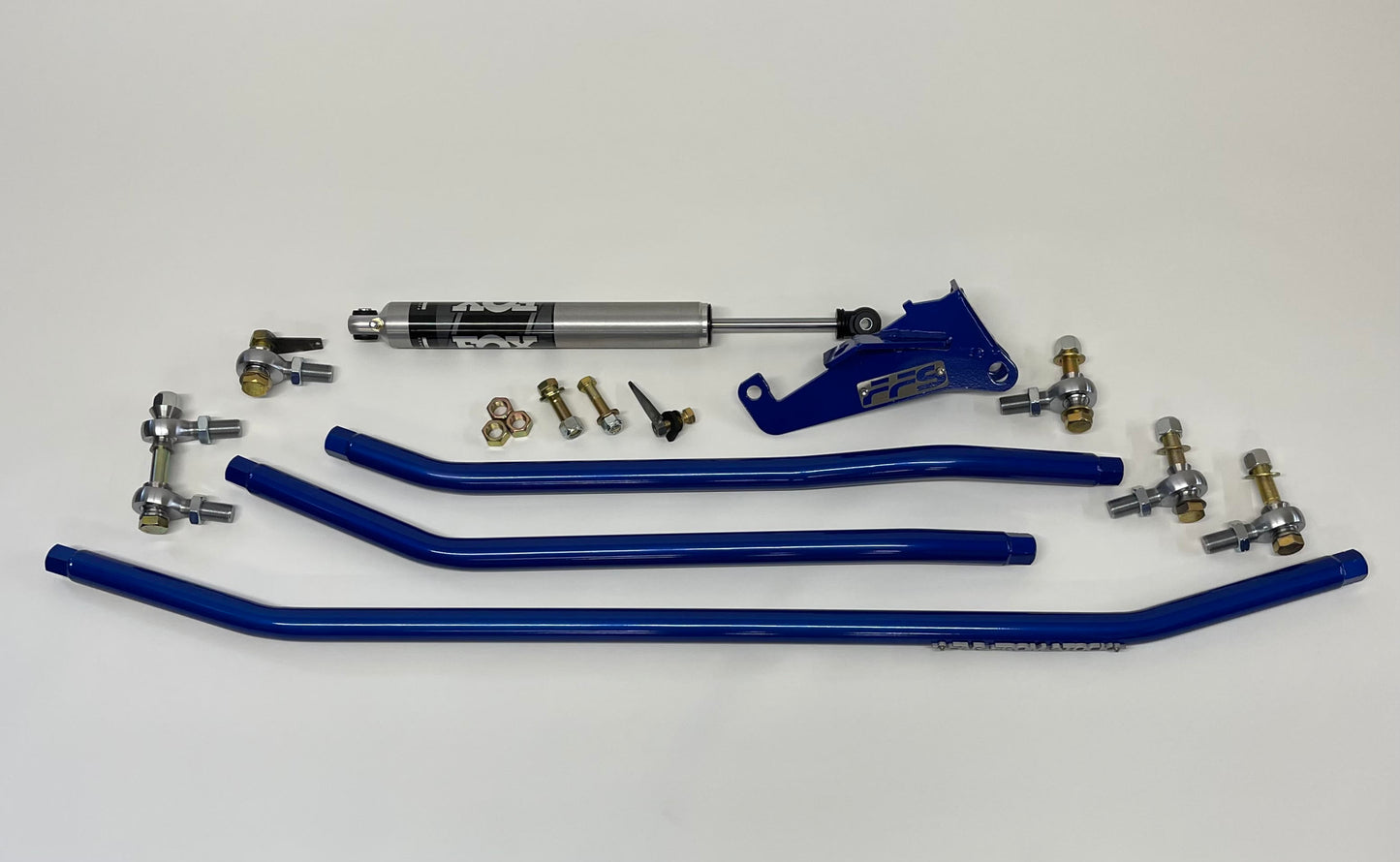

What's Included:

  • Tie Rod (1.5” DOM Steel, .250 wall)
  • Drag Link
  • Track Bar
  • Track Bar Drop/Conversion Bracket
  • Mounting Hardware (Grade 8, 3/4" bolts)
  • Single stabilizer mount (00–02 models only)

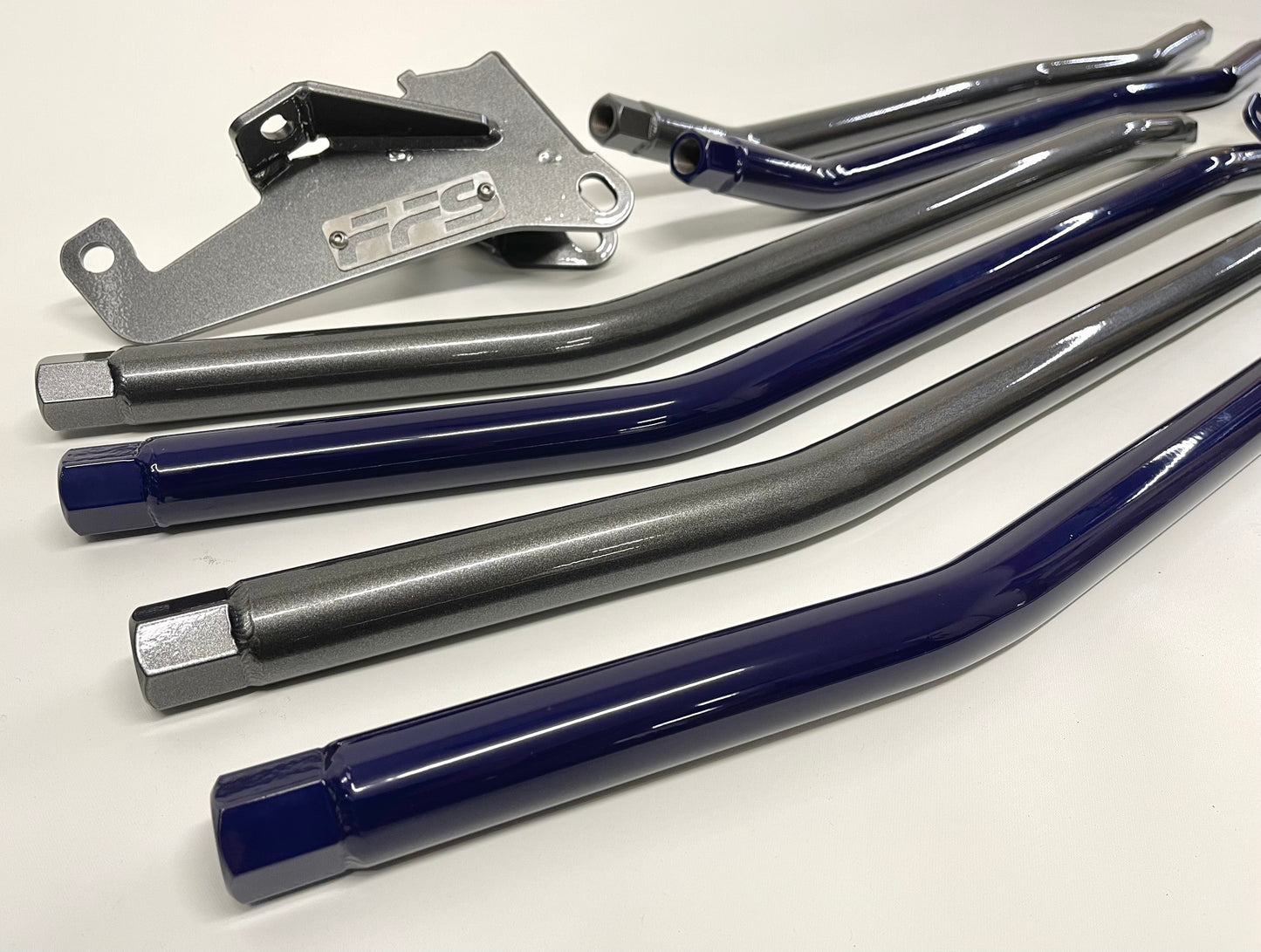

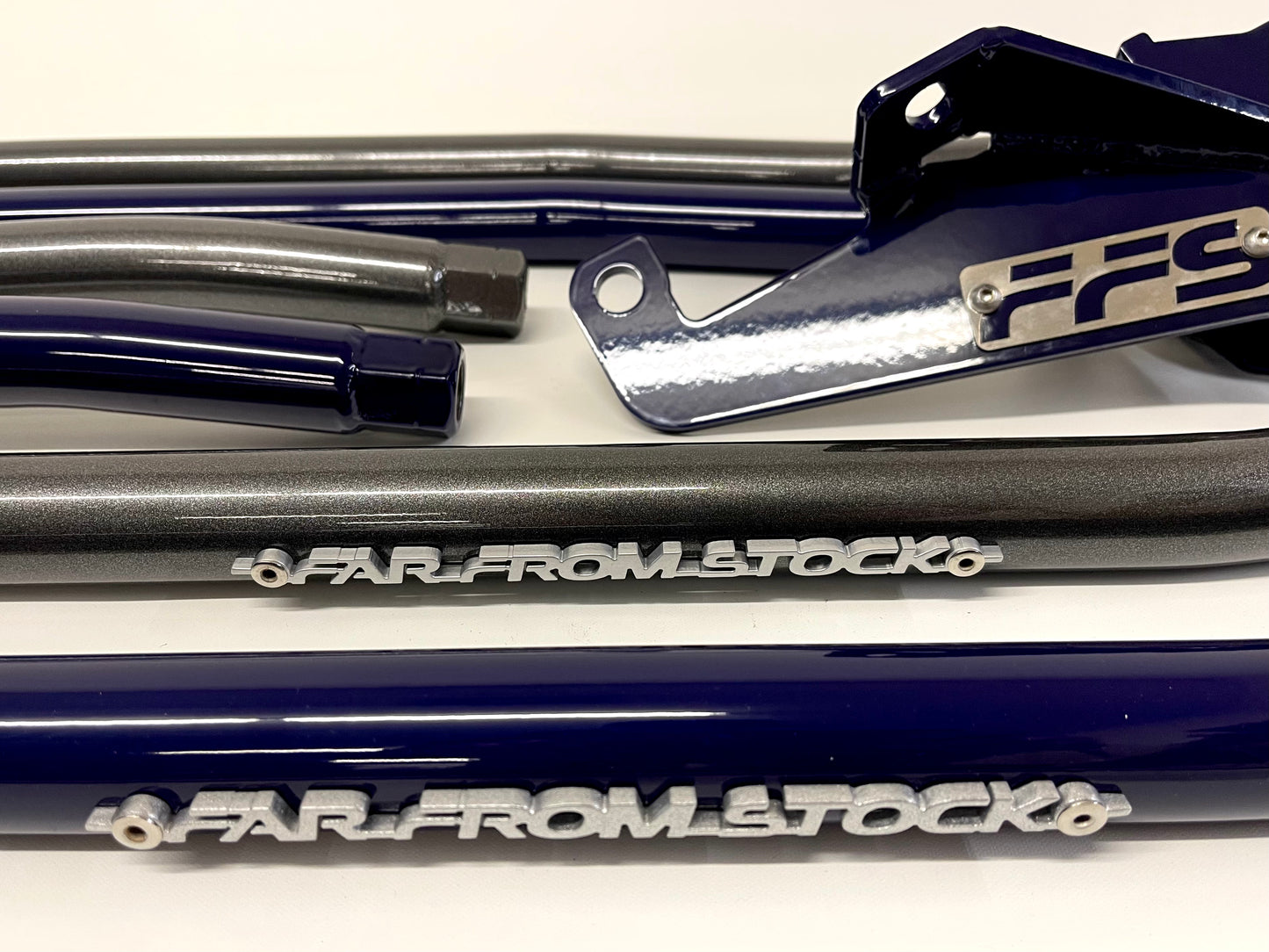

Finish Options:

  • Standard: Wrinkle Black Powder Coat
  • Optional: No finish
  • Optional: 6500+ Custom Powder Coating Colors (Choose a color here)

Key Features:

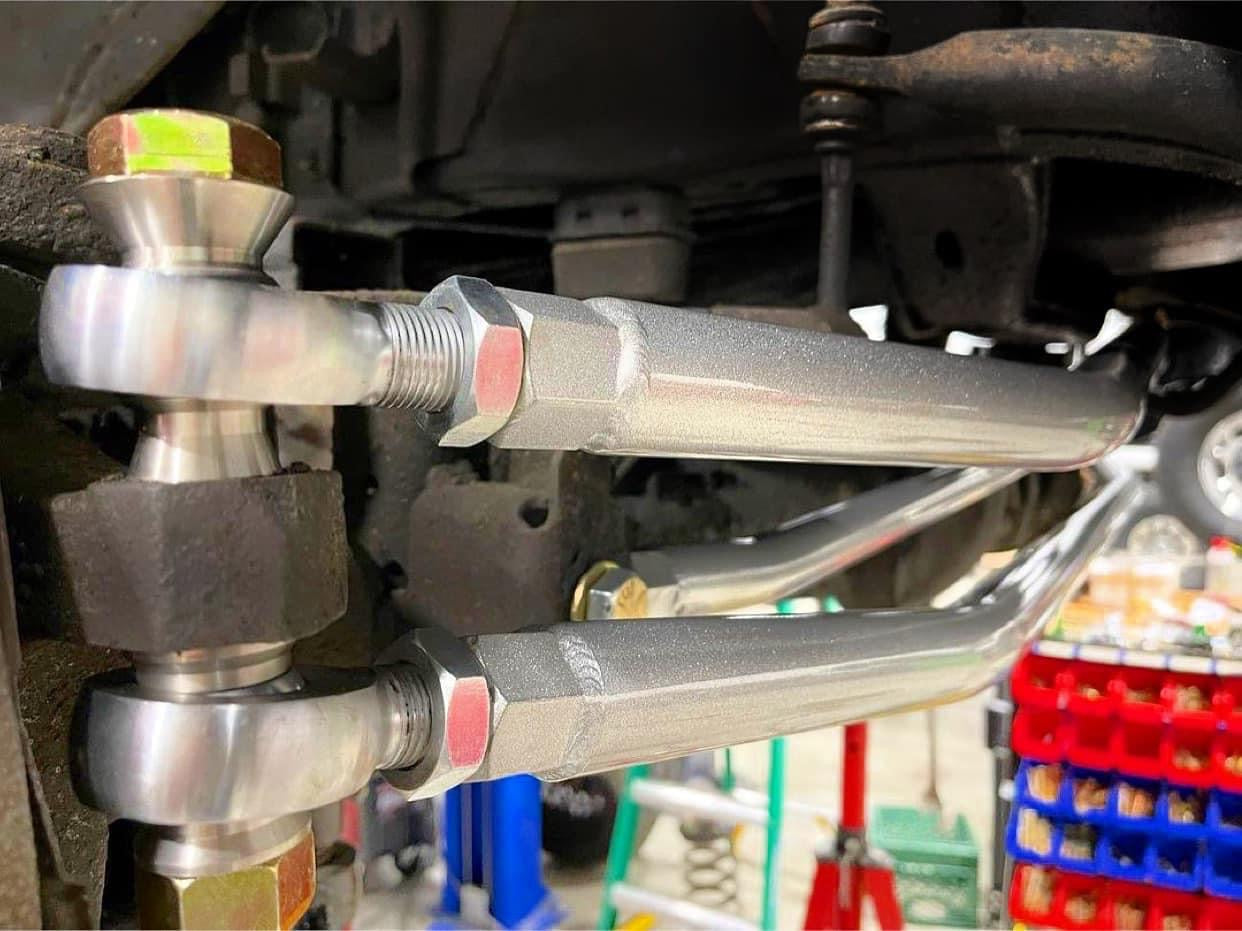

  • True crossover steering design with extended track bar

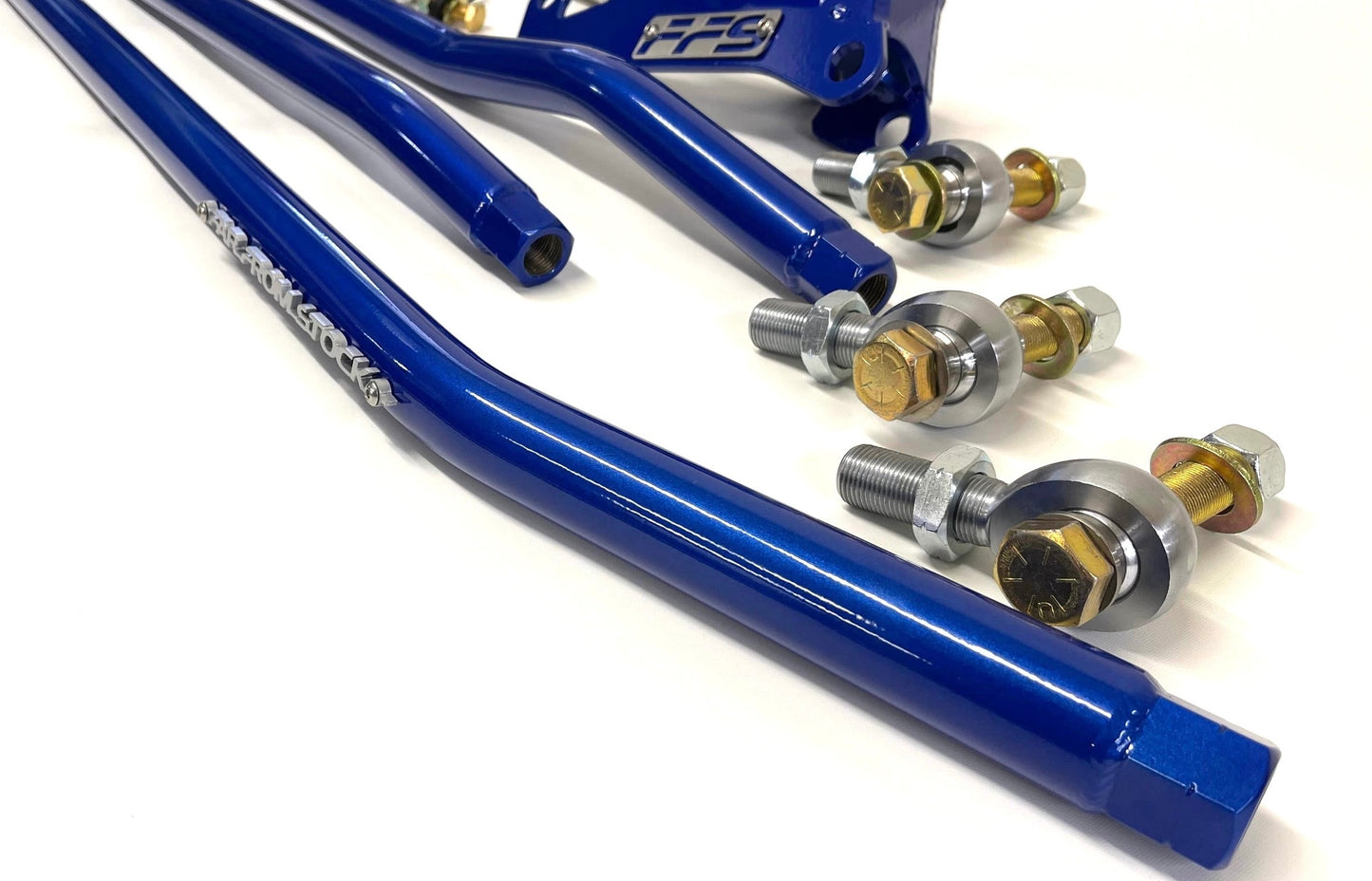

  • Massive 7/8” chromoly heat-treated rod ends
  • Self-lubricating & sealed race-style joints
  • Compatible with air suspension setups
  • 3/4” bolt hardware included (drilling required)

Lift Compatibility:

  • Lower Drop Bracket: Fits stock – 8” lifts
  • Taller Drop Bracket: Fits 6” – 15” lifts

Installation Notes:

  • Drilling required (3/4" drill bit and reamer recommended)
  • Remove powder coat where jam nuts meet tubing
  • Re-torque all bolts and jam nuts after initial driving
  • Stock 16” wheels will NOT fit – check clearance on 17”+ wheels with deep backspacing

Optional Accessories:

  • Reamer Tool: Available for tapered knuckles and pitman arm
  • Boots: Optional for winter/salt protection

Stabilizer Options (Sold Separately):

  • 94–99: No single stabilizer option
  • 00–02: Single Fox Stabilizer Kit
  • 94–02: Dual Stabilizer Kit (2x Fox stabilizers, brackets, hardware)

Important Notes:

  • This is a complete engineered system – mixing/matching may cause issues
  • Stock-style track bars will NOT work with this kit
  • Track bar only orders: No support for bad geometry or poor handling

Ordering Instructions:

  1. Add desired kit to cart
  2. In checkout notes, include:
    • Year, Make, Model
    • Lift Height
    • Wheel type and spacer info

NOTE: Stock wheels require spacers. Different kits exist for early vs. late 2nd Gen trucks. Select your package and year correctly.

DISCLAIMER: Due to their race-grade design, these parts are considered off-road use only.

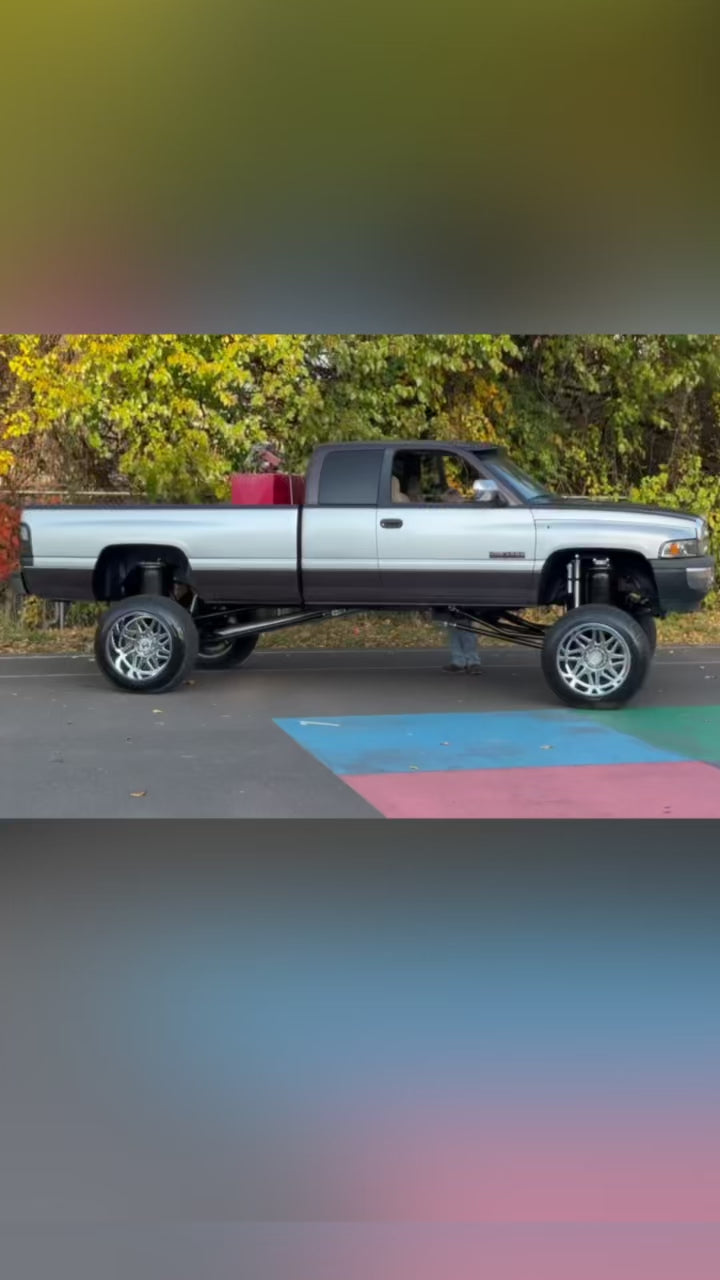

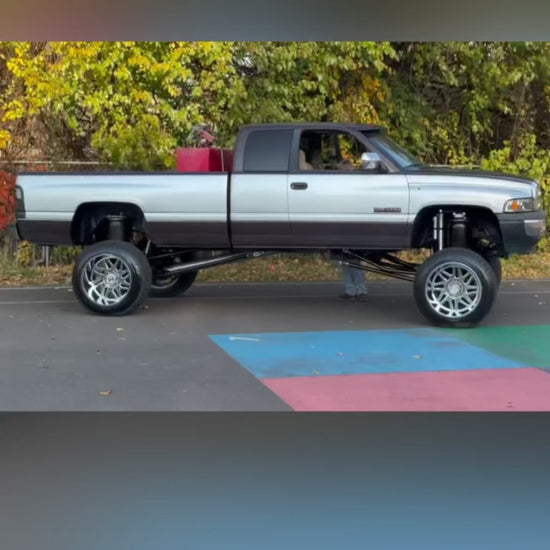

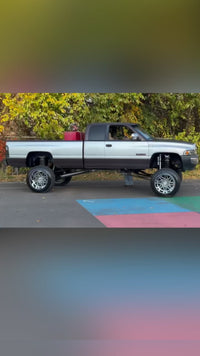

WATCH IT ON YOUTUBE – 2nd Gen Ram Long Travel Air Suspension

Note: All products are made to order. Custom-fit items may take longer to ship. For questions about shipping times, please contact us—we’re happy to help.
