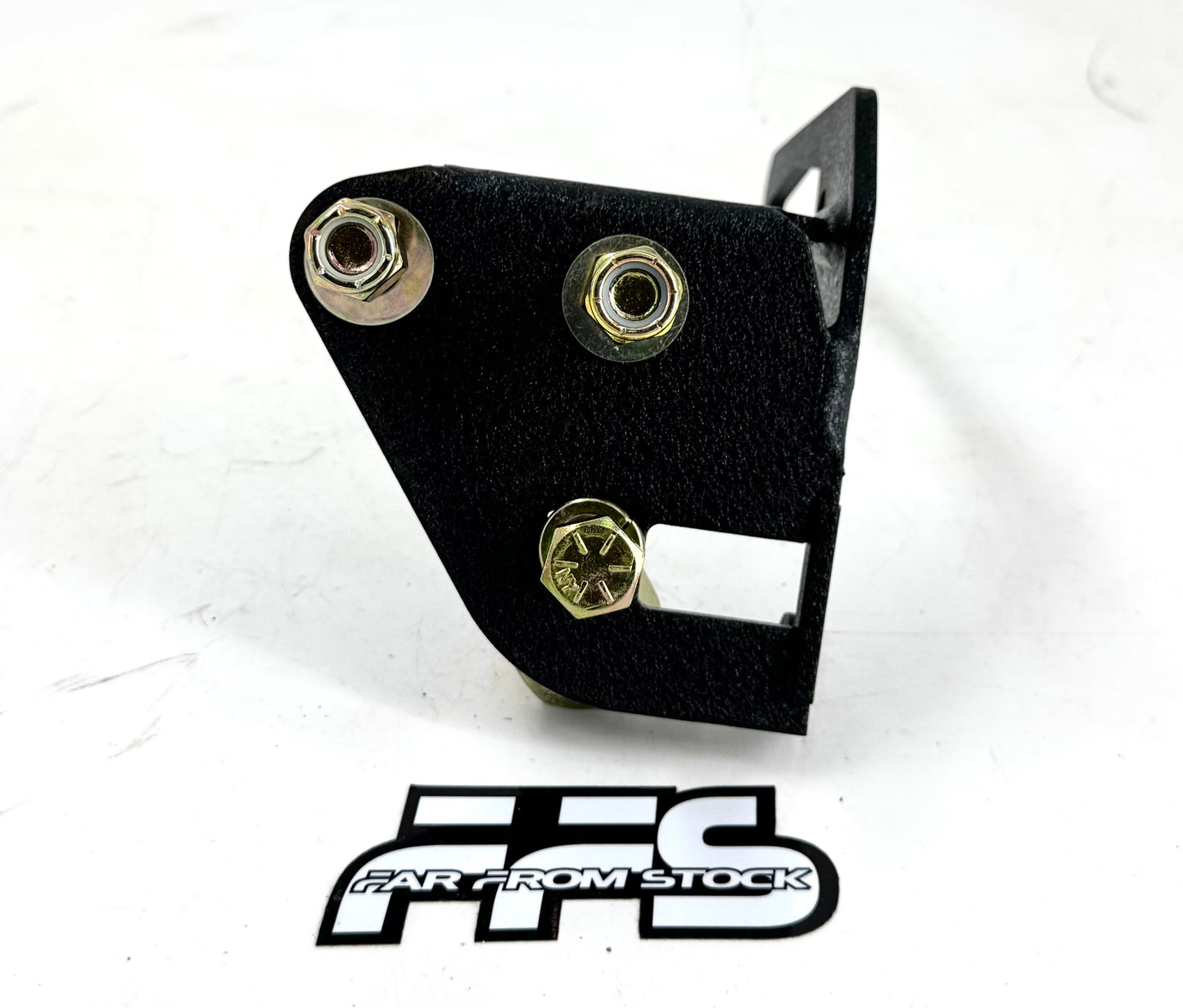

Transfer Case Shifter Mount for 47RE / 48RE Swaps (72-93 Dodge)
Transfer Case Shifter Mount for 47RE / 48RE Swaps (72-93 Dodge)
Transfer Case Shifter Mount for 47RE / 48RE Swaps
Transfer Case Shifter Mount for 47RE / 48RE swaps to retain the mount for a right-hand shifter that originally came in 1993 and prior trucks.
We use this with a few listed mods to retain a 205 transfer case and linkage. Requires some mods but easy. Also could easily start a cable shifter arrangement for a left side drop transfer case.
Bolts on the same bolts that retain the overdrive housing. Mostly a bolt-on, may require a small amount of trimming of excess case material.
Does not solve any issues with linkage length or type.
Key Specs
- Application: 47RE / 48RE transmission swaps.
- Purpose: Retains the RH shifter found in 1993 and earlier trucks.
- Transfer Case: Designed for NP205 with factory linkage; adaptable to cable shifter setups.
- Mounting: Uses overdrive housing bolts for attachment.
- Modification: Mostly bolt-on; may require minor trimming of excess case material.
- Limitations: Does not address linkage length or style.
Installation
- Remove access to the overdrive housing bolts.
- Position the bracket on the overdrive housing and test fit.
- Trim excess case material if necessary for clearance.
- Secure the bracket with the housing bolts.
- Reinstall or fabricate shifter linkage or cable setup as needed.
Basic hand tools required. May require trimming of case material.
Shop Notes
- This bracket allows you to keep the right-hand shifter in 47RE/48RE swaps.
- Does not solve linkage length or type issues.
- Ask us about FFS in-house install.
