AirDog II-5G, DF-165-5G 2004.5-2018 Dodge/RAM Cummins

AirDog II-5G, DF-165-5G 2004.5-2018 Dodge/RAM Cummins

$871.00
$871.00

Expected delivery date:
01 Jan - Custom Parts can take a bit longer, reach out to us if you need it faster. We will do our best to accommodate your build.

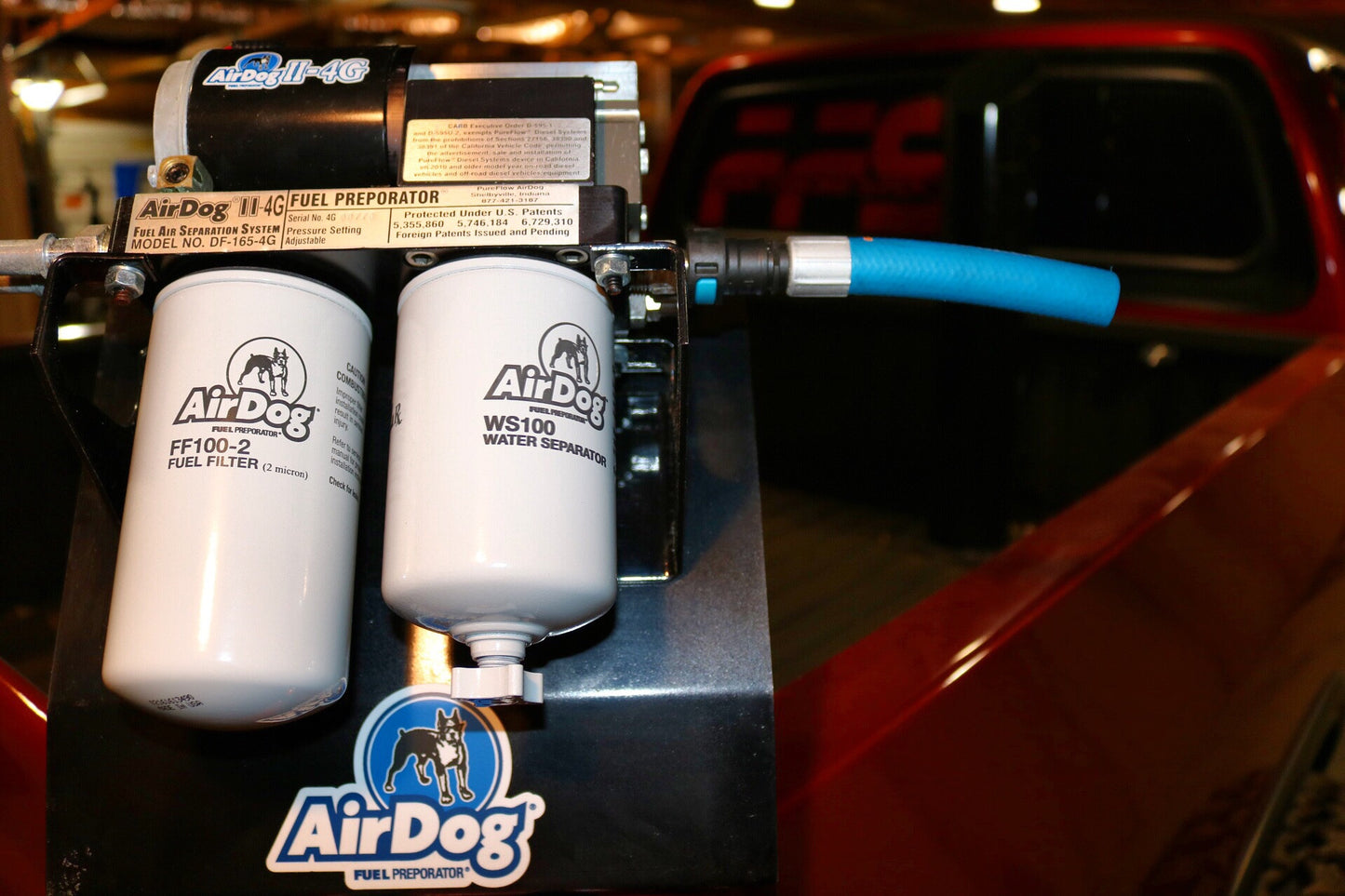

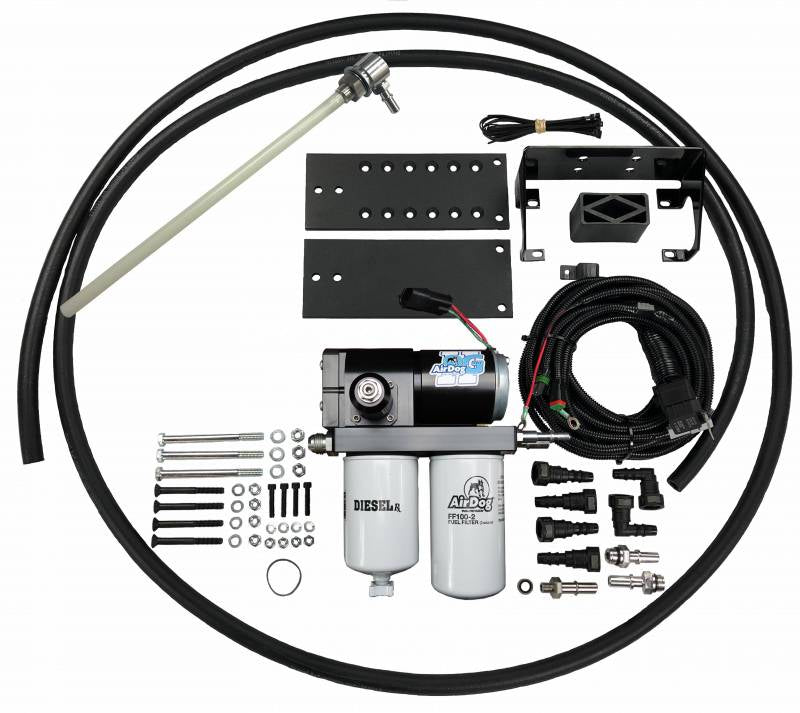

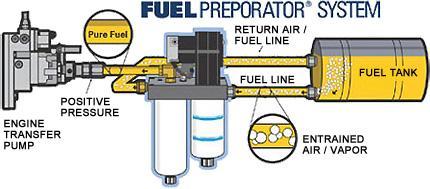

This is the AirDog II-5G DF-165-5G fuel system for the 2004.5-2018 Dodge Ram Common Rail Cummins. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system. A Fuel Module Upgrade Kit is installed in the factory fuel basket to pull fuel through a factory-style 1/2" bulkhead fitting. This will bypass the factory in-tank lift pump. The pressure side connects directly into the side of the injection pump, bypassing the factory fuel filter housing. The AirDog Air/Vapor return is sent back to the tank through the factory 3/8” suction line once the module is modified. This is a 165GPH (Gallon Per Hour) lift pump system for moderately modified trucks. Check out our installation manual for a list of parts that are included with this kit.

If the product is purchased under MAP Price, the warranty is VOID!

Air Dog Part# DF-165-4G

A7SABD526

need a fuel pump block off plate? Click here

Note: All products are made to order. Custom-fit items may take longer to ship. For questions about shipping times, please contact us—we’re happy to help.
