03-current FFS Brand Heavy Duty Traction Bar Kit
These parts are to build a hardcore, heavy duty, no rattle and good looking traction bar set for your 03-current leaf spring Ram truck. (Built to match our radius long arm for the 03-13) We’ve seen all kinds of weak and undersized parts and ugly brackets, this is not that kit. Tubing available in 4’, 5’ or 6’ for cut to length perfect fit. 5 feet covers most installs. Pre made link options available below. The best of the best monster 2” 1/4 wall d.o.m tube.
If you have had problems with the rear axle wandering and wheel hopping under the heavy torque. Be it in the sand, dirt, or putting down a thick smokey burnout on pavement, this kit is a solution for you. It features a pair of arms that firmly locate your axle, and help you keep your tires firmly planted. This will let you put all the traction you have to the ground without giving up any suspension travel or ground clearance.

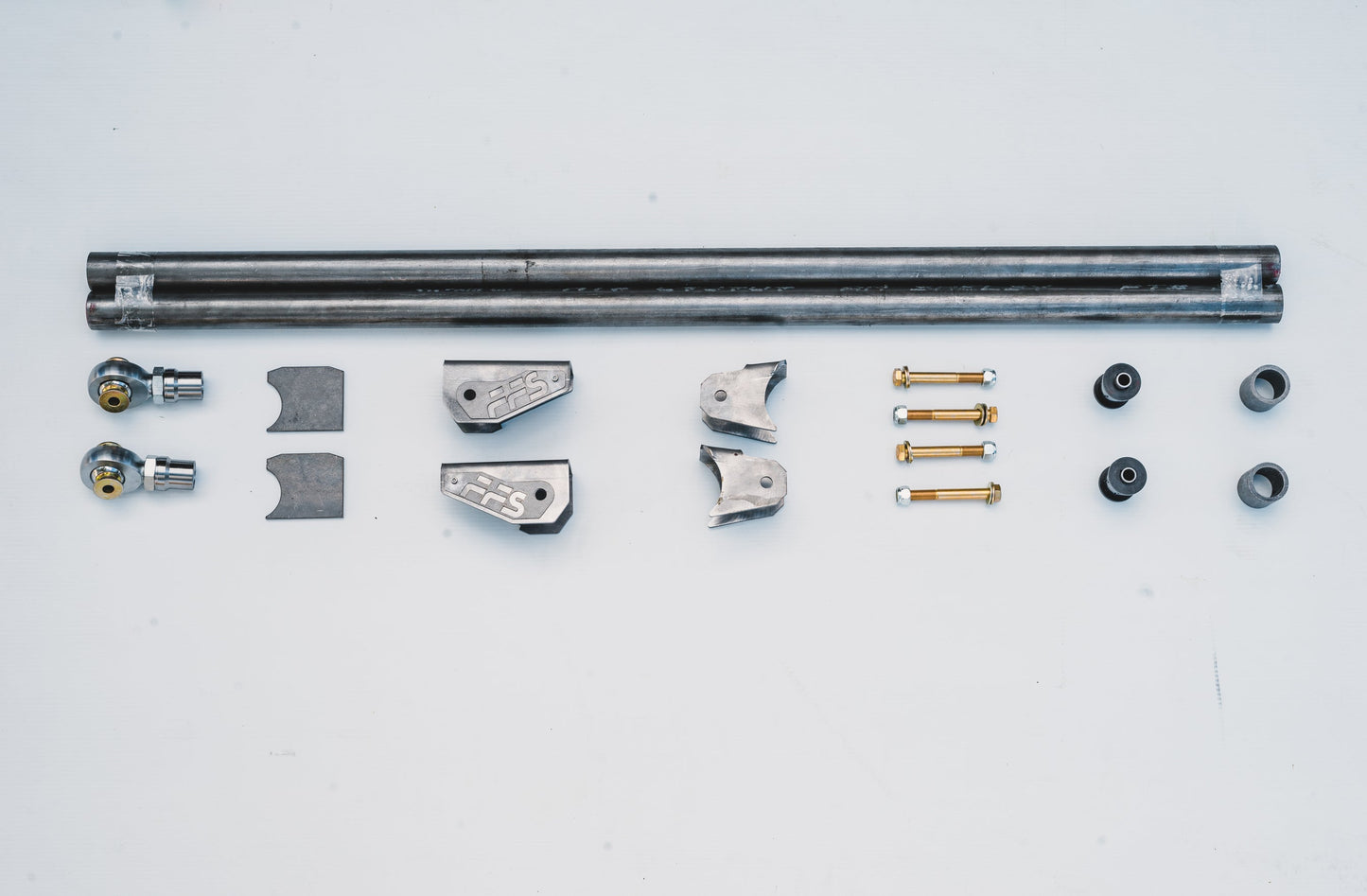

KIT INCLUDES: (click for separate availability)

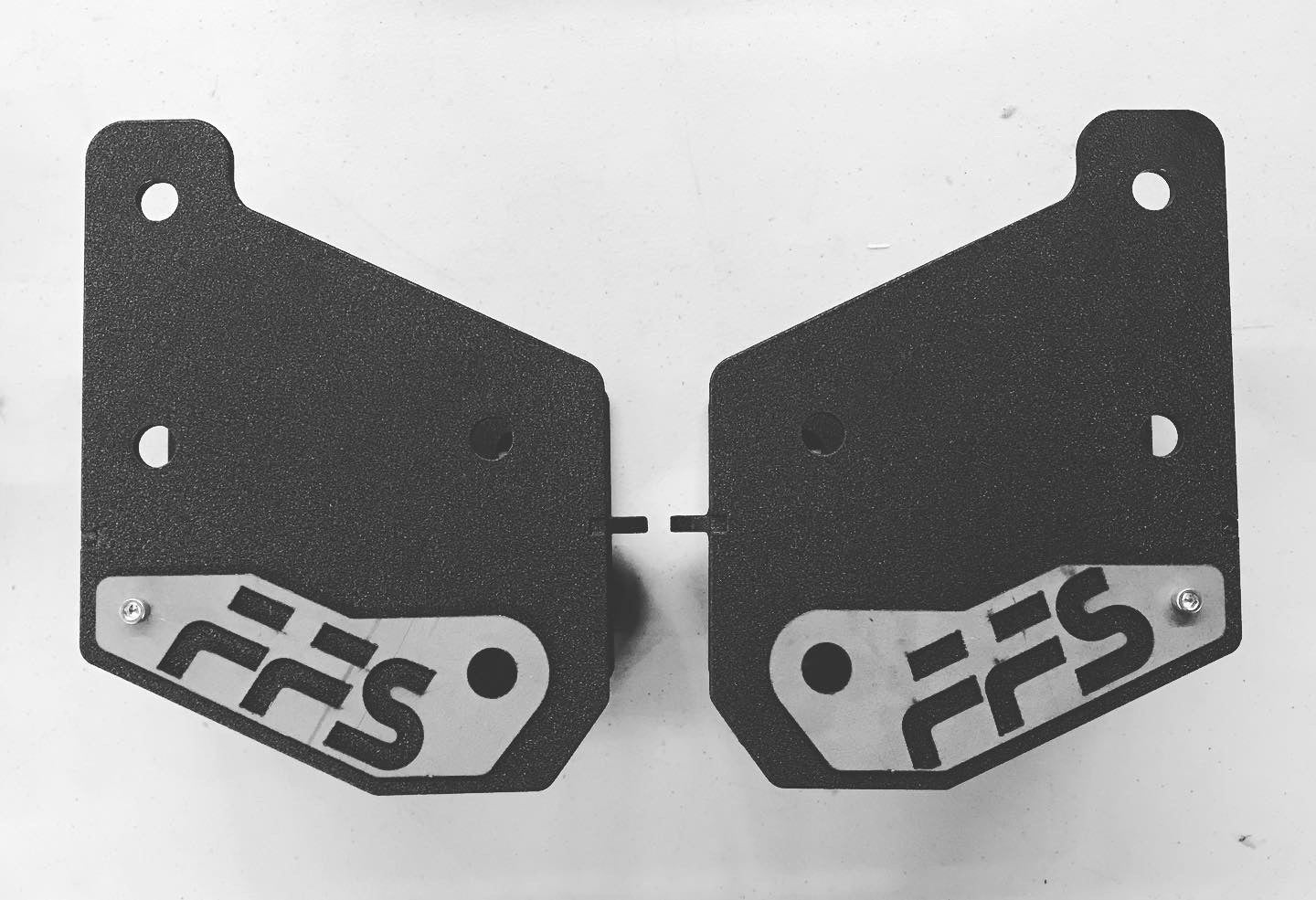

(1) Pair of our bolt on FFS overlay badge frame brackets

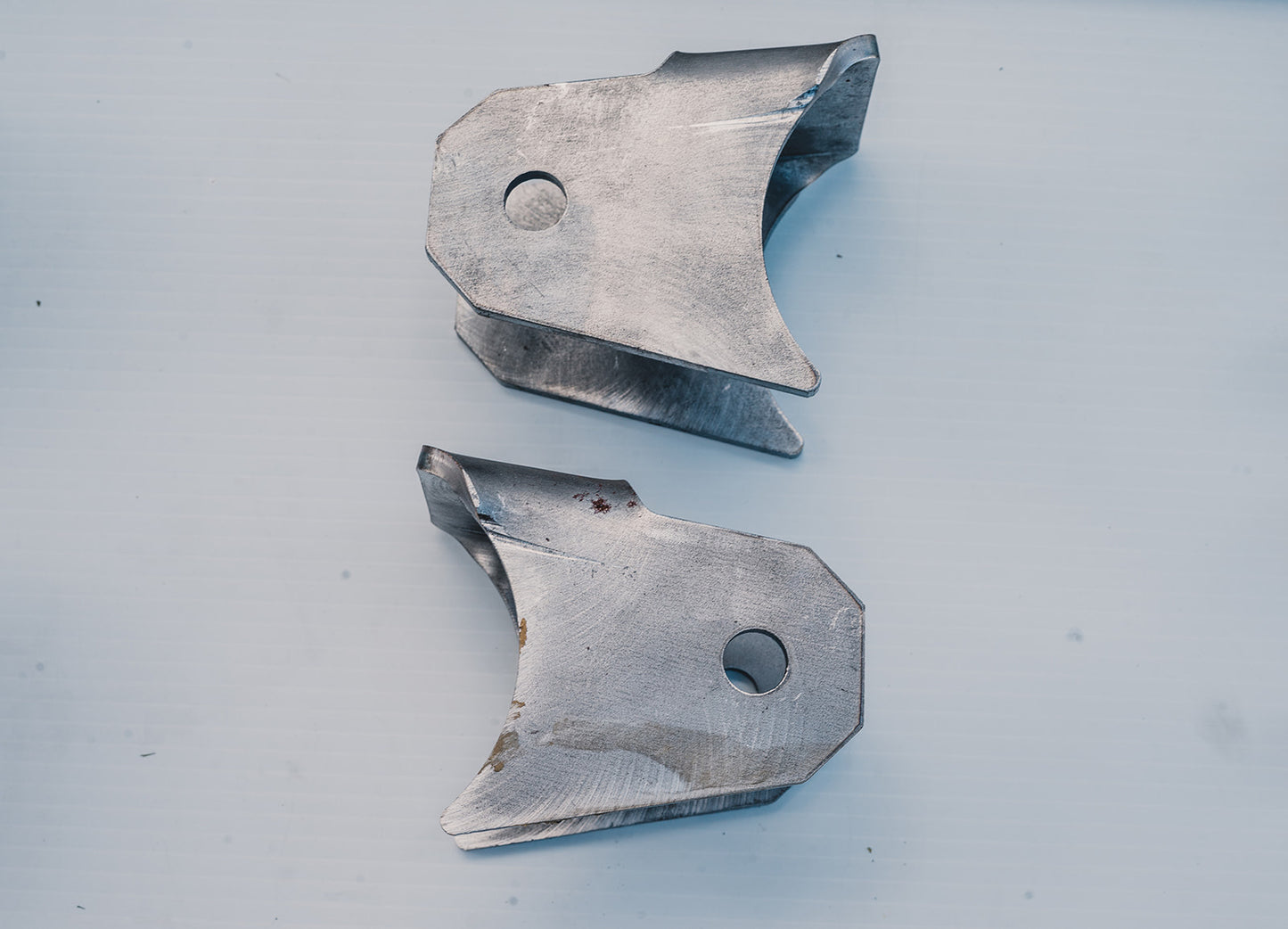

(1) Pair of our FFS 4” diameter axle mount brackets

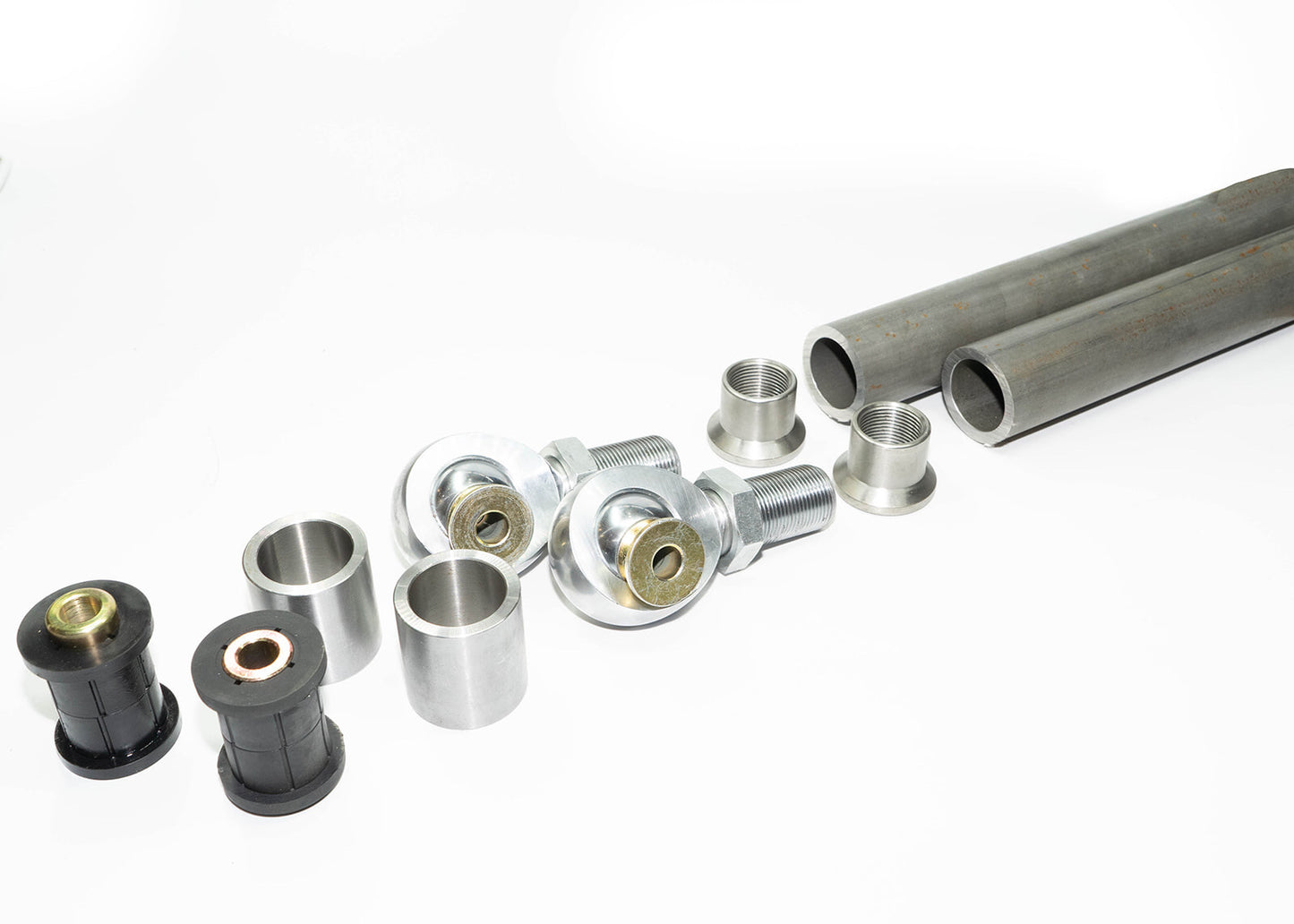

(2) Bushed DOM sleeves 2-5/8" wide for 9/16" bolt
(2) 1.25" Heat/Cryo treated Heim joints with misalignment spacers for 9/16" bolts
(4) 9/16" x 4.5" Grade 8 fine thread bolt sets
(2) sticks of 2” .250 wall dom tube in chosen length.
These are also available in pre welded finished links. The axle brackets will still need to be welded to the rear axle.
We can provide a standard black wrinkle powder or custom color upon request.
If you are local we can complete the install here at the shop.
If you need further instructions on installation check out our Youtube INSTRUCTIONAL VIDEO
Installation partially assisted by Tap Flex Structural Fastener Thread Forming Bolt.
*Meets Grade 5 ASTM A449 strength and ductility standards.
*Drill Size 15/32
*Seating Torque 75 ft/lbs
In 1/8” Steel;
Shear strength 4773 lbs
Thread pull-out strength 3668 lbs (doubles with another 1/16” of material thickness)
