1.25 Rod End Set (Loaded)

1.25 Rod End Set (Loaded)

$164.43
$164.43 $0.00

Expected delivery date:
29 Dec - Custom Parts can take a bit longer, reach out to us if you need it faster. We will do our best to accommodate your build.

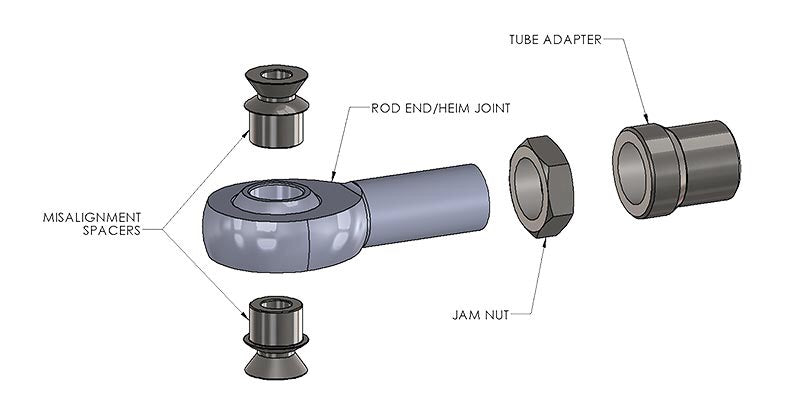

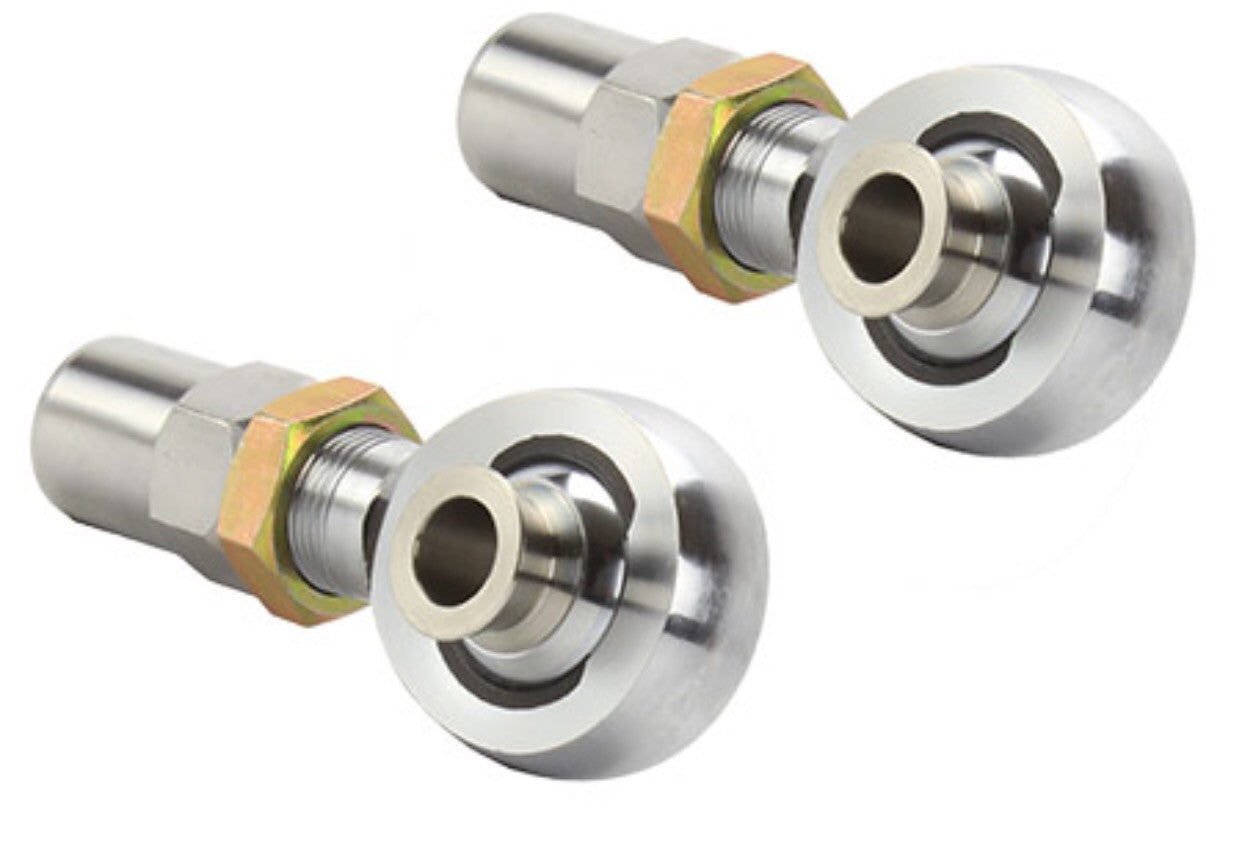

This is it, a pair of FFS 1.25” Heat Treated Chromoly Rod Ends with all the trimmings! You get two 1.25" Heims with a 1" through bore, 4 zinc plated misalignment spacers with 9/16 bore and 30 degrees of misalignment, a pair of zinc plated jam nuts and the pair of weld in tube adapters to go with them. All for one great price!

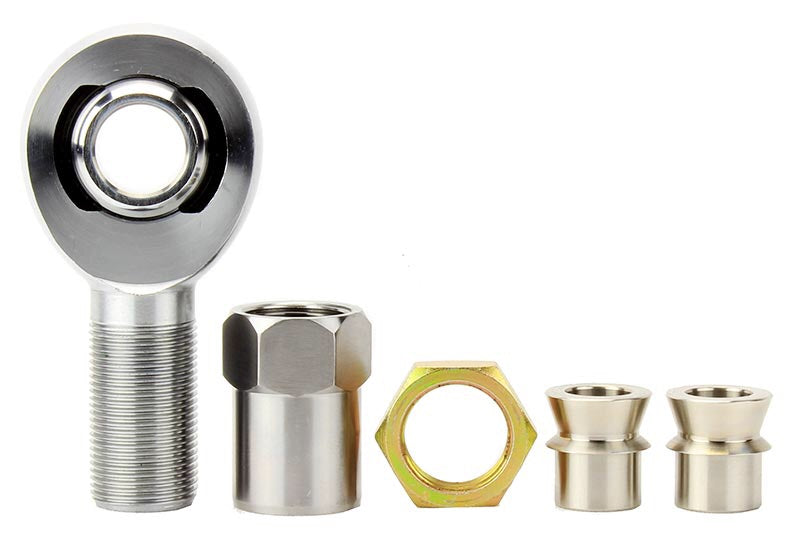

KIT INCLUDES:
2--1 1/4" (1- Left Handed 1- Right Handed Heat Treated Chromoly Heims)
2--1 1/4" Tube Adapters (1.5" Tube ID)
2--1 1/4" Jam Nuts
4--9/16" Misalignment Spacers (For 2 5/8" ID Brackets)



 *Tips to help prevent any seized or warped threads:
Correctly adjust welder settings and start your puddle on the tube. (Too much heat will warp the threads)
Do not weld the tube adapter with the rod end threaded inside. (The two pieces cool at different rates and will lock them together)
Wait until everything has completely cooled before threading your rod ends into the adapters



Note: All products are made to order. Custom-fit items may take longer to ship. For questions about shipping times, please contact us—we’re happy to help.
