72-93 Dodge Truck 4wd Coil over Front/ Rear Air 6” Suspension Kit 1G Axles


Front 72-93 Coilover full 4 link kit 6” lift in wrinkle black

2.5 radflo Coilover with or without reservoir
$1265.00  with coils  7/8 shaft Install Link Here for RadFlo

Rear air 6” lift self leveling full 4 link kit in wrinkle black
(Plus longer air springs for 6”)
Radflo emulsion 2.0 shocks with reservoir
$265 each (pair needed)


I can also throw in a tank mount that will allow easy mounting of the tank in the rear spare tire area at no cost.

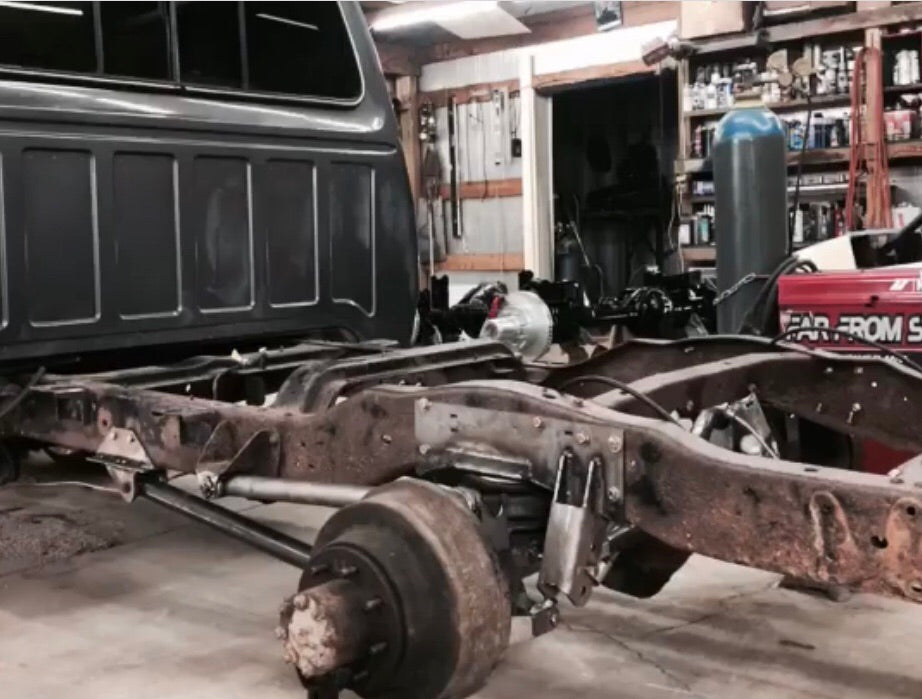

 This Air suspension Kit will fit on your dodge 4wd, and dually first gen ram!!! Rides smooth, adjustable height, and is able to be slightly modified for your particular tire/wheel combo. This kit includes everything you need to link and locate the axle under your 72-93 truck or ramcharger. Bolt on to all frame locations and axle weld on, but everything on the axle is able to be located off-site if you need to have a shop do the welding, easy project. Specifically setup for and instructions for a dana 70 but could be made to work with any available axle from a 9-1/4 1/2 ton or dana 60 to a second gen rear 70.


upper and lower links,

track bar,

bolt on (some drilling) frame bag mounts with integrated track bar bracket,

bolt on (drill) lower link frame brackets and inserts to utilize your original front spring hanger as the upper link mounts,

axle (weld on) bracket set that includes integrated shock mounts, (link here)

axle (weld on) track bar bracket and lower bag brackets,

Air bags,



 Air management system, several options available, but system will work will just tire fill valves installed into the bags, they hold air as long as a tire does.

Ideal for a 32" tire Setup.

8" of travel, lowers to the tires at the fender opening.
